Wiring Diagram - AT - MAIN

WARNING: This page is about a different variant/trim than selected.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

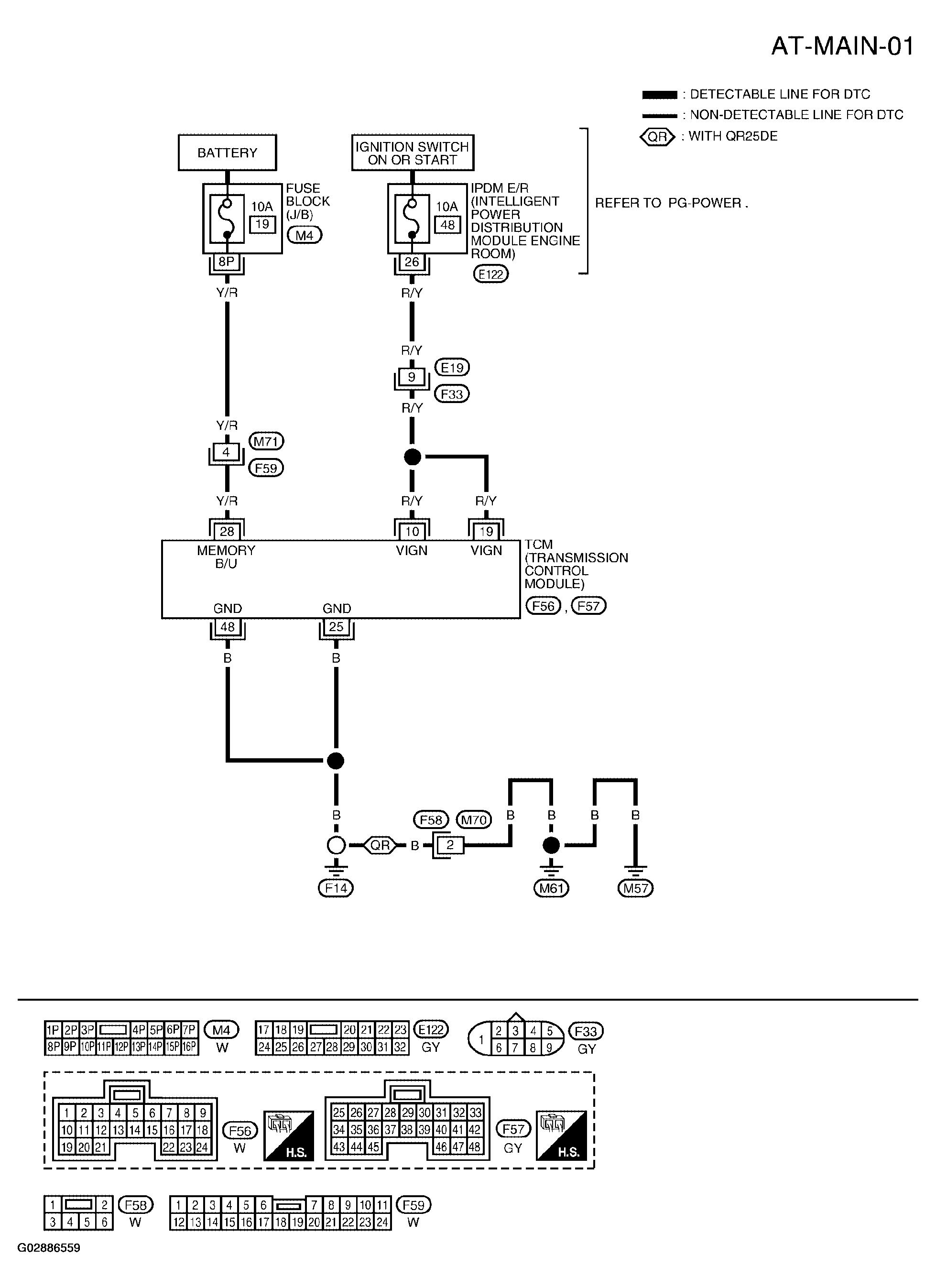

Fig 1: CAN Communication Wiring Diagram - AT - Main - AT-MAIN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

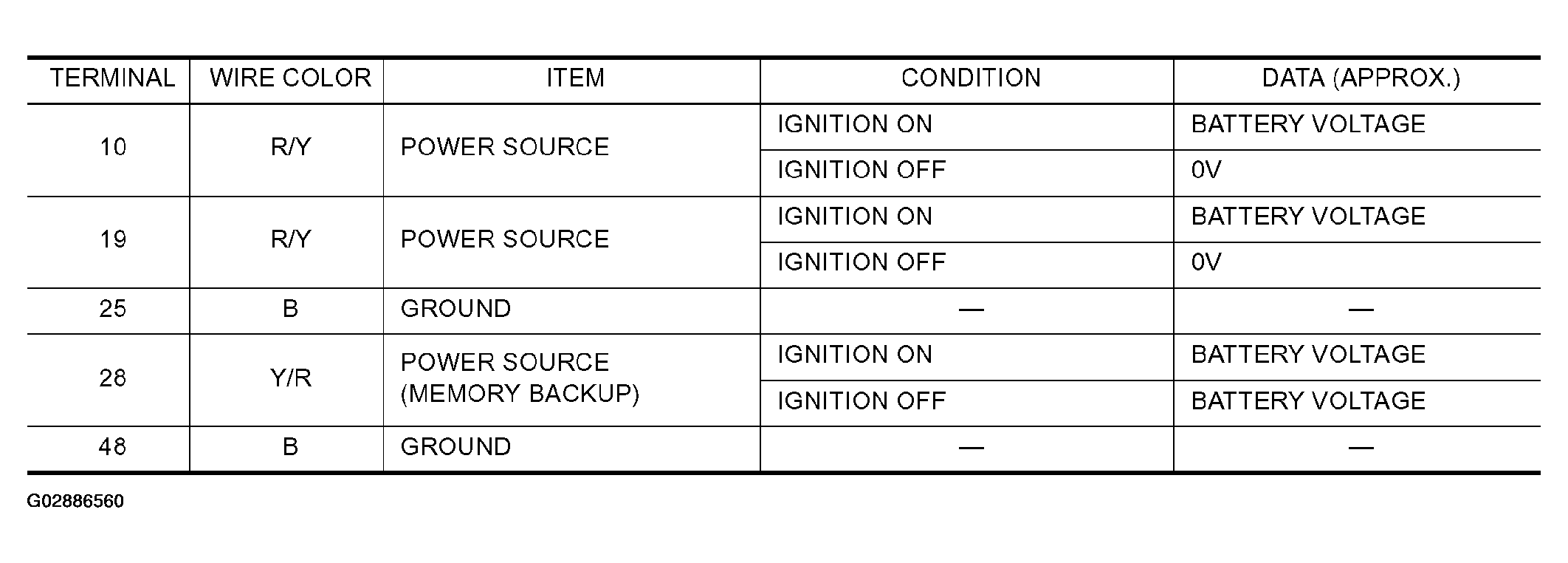

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)

Fig 2: Terminal Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
