Diagnostic Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK TCM POWER SOURCE STEP 1

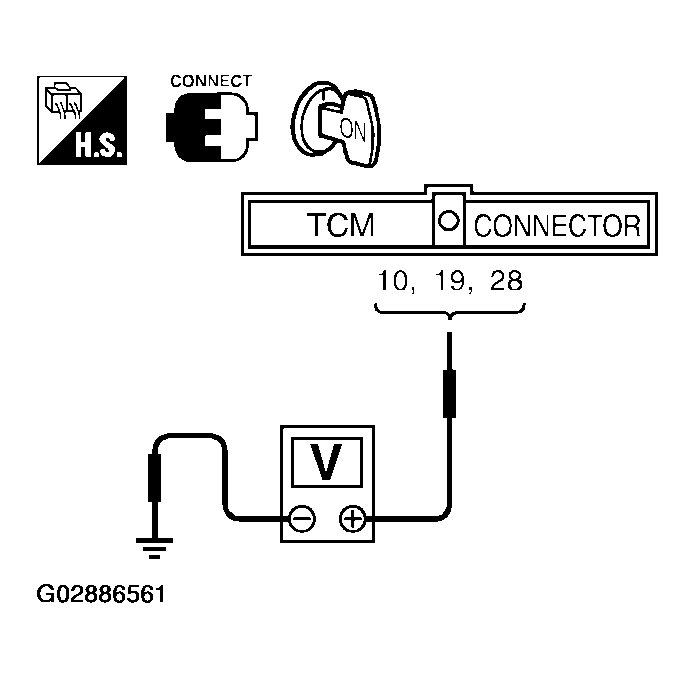

- Turn ignition switch to ON position.
(Do not start engine.)
- Check voltage between TCM terminals 10, 19, 28 and ground.
Voltage: Battery voltage
OK or NG
- OK: GO TO 2.
- NG: GO TO 3.
- Turn ignition switch to ON position.
- CHECK TCM POWER SOURCE STEP 2

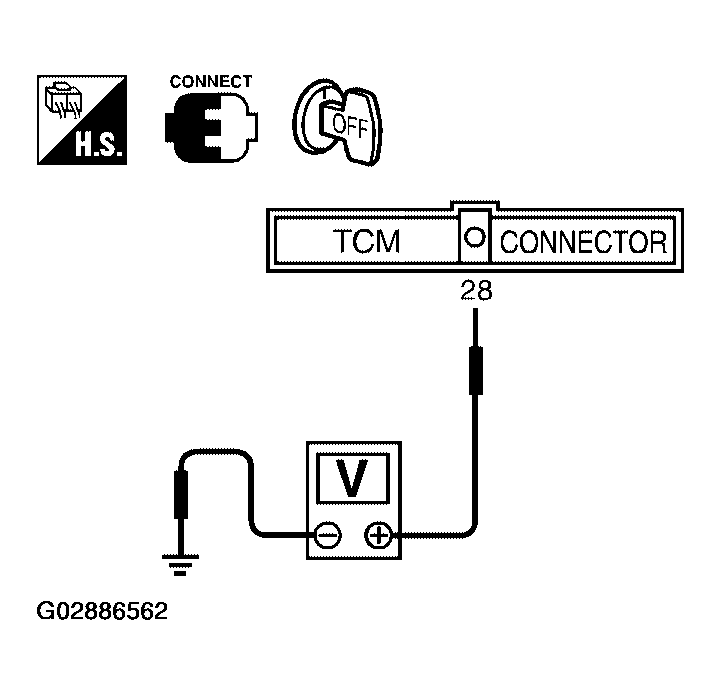

- Turn ignition switch to OFF position.
- Check voltage between TCM terminal 28 (Y/R) and ground.
Voltage: Battery voltage
OK or NG
- OK: GO TO 4.
- NG: GO TO 3.
- DETECT MALFUNCTIONING ITEM
Check the following items:
- Harness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)
- Fuse
- Ignition switch
Refer to "POWER SUPPLY ROUTING CIRCUIT ".
OK or NG
- OK: GO TO 4.
- NG: Repair or replace damaged parts.
- CHECK TCM GROUND CIRCUIT
- Turn ignition switch to OFF position.
Disconnect TCM harness connector.
- Check continuity between TCM terminals 25, 48 and ground. Refer to "WIRING DIAGRAM - AT - MAIN - AT-MAIN-01 ".
Continuity should exist.
OK or NG
- OK: INSPECTION END
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
- Turn ignition switch to OFF position.
