DTC Work Support Mode With Consult-II

CONSULT-II Setting Procedure

1. Turn ignition switch OFF.
2. Connect CONSULT-II to Data link connector, which is located in left side dash panel.

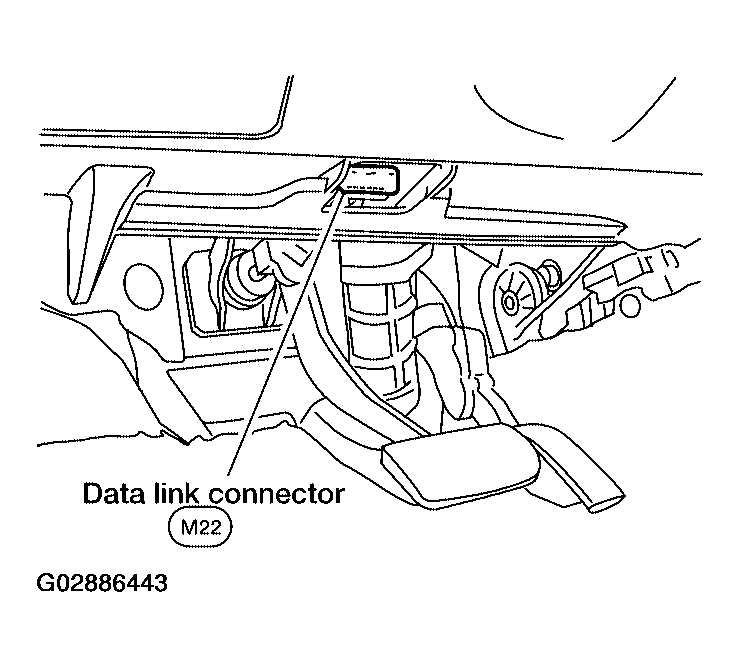

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON. (Do not start engine)
4. Touch "START (NISSAN BASED VHCL)"

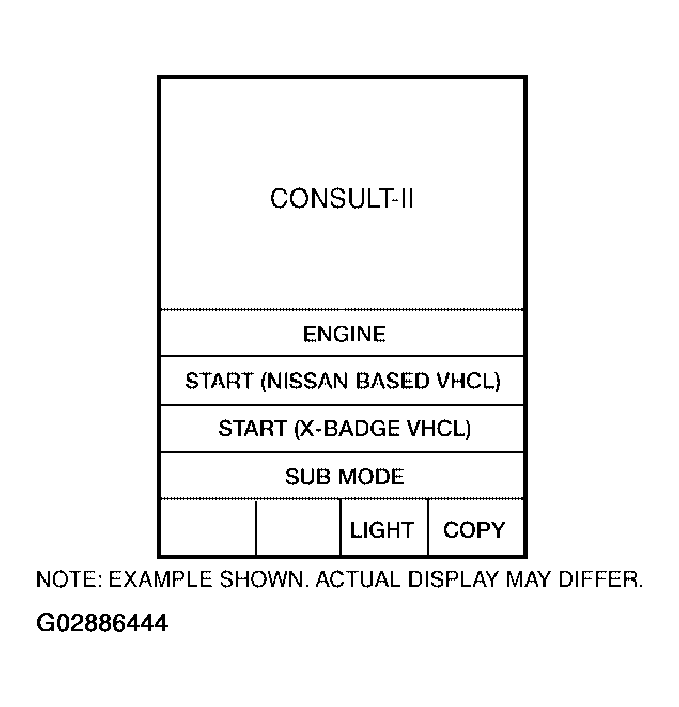

   Fig 2: Scan Tool Display "Consult II"

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "A/T".

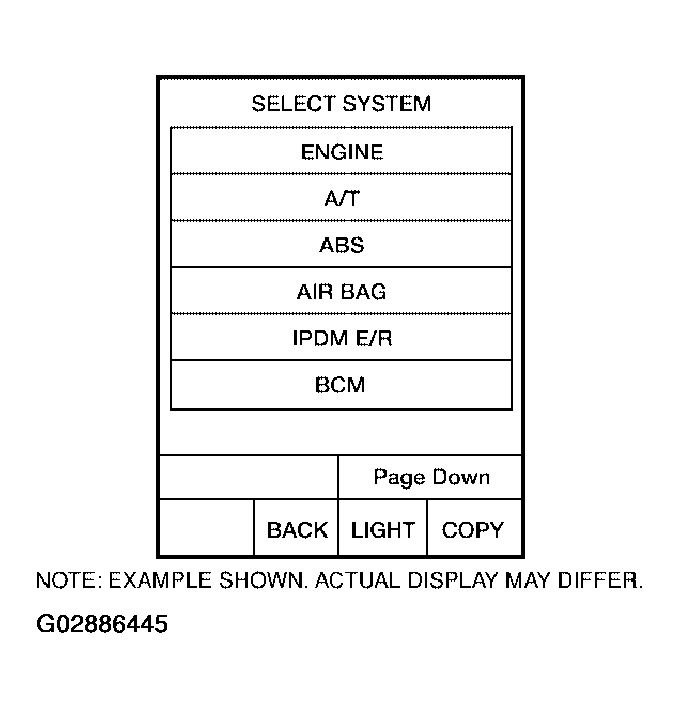

   Fig 3: Scan Tool Display "Select System"

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Touch "DTC WORK SUPPORT".

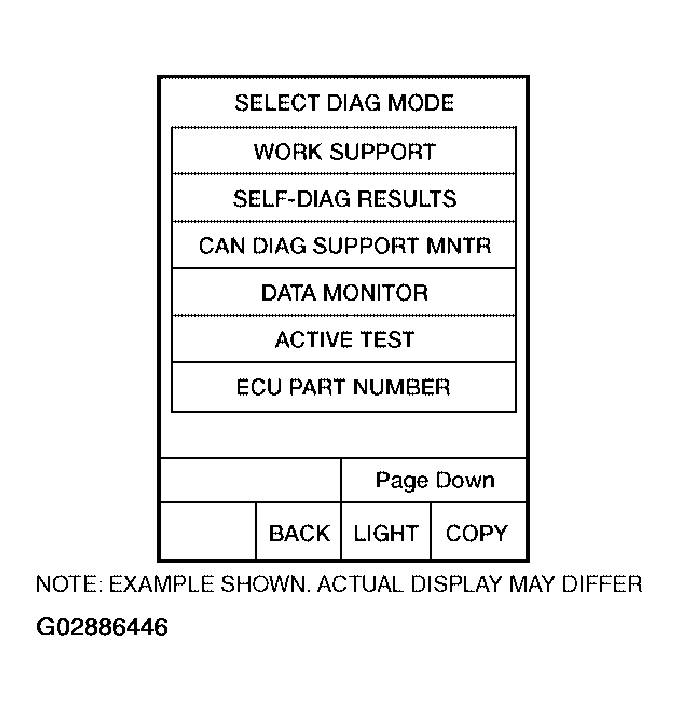

   Fig 4: Scan Tool Display "Select Diag Mode"

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Touch select item menu (1ST, 2ND, etc.).

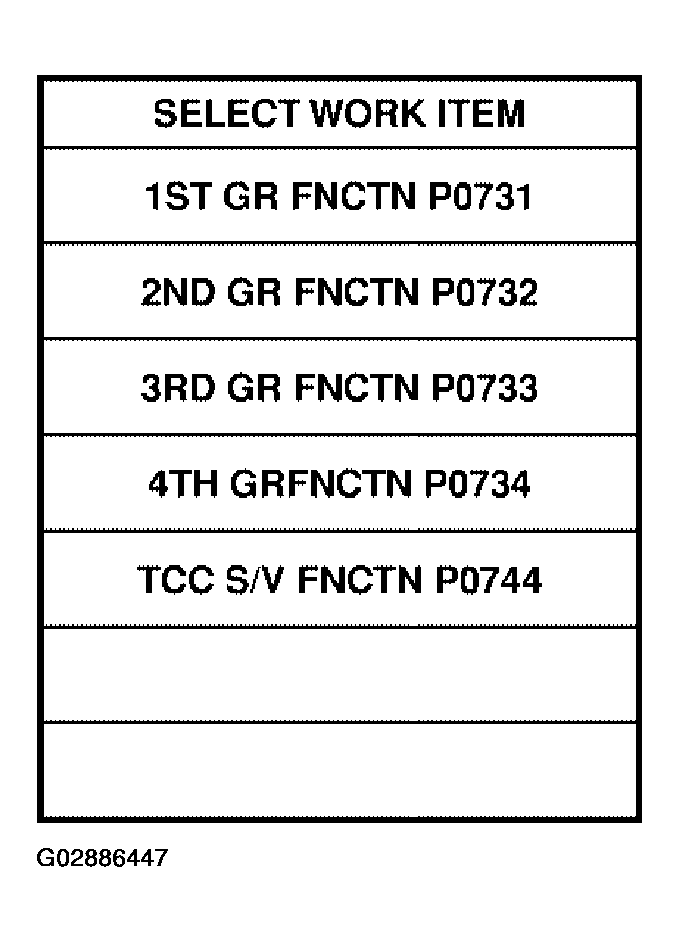

   Fig 5: Scan Tool Display "Select Work Item"

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Touch "START"

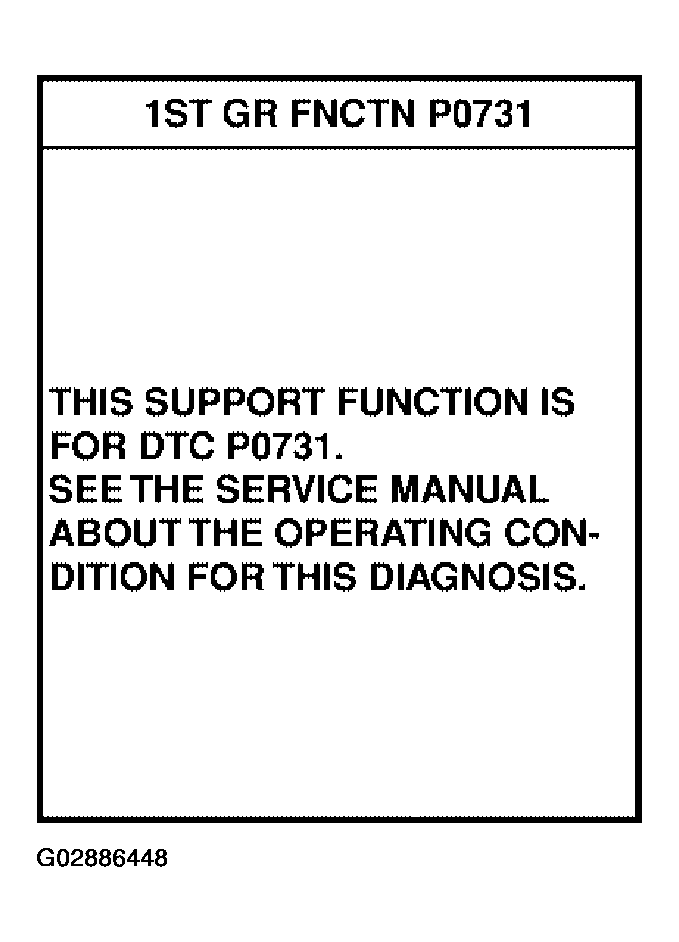

   Fig 6: Scan Tool Display "1St GR Function"

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

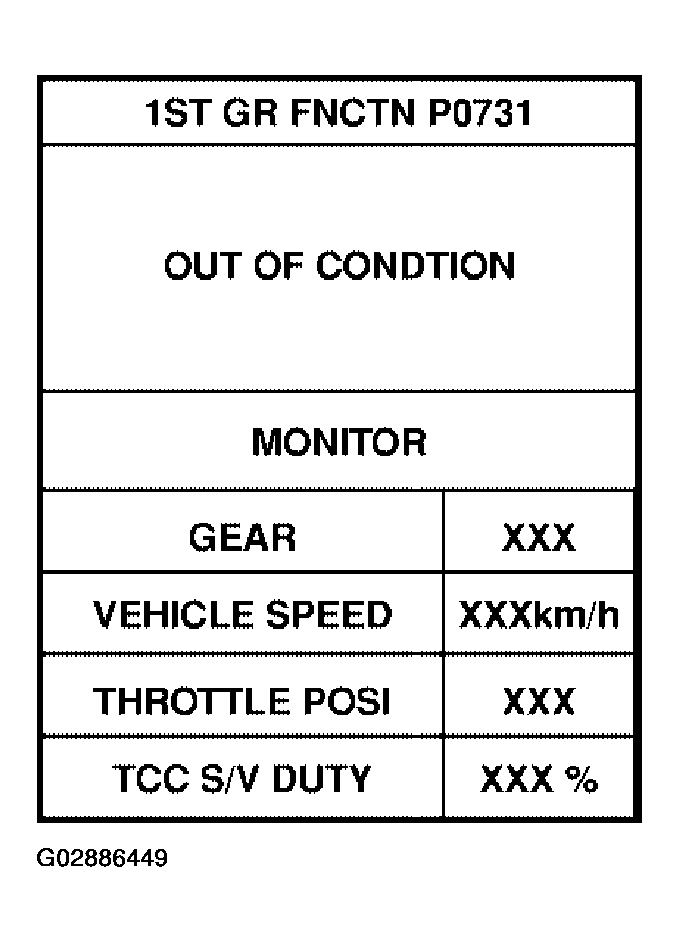

   Fig 7: Scan Tool Display "1St GR Function Out Of Condition"

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

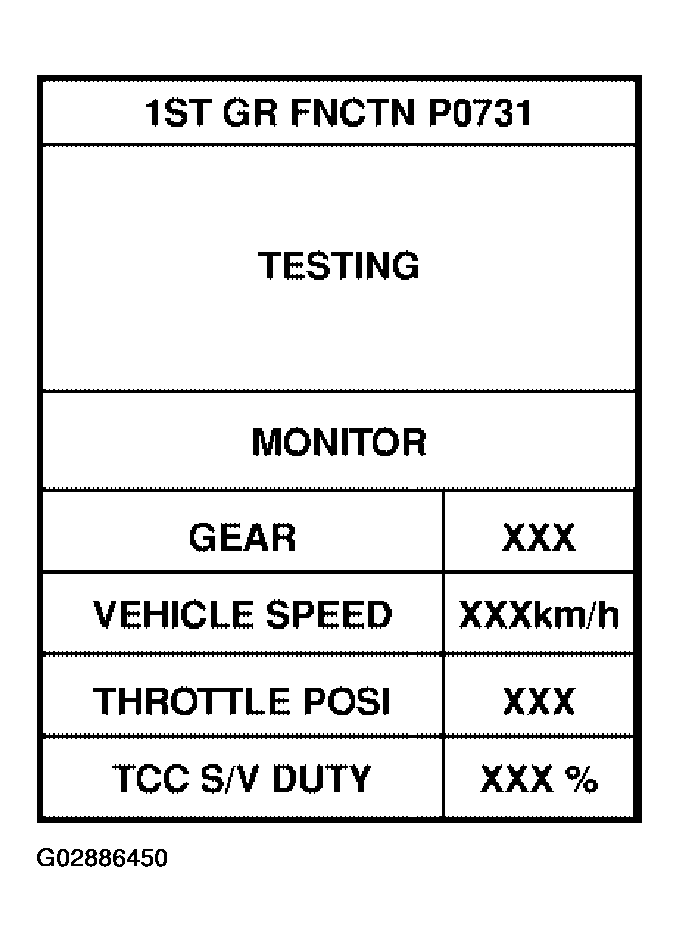

     Fig 8: Scan Tool Display "1St GR Function Testing"

     Courtesy of NISSAN MOTOR CO., U.S.A.
10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

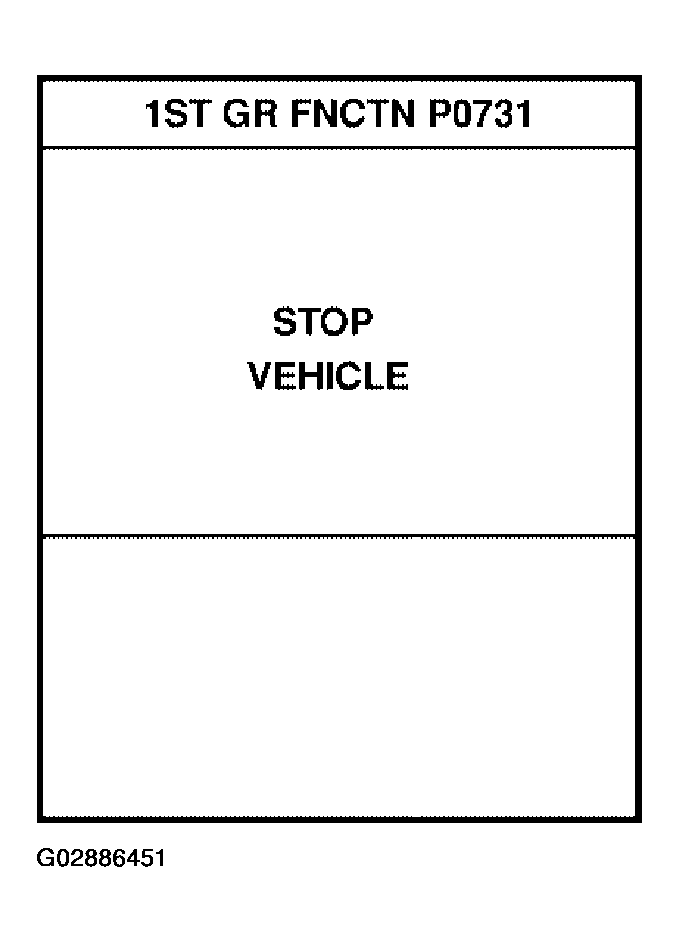

    Fig 9: Scan Tool Display "1St GR Function Stop Vehicle"

    Courtesy of NISSAN MOTOR CO., U.S.A.

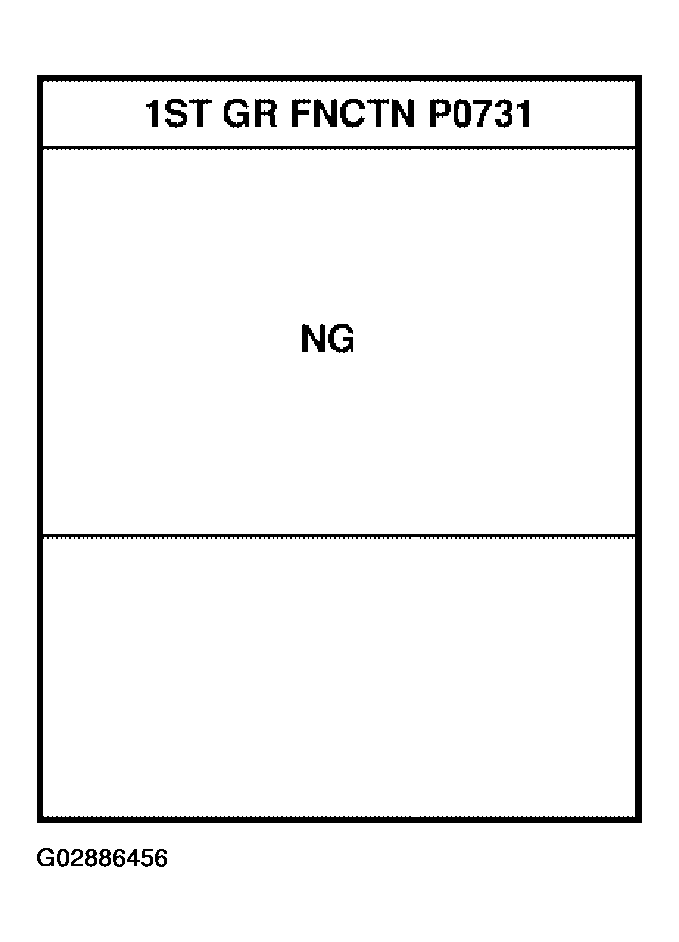

    Fig 10: Scan Tool Display "1St GR Function NG"

    Courtesy of NISSAN MOTOR CO., U.S.A.
11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

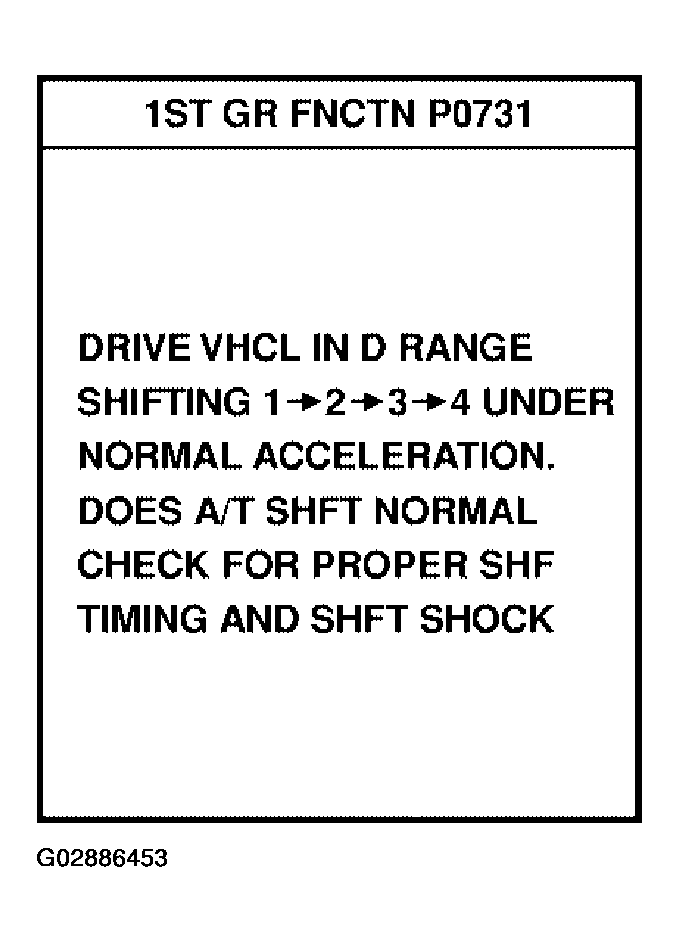

    Fig 11: Scan Tool Display "1St GR Function Procedures 1Of 2"

    Courtesy of NISSAN MOTOR CO., U.S.A.
12. Touch "YES" or "NO".
    Fig 12: Scan Tool Display "1St GR Function Procedures 2 Of 2"

    Courtesy of NISSAN MOTOR CO., U.S.A.
13. CONSULT-II procedure ended.

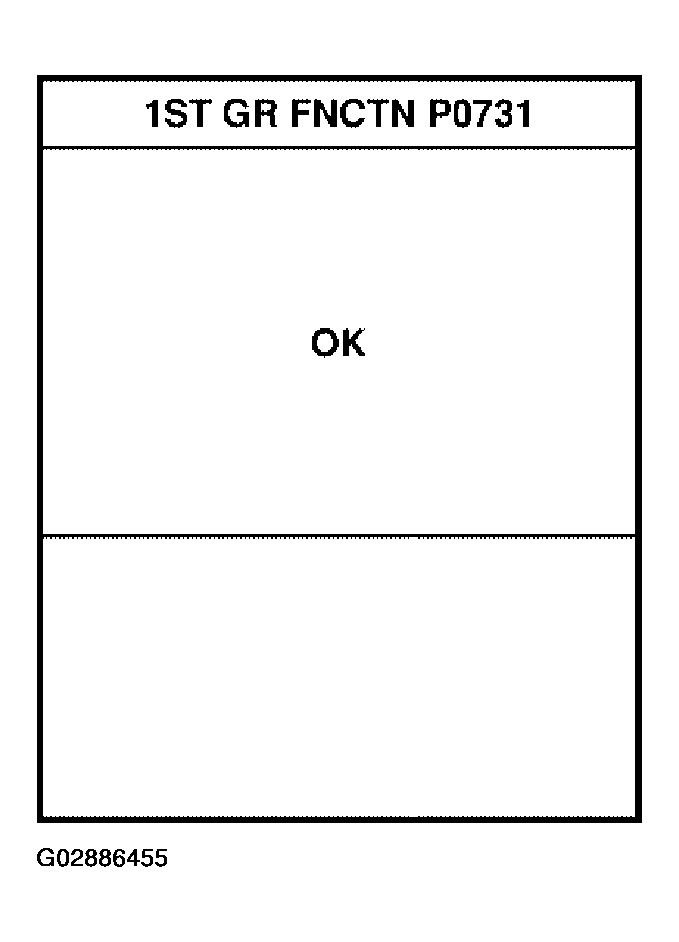

    Fig 13: Scan Tool Display "1St GR Function OK"

    Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: Scan Tool Display "1St GR Function NG"

    Courtesy of NISSAN MOTOR CO., U.S.A.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".
