Without Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in D and vehicle speed higher than 25 km/h (16 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

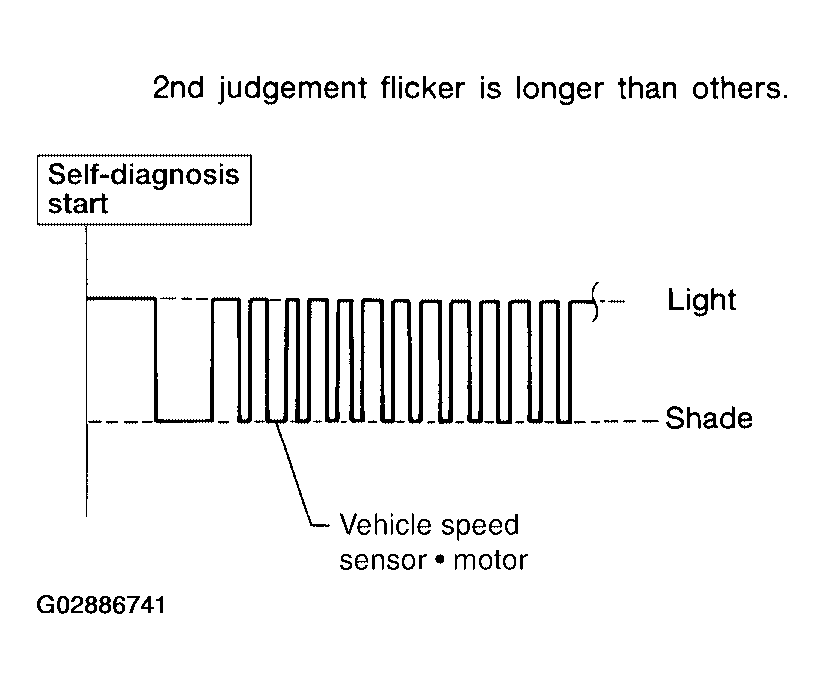

    Fig 1: Displaying Self-Diagnosis Start
    G02886741Courtesy of NISSAN MOTOR CO., U.S.A.
