Without Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch "ON".
  2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
  3. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

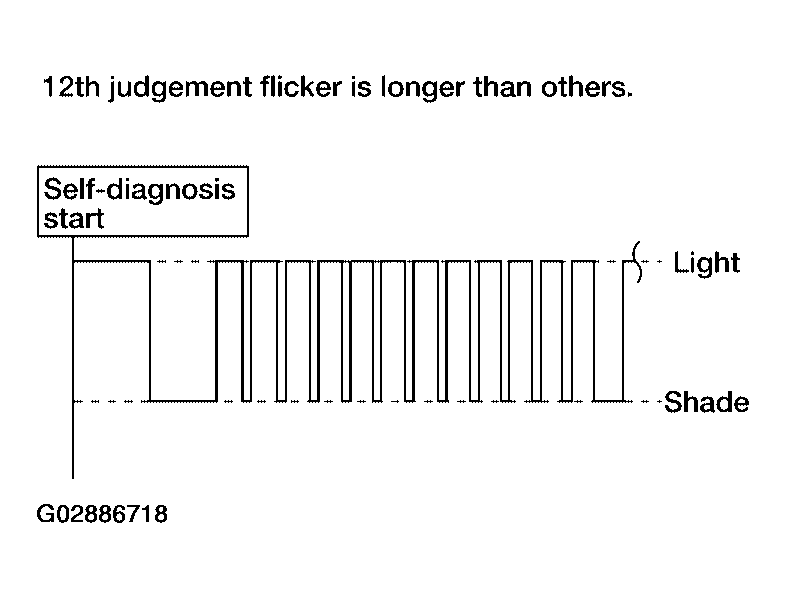

    Fig 1: Self-Diagnosis Procedure (No Tools)
    G02886718Courtesy of NISSAN MOTOR CO., U.S.A.
