Without CONSULT-II

WARNING: This page is about a different variant/trim than selected.

Start engine.
Drive vehicle under the following conditions:
Selector lever in "D" and vehicle speed higher than 40 km/h (25 MPH), engine speed higher than 1, 500 RPM, throttle opening greater than 1/8 of the full throttle position and driving for more than 5 seconds.

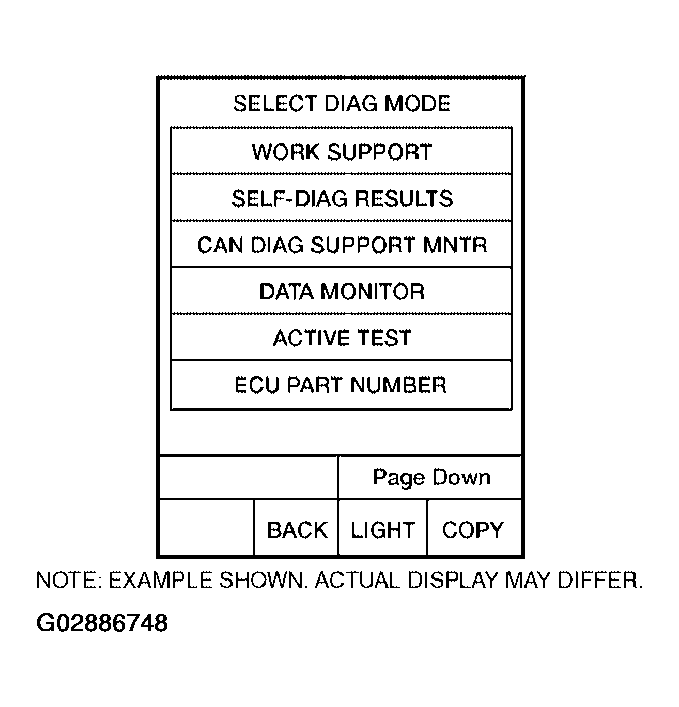

Fig 1: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform self-diagnosis.
Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

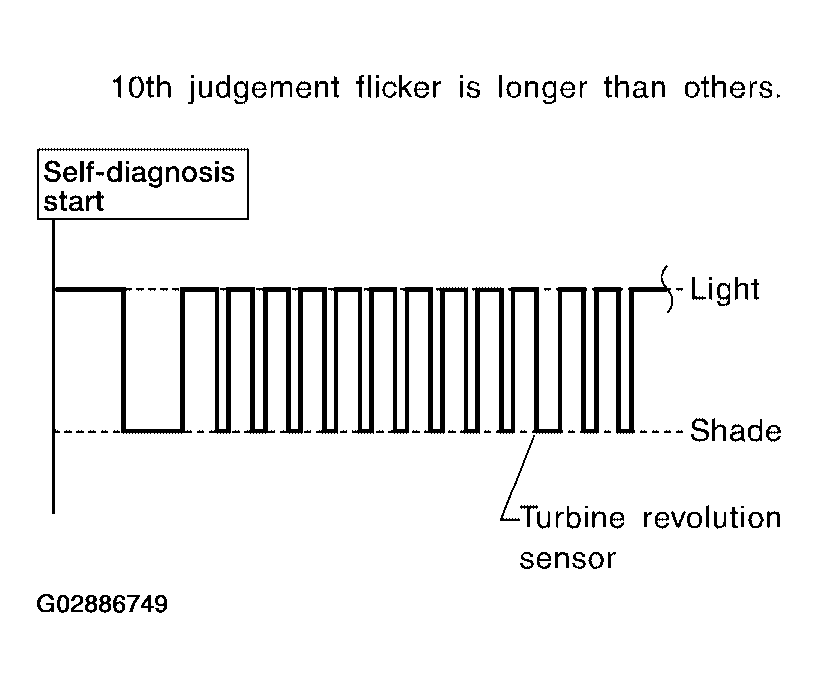

Fig 2: Turbine Resolution Sensor Diagnosis Confirmation
Courtesy of NISSAN MOTOR CO., U.S.A.
