Output Shaft End Play

WARNING: This page is about a different variant/trim than selected.

Measure clearance between side cover and the end of the output shaft bearing.
Select proper thickness of adjusting shim so that clearance is within specifications.

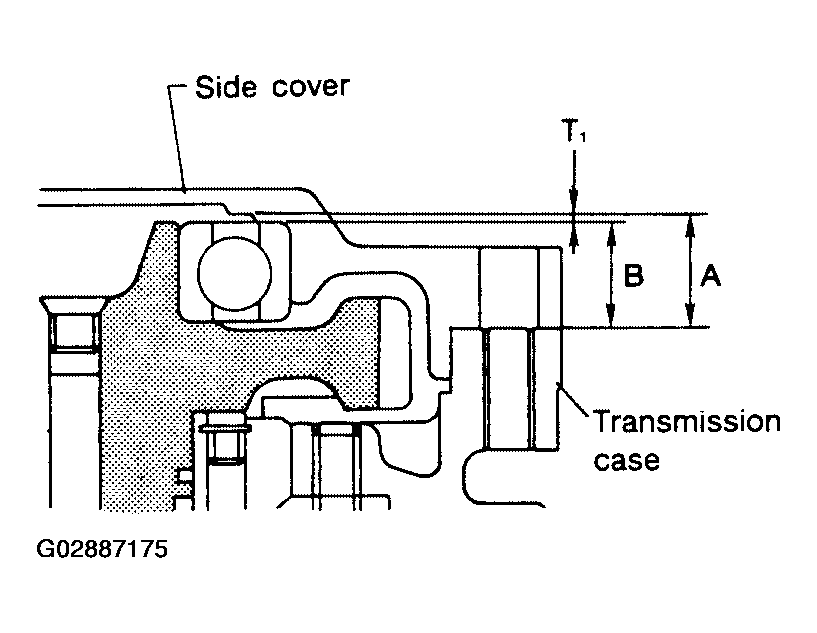

Fig 1: Measuring Clearance Between Side Cover & Output Shaft Bearing End
Courtesy of NISSAN MOTOR CO., U.S.A.

Install bearing retainer for output shaft.

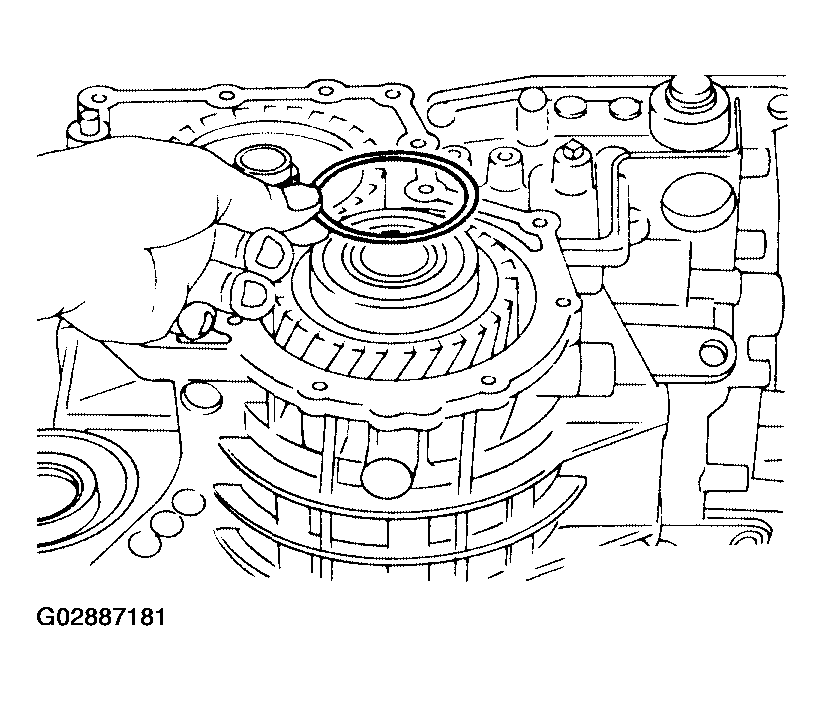

Fig 2: Installing Bearing Retainer For Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install output shaft thrust needle bearing on bearing retainer.

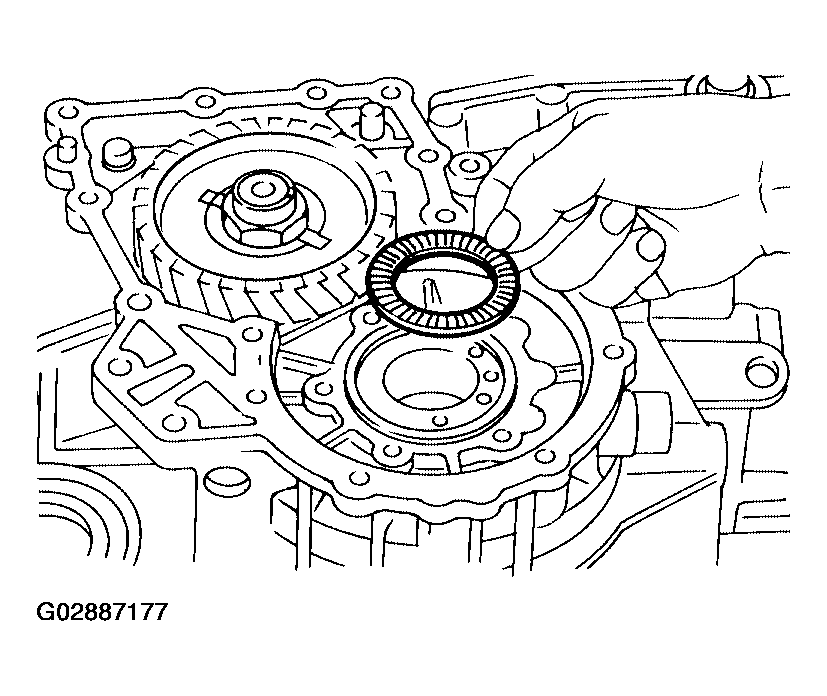

Fig 3: Installing Output Shaft Thrust Needle Bearing On Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

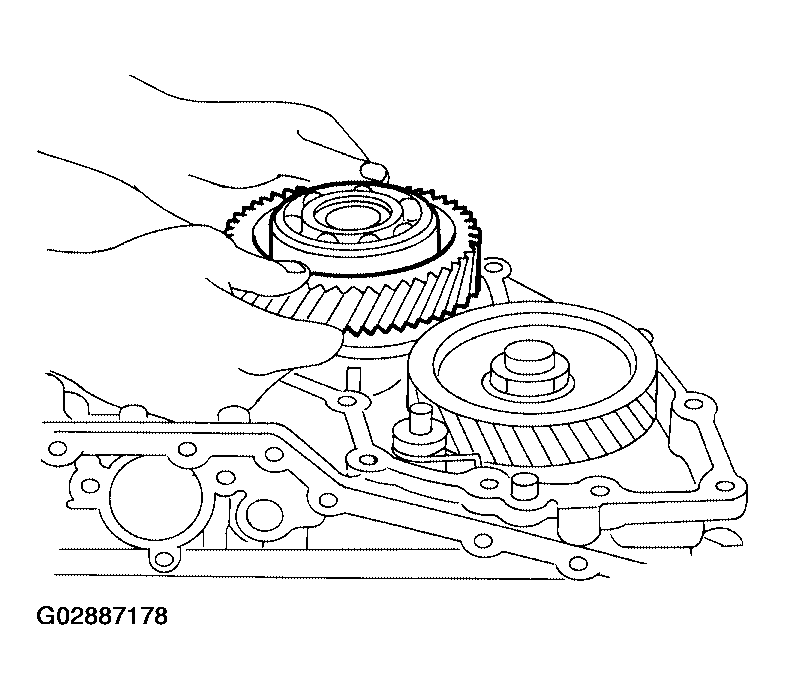

Install output shaft on transmission case.

Fig 4: Installing Output Shaft On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimensions "l 1" and "l 2" at side cover and then calculate dimension "A".
- Measure dimension "l 1" and "l 2" in at least two places.
  "A": Distance between transmission case fitting surface and adjusting shim mating surface.

  A = l 1 - l 2

  l 2: Height of gauge

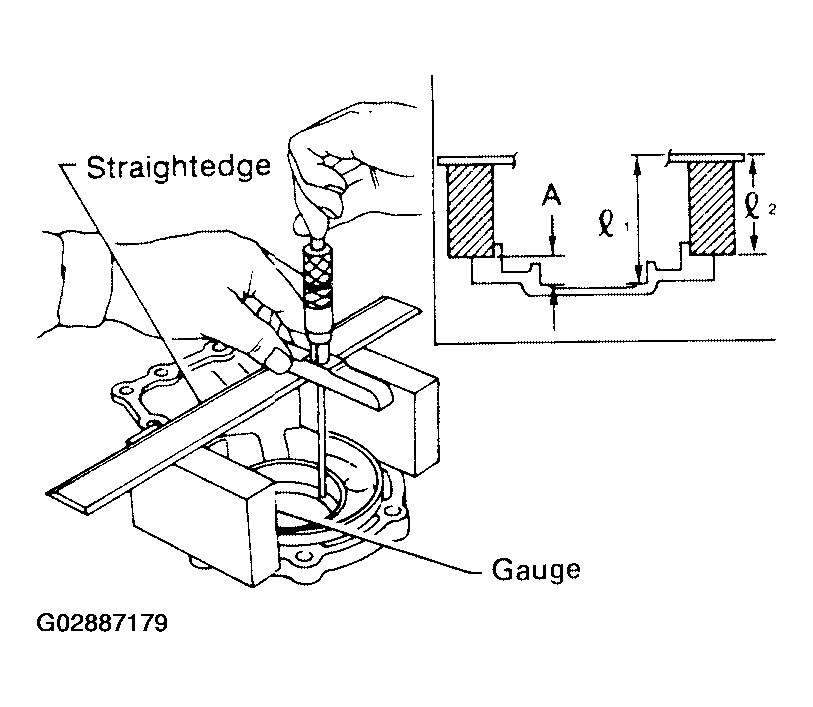

  Fig 5: Measuring Dimensions L1 & L2 At Side Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimensions "l 2" and "l 3" and then calculate dimension "B".
- Measure "l 2" and "l 3" in at least two places.
  "B": Distance between the end of output shaft bearing outer race and the side cover fitting surface of transmission case.

  B = l 2 - l 3

  l 2: Height of gauge

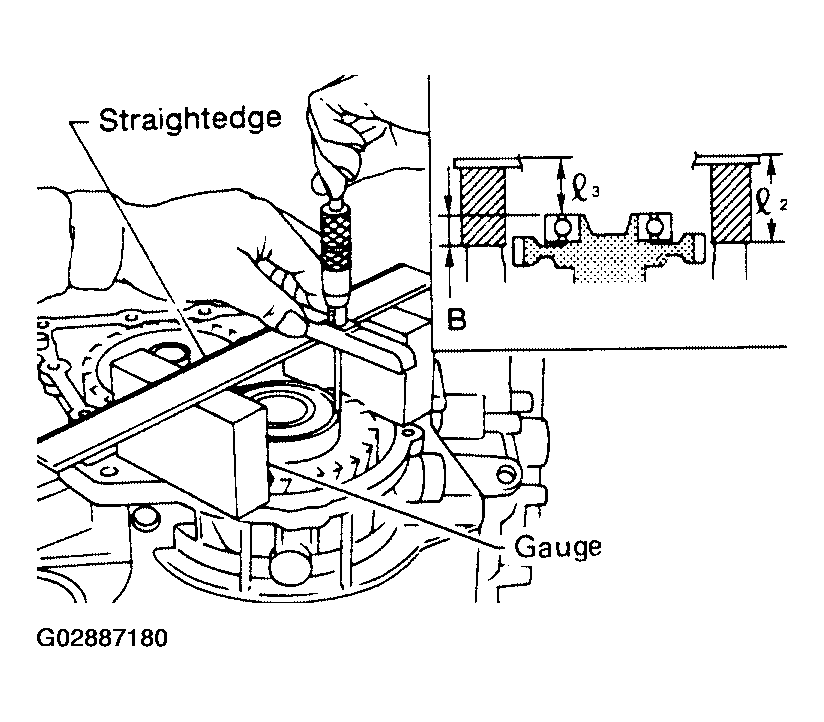

  Fig 6: Measuring Dimensions L2 & L3 At Side Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
Select proper thickness of adjusting shim so that output shaft end play (clearance between side cover and output shaft bearing) is within specifications.
Output shaft end play (A - B): 0 - 0.15 mm (0 - 0.0059 in)

Output shaft end play adjusting shims: Refer to " OUTPUT SHAFT ADJUSTING SHIMS ".
Install adjusting shim on output shaft bearing.

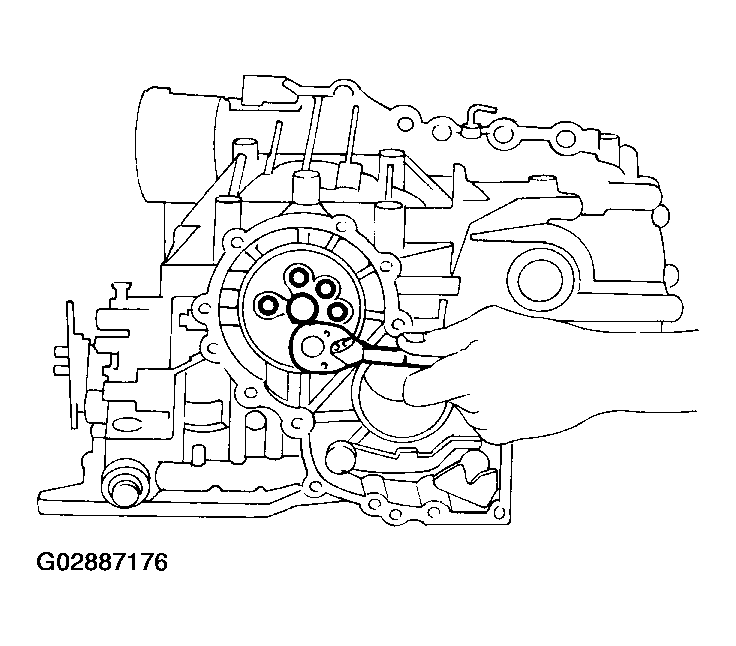

Fig 7: Installing Adjusting Shim On Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
