With CONSULT-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON and wait at least 1 second.
  5. Repeat step  2 and  3 for 32 times.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

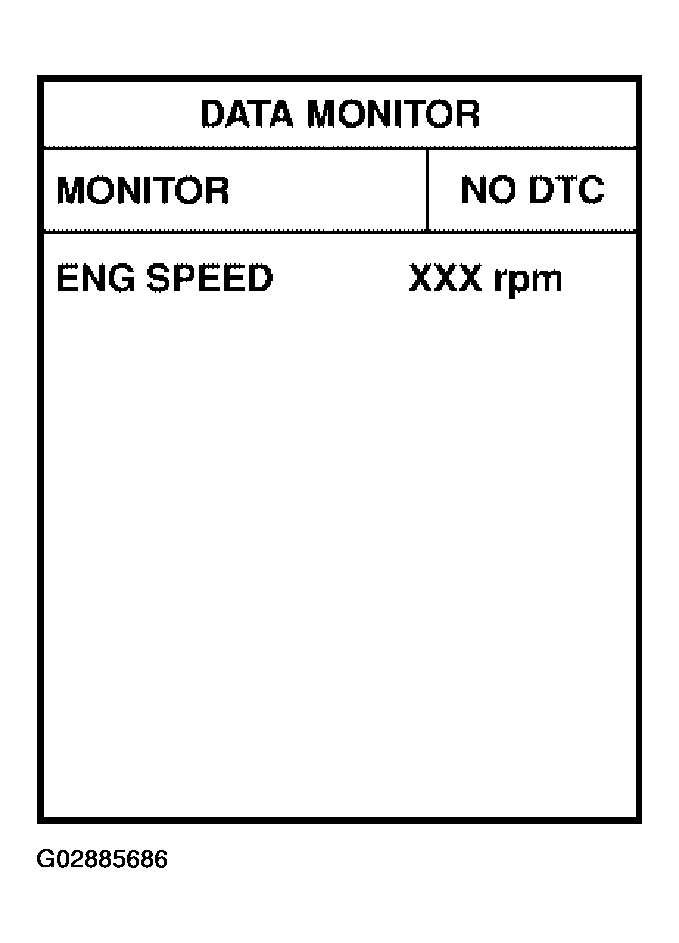

    Fig 1: CONSULT-II Diagnosis Function Display (3 Of 3)
    G02885686Courtesy of NISSAN MOTOR CO., U.S.A.
