With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Start engine and warm it up to normal operating temperature.
  2. Select "HO2S1 (B1) P0134" or "HO2S1 (B2) P0154" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
  3. Touch "START".
  4. Let it idle for at least 3 minutes.
    NOTE: Never raise engine speed above 3, 600 RPM after this step. If the engine speed limit is exceeded, return to step  4.

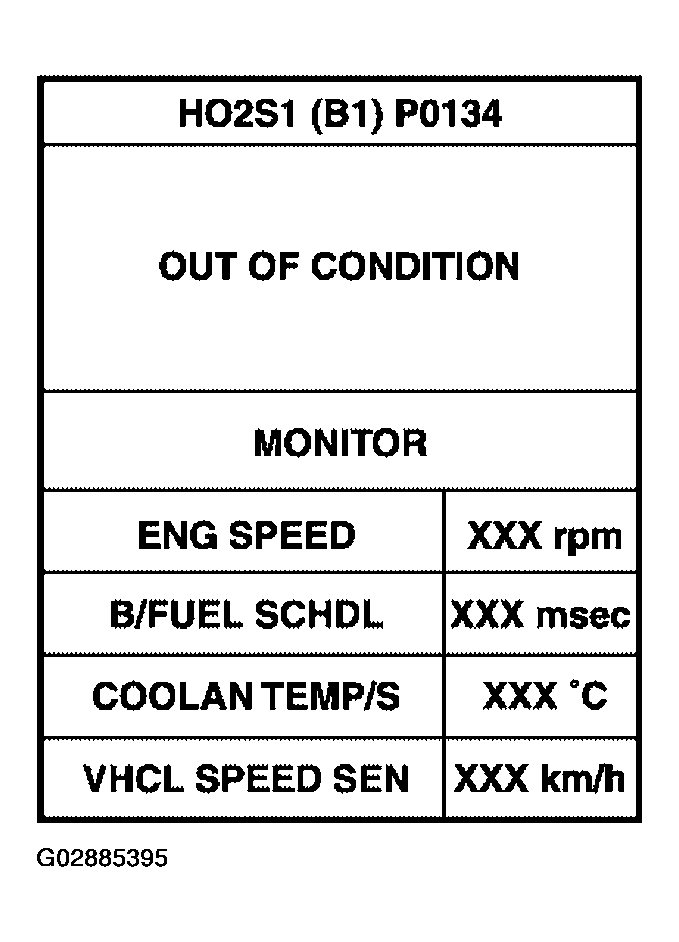

    Fig 1: Displaying "HO2S1 (B1) P0134" Mode
    G02885395Courtesy of NISSAN MOTOR CO., U.S.A.
  5. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 10 to 60 seconds.)
    ENG SPEED SPECIFICATION

    ENG SPEED 1, 400 - 2, 600 RPM
    Vehicle speed More than 64 km/h (40 MPH)
    B/FUEL SCHDL 2.0 - 12.0 msec
    Selector lever Suitable position

    If "TESTING" is not displayed after 5 minutes, retry from step 2.

  6. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".

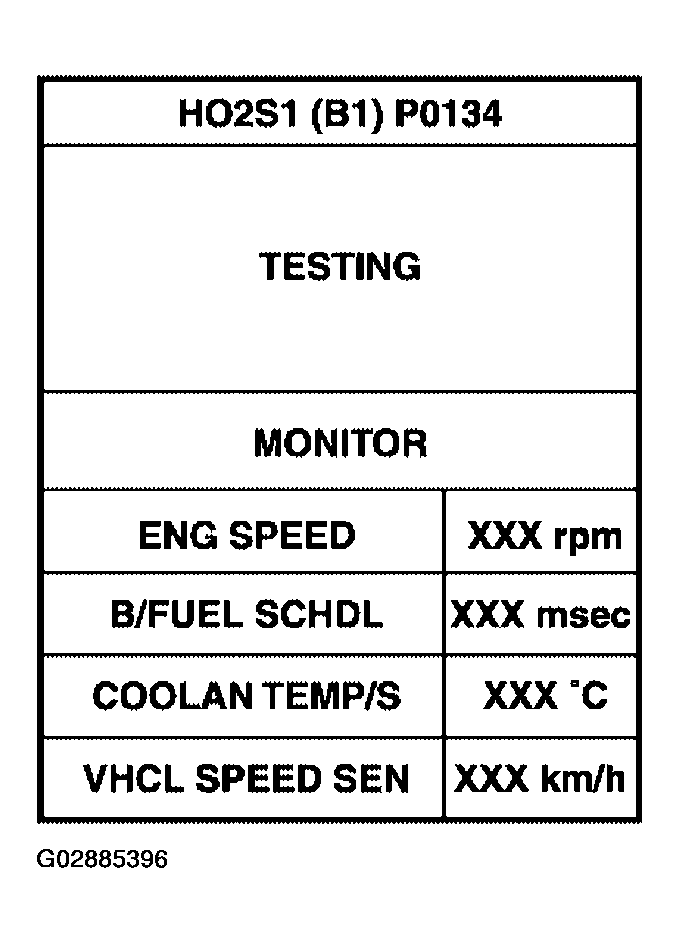

    Fig 2: Displaying TESTING Mode
    G02885396Courtesy of NISSAN MOTOR CO., U.S.A.

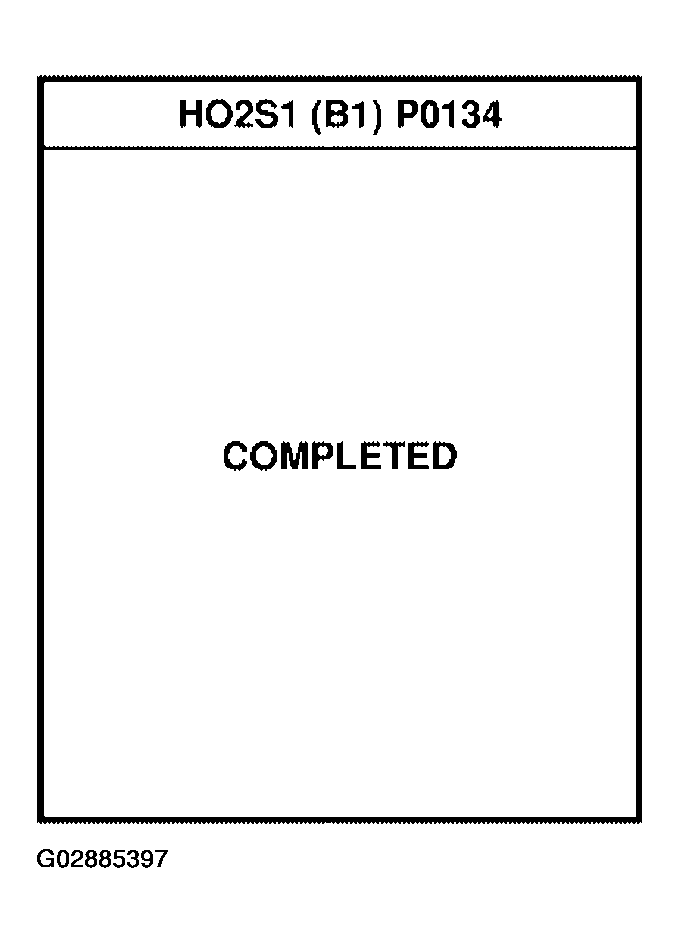

    Fig 3: Displaying "HO2S1 (B1) P0134" Mode
    G02885397Courtesy of NISSAN MOTOR CO., U.S.A.
