Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two engine ground screws. Refer to "GROUND INSPECTION ".
OK or NG
1. OK : GO TO 2.
2. NG : Repair or replace ground connections.

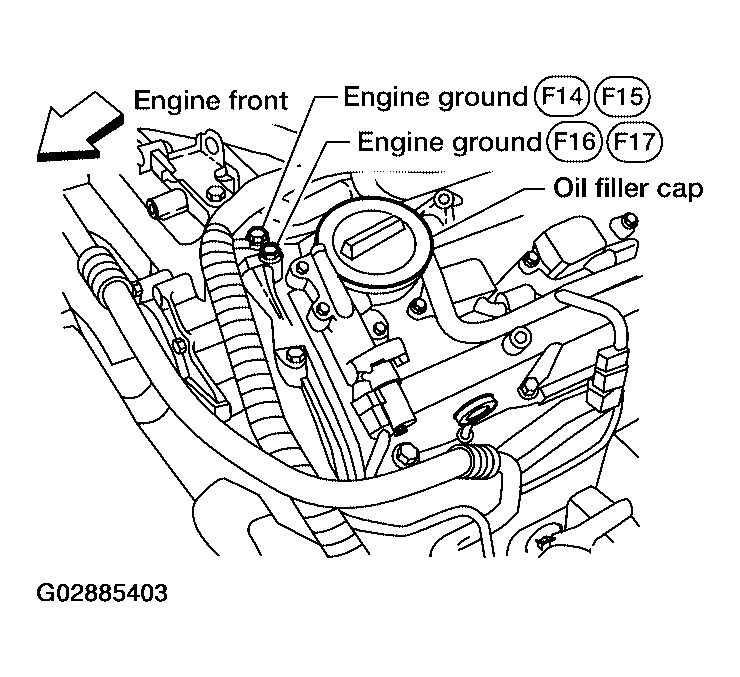

  Fig 1: Retightening Two Engine Ground Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect HO2S1 harness connector.
  Bank 1

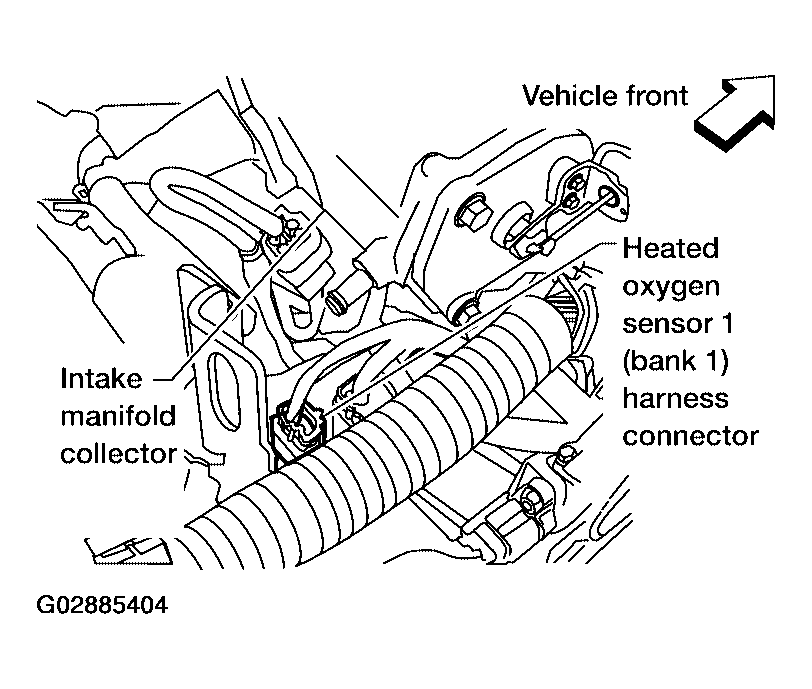

  Fig 2: Disconnecting HO2S1 Harness Connector - Bank 1
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Bank 2

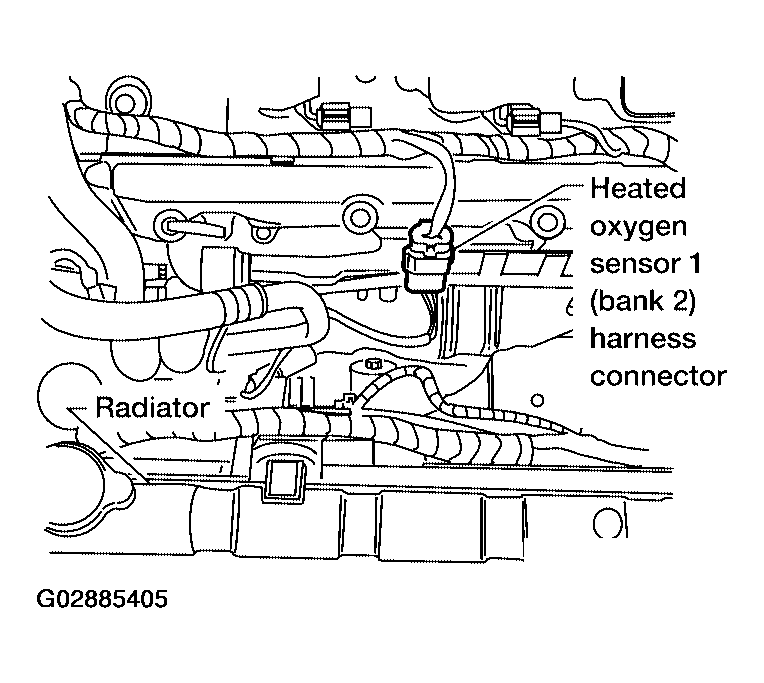

  Fig 3: Disconnecting HO2S1 Harness Connector - Bank 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S1 terminal as follows. Refer to Wiring Diagram .

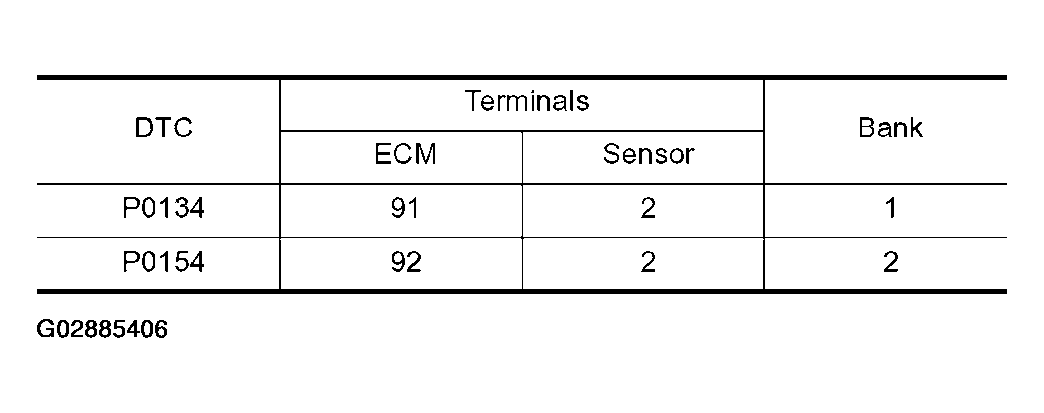

  Fig 4: Terminal Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should exist.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram .

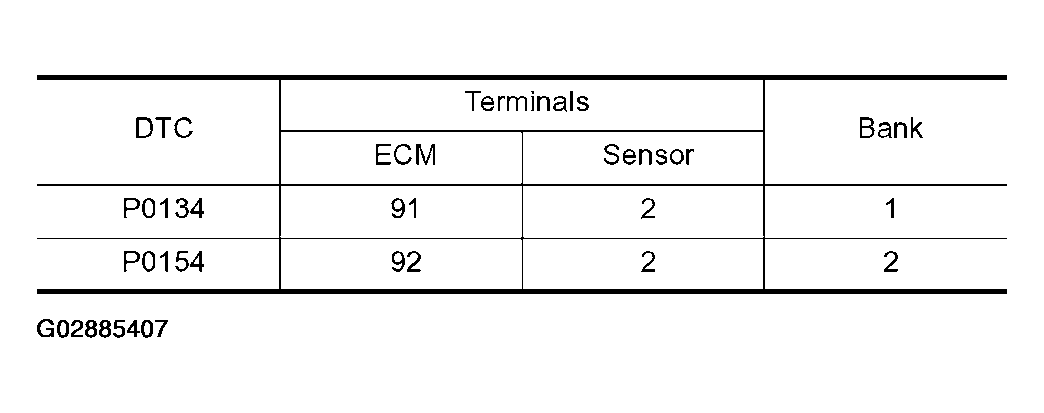

  Fig 5: Terminal Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should not exist.
5. Also check harness for short to power.
OK or NG
1. OK : GO TO 3.
2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK HEATED OXYGEN SENSOR 1
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : GO TO 4.
2. NG : Replace malfunctioning heated oxygen sensor 1.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. : INSPECTION END
