Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

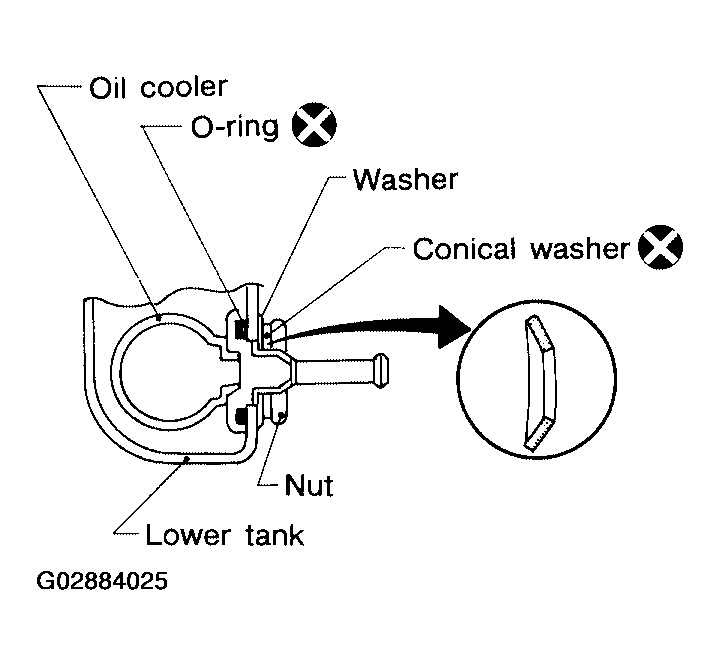

Install the oil cooler (A/T model only).
NOTE: Pay attention to direction of conical washer.

Fig 1: Identifying Oil Cooler (A/T Model Only)
Courtesy of NISSAN MOTOR CO., U.S.A.

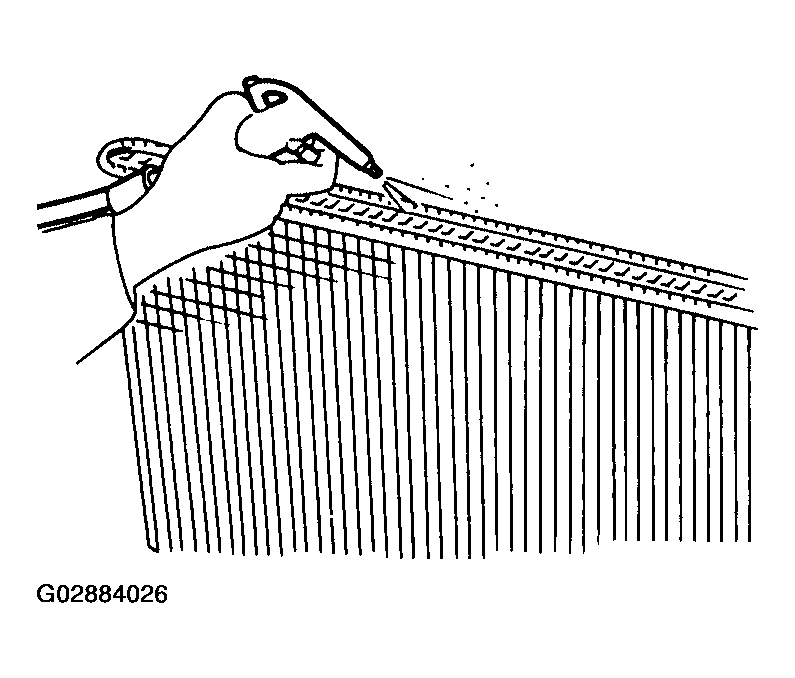

Clean the contact portion of the tank.

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

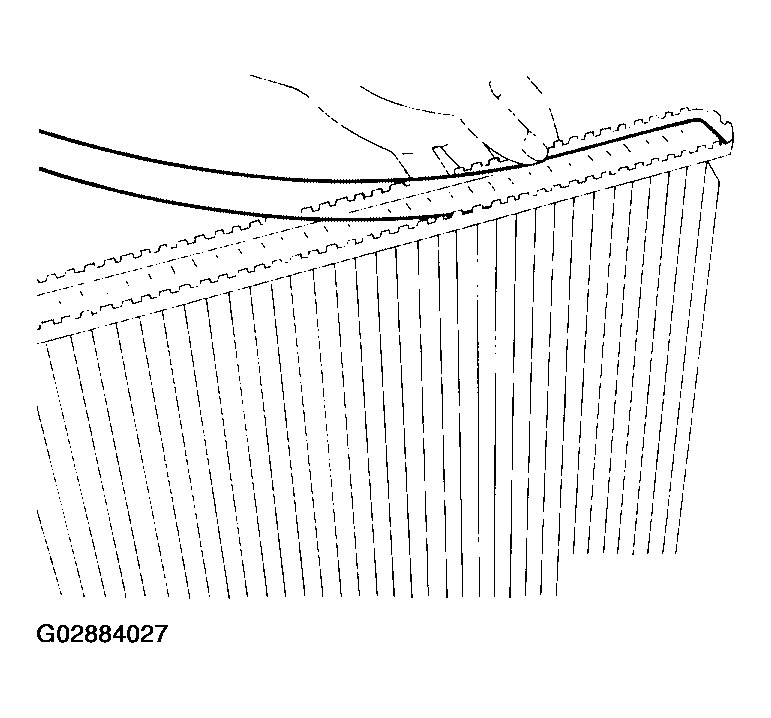

Install sealing rubber by pushing it in with your fingers.
CAUTION: Be careful not to twist sealing rubber gasket.

Fig 3: Installing Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.

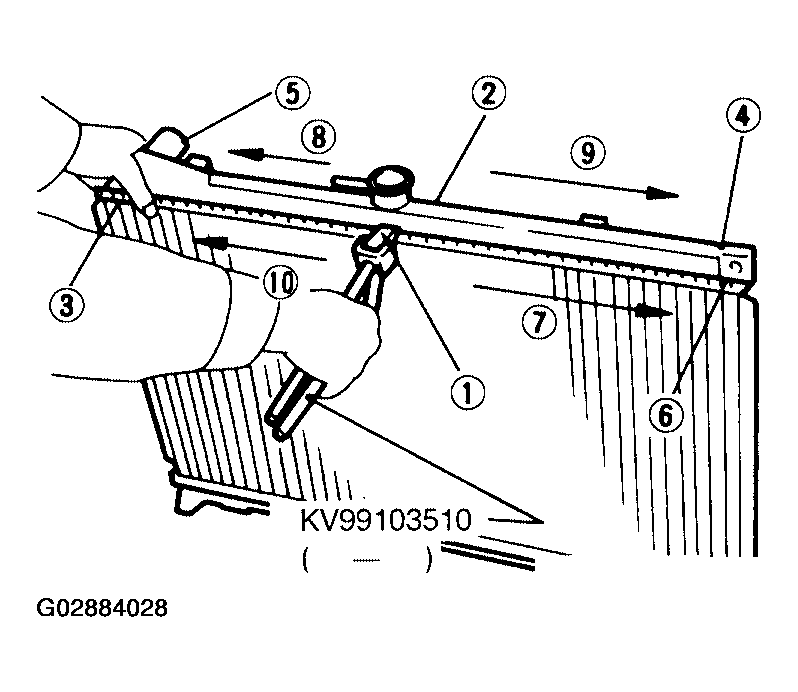

Crimp tank in specified sequence with Tool.

Fig 4: Crimping Tank In Specified Sequence With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

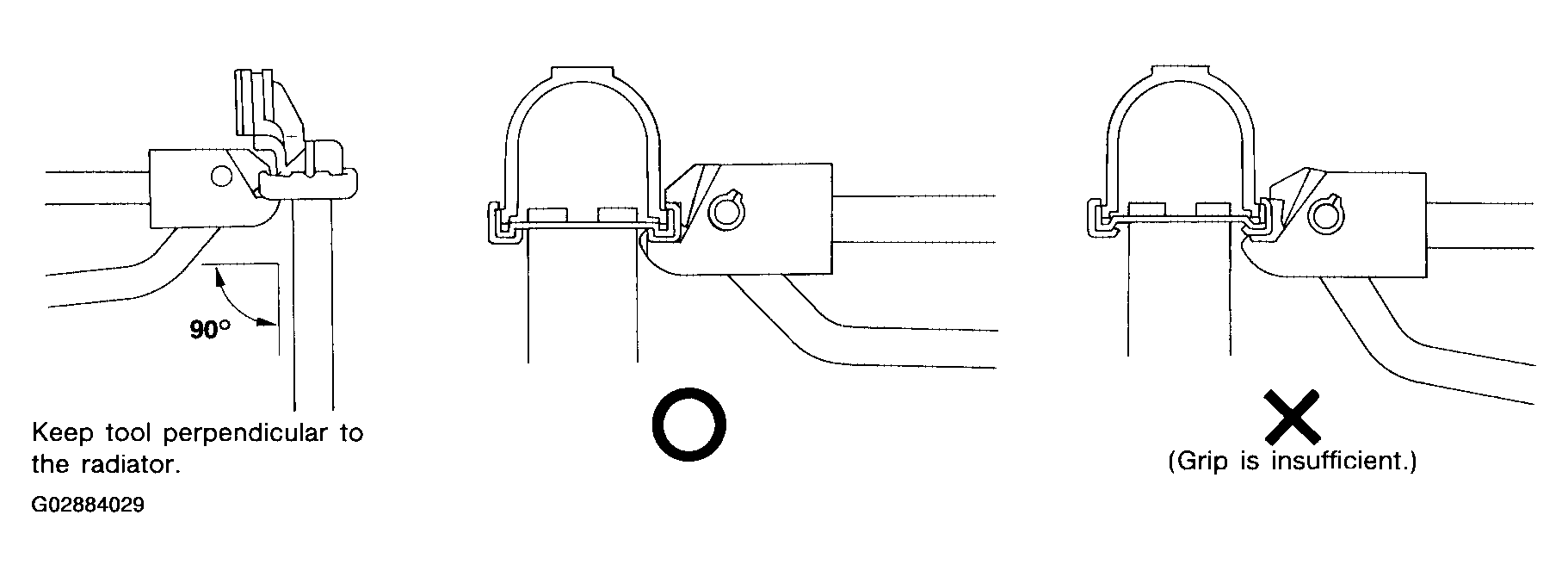

Fig 5: Identifying Method Of Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

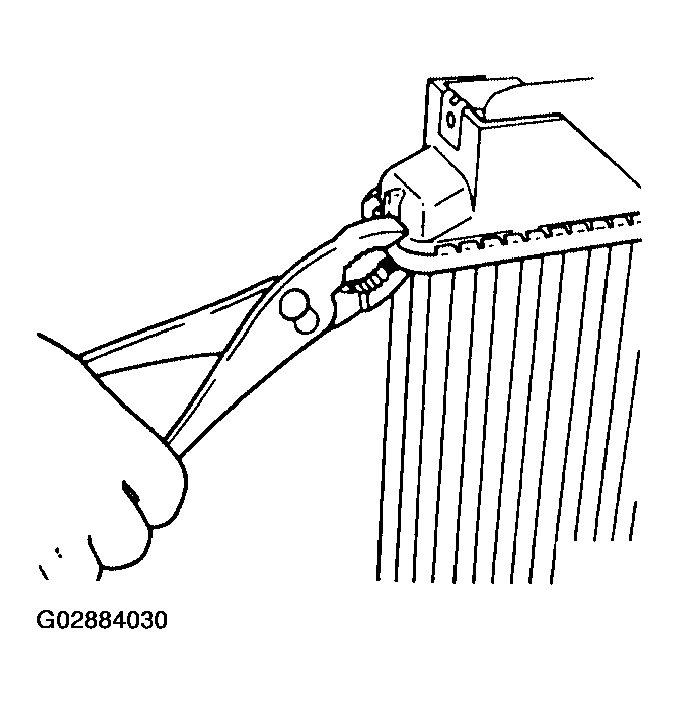

- Use pliers in the locations where Tool cannot be used.

  Fig 6: Use Pliers Where Tool Cannot Be Used
  Courtesy of NISSAN MOTOR CO., U.S.A.

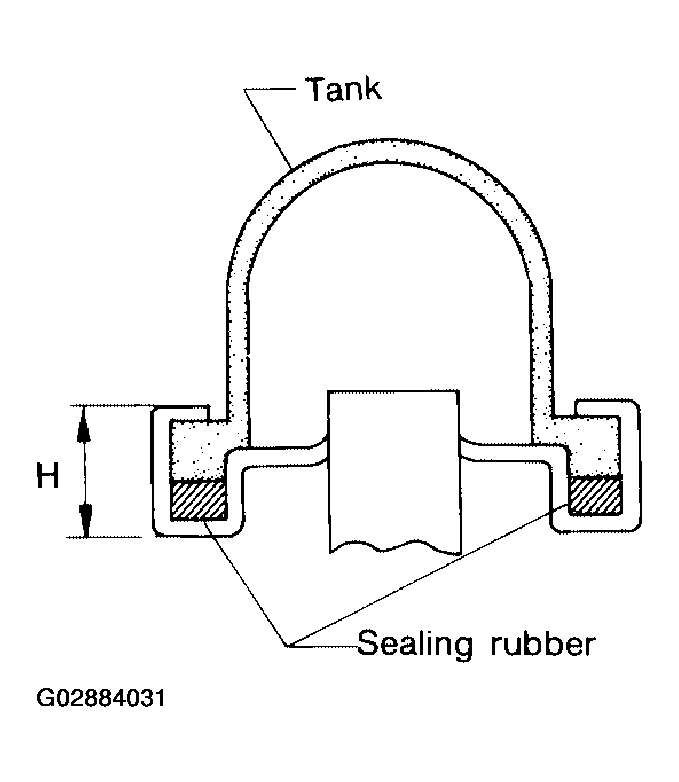

Make sure that the rim is completely crimped down.
Standard height "H" : 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.

Fig 7: Identifying Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to INSPECTION .
