Disassembly and Assembly: Inspection

WARNING: This page is about a different variant/trim than selected.

Apply pressure with Tool.
Specified pressure : 157 kPa (1.6 kg/cm ² 23 psi) value

WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp.
Attach a hose to the oil cooler as well (A/T model only).
Check for leakage.

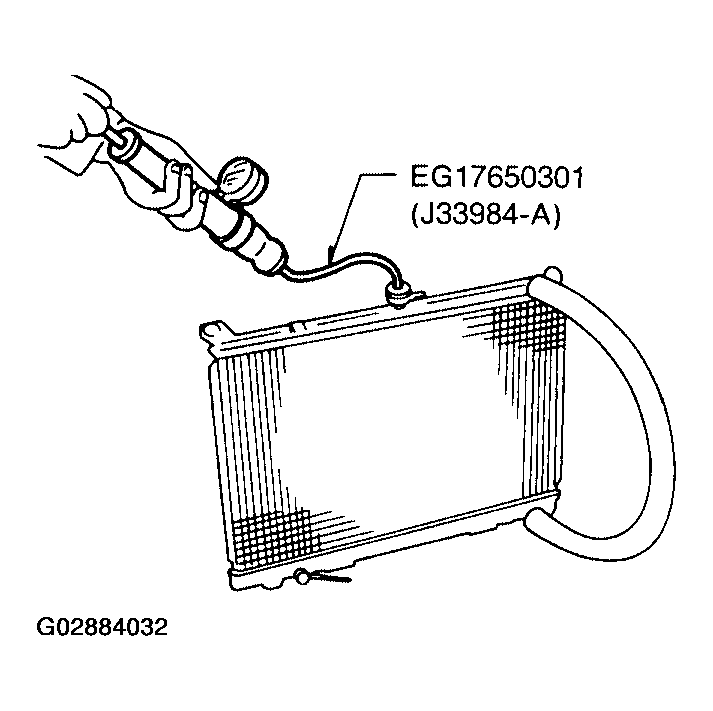

Fig 1: Applying Pressure With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

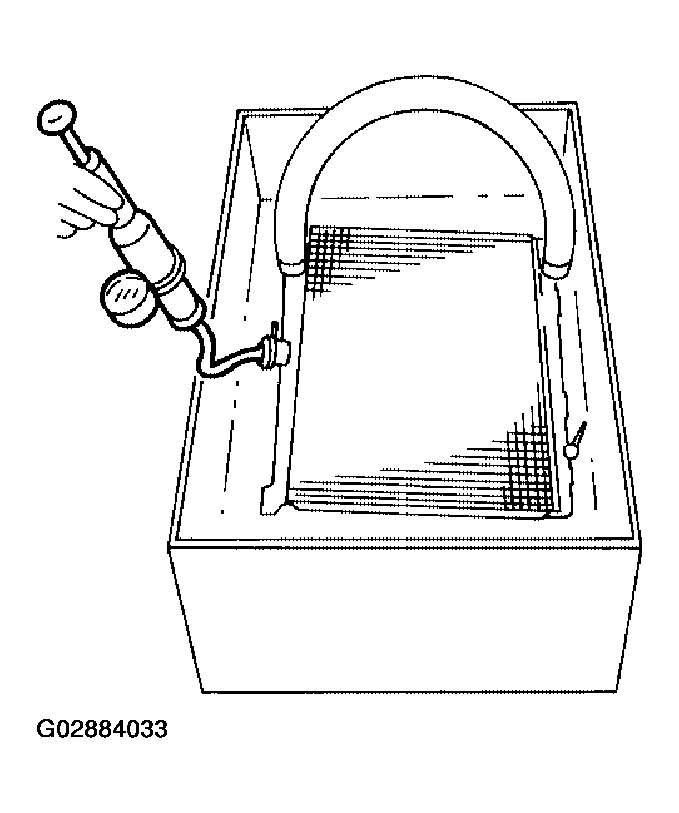

Fig 2: Checking For Leakage
Courtesy of NISSAN MOTOR CO., U.S.A.
