Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover, using power tool.
  2. Disconnect the mass air flow sensor electrical connector and remove the air cleaner assembly and air intake tubes. Refer to REMOVAL AND INSTALLATION  .
  3. Remove the windshield wiper arms and motor assembly and the front cowl panel. Refer to REMOVAL AND INSTALLATION FOR WIPER MOTOR AND LINKAGE .
  4. Remove the intake manifold collector using power tool. Remove gasket and the electric throttle control actuator. Refer to REMOVAL AND INSTALLATION  .
  5. Remove the six ignition coils. Refer to REMOVAL AND INSTALLATION  .
  6. Remove the two intake valve timing control solenoid valves and gaskets. Refer to INTAKE VALVE TIMING CONTROL SOLENOID VALVE .
  7. Remove RH and LH rocker covers from cylinder head.

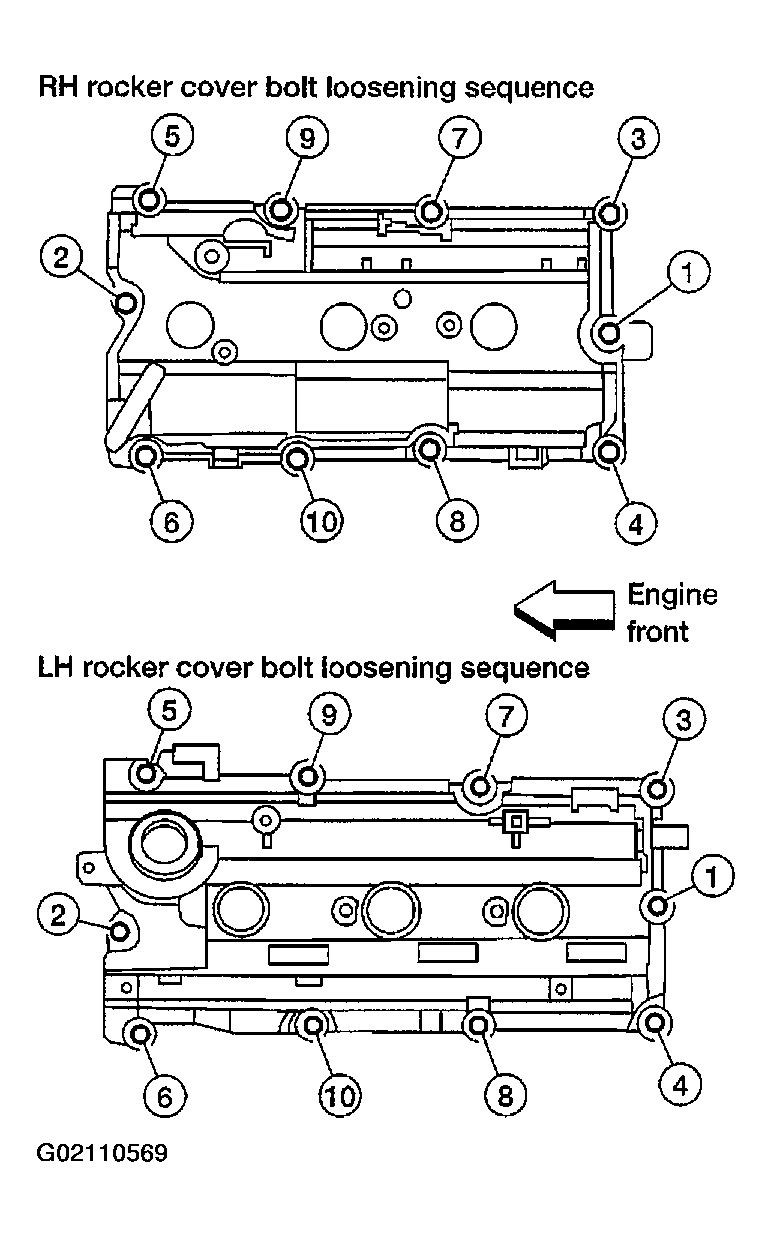

    • Follow the loosening sequence for each side rocker cover bolts as shown.
    Fig 1: View Of Rocker Cover Bolt
    G02110569Courtesy of NISSAN MOTOR CO., U.S.A.
