Intake Valve Timing Control Solenoid Valve

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect intake valve timing control solenoid valve harness connector.
  2. Check resistance between intake valve timing control solenoid valve terminals as follows.
    RESISTANCE SPECIFICATION

    Terminals Resistance
    1 and 2 7.0 - 7.7 Ω at 20°C (68°F)
    1 or 2 and ground infinΩ (Continuity should not exist)

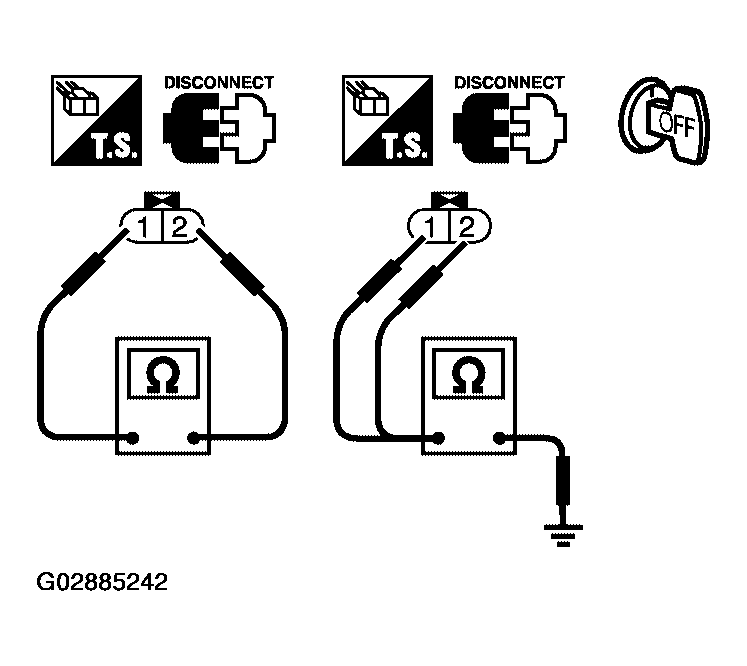

    Fig 1: Checking Resistance Between Intake Valve Timing Control Solenoid Valve Terminals
    G02885242Courtesy of NISSAN MOTOR CO., U.S.A.
