Removal and Installation: Installation

• Carefully install new O-rings, including the one used with the fuel damper.
• Lubricate O-rings by lightly coating with new engine oil.
• Be careful not to damage the O-rings and surfaces for O-ring sealing surfaces. Do not expand or twist O-rings.
• Discard old clips; replace with new ones.
• Position clips in grooves on the fuel injectors.
• Make sure that protrusions of fuel injectors are aligned with cutouts of clips after installation.

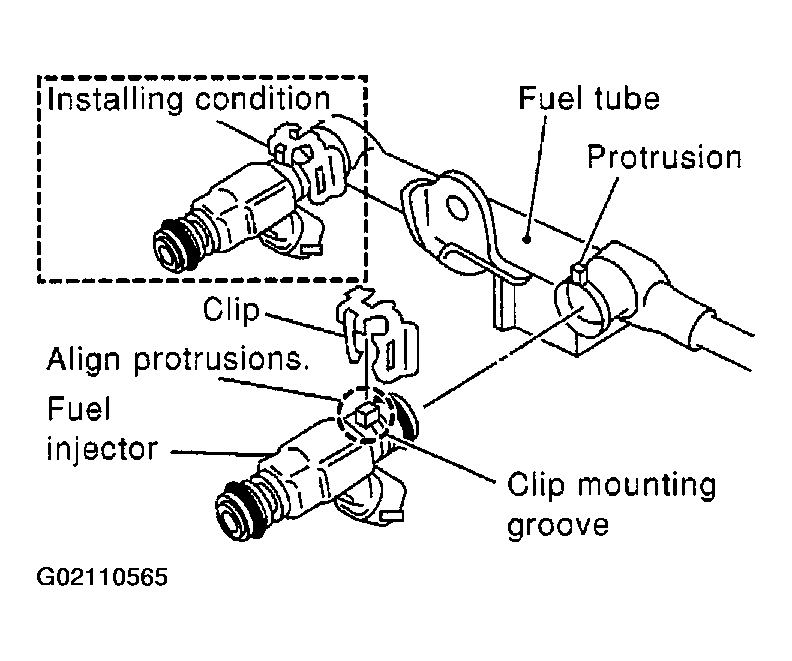

  Fig 1: View Of Installing Fuel Injectors To Fuel Rail

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Align the protrusions of the fuel tube assembly with those of the fuel injectors.
• After properly inserting the fuel injectors onto the fuel tube assembly, check that the fuel tube protrusions are engaged with those of fuel injectors, and the flanges of the fuel tube assembly are fully engaged with the clips.

1. 1st step : 9.3 - 10.8 N.m (0.95 - 1.1 kg-m, 6.2 - 7.9 ft-lb)
2. 2nd step : 20.6 - 26.5 N.m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)

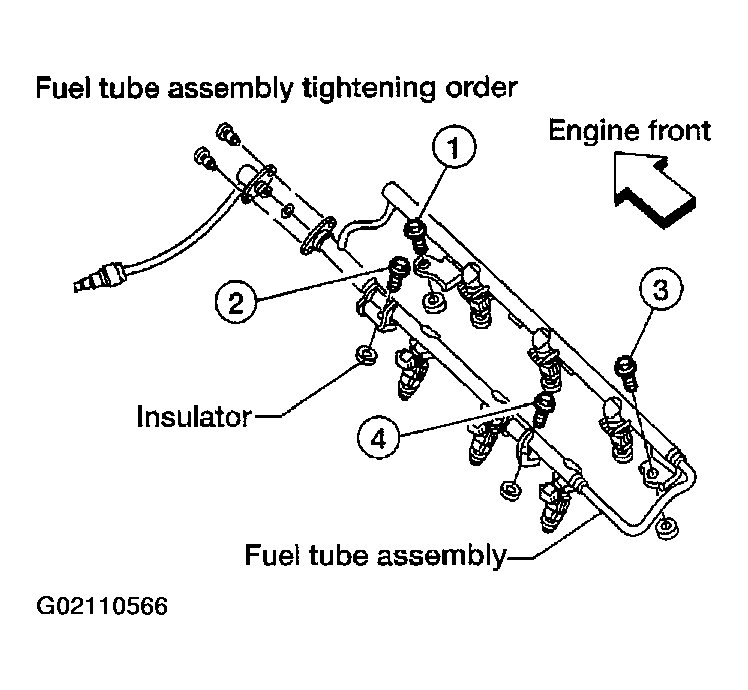

Fig 2: View Of Fuel Tube Torque Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Intake manifold collector bolts : 18 - 21 N.m (1.8 - 2.2 kg-m, 13 - 15 ft-lb

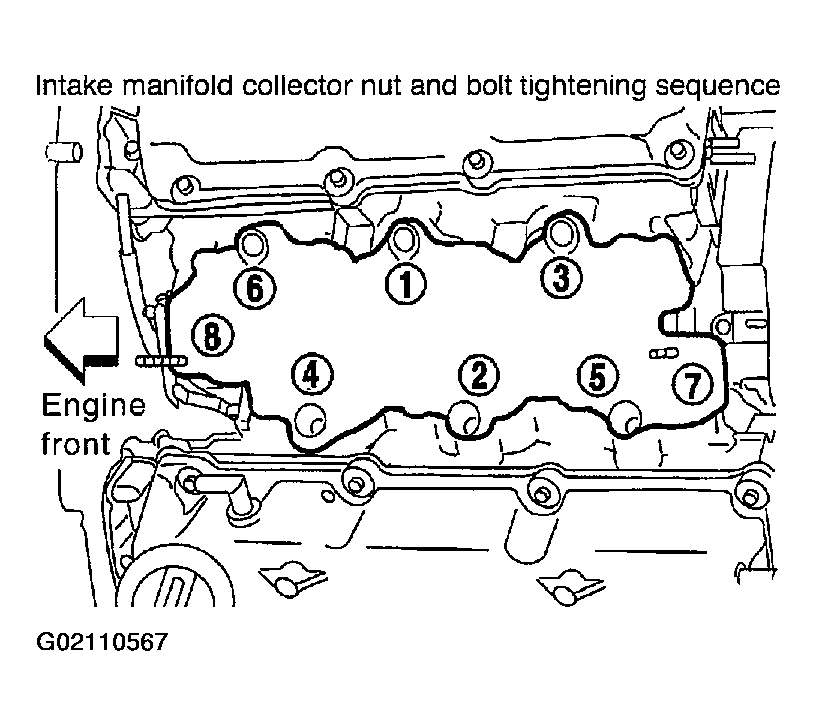

Fig 3: View Of Intake Manifold collector Torque Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Intake manifold collector pipe bolts : 18 - 21 N.m (1.8 - 2.2 kg-m, 13 - 15 ft-lb)

• Perform "Throttle Control Closed Position Learning" when the harness connector of the electric throttle control actuator is disconnected. Refer to THROTTLE VALVE CLOSED POSITION LEARNING .
• Perform "Idle Air Volume Learning" when the electric throttle control actuator is replaced. Refer to IDLE AIR VOLUME LEARNING .
