Description & Operation: Notes

WARNING: This page is about a different variant/trim than selected.

Cooling fans are controlled by cooling fan relays which are regulated by the ECCS Control Module (ECM) based upon various input signals. See WIRING DIAGRAMS . For system description and operation, see Fig 1 & Fig 2 .

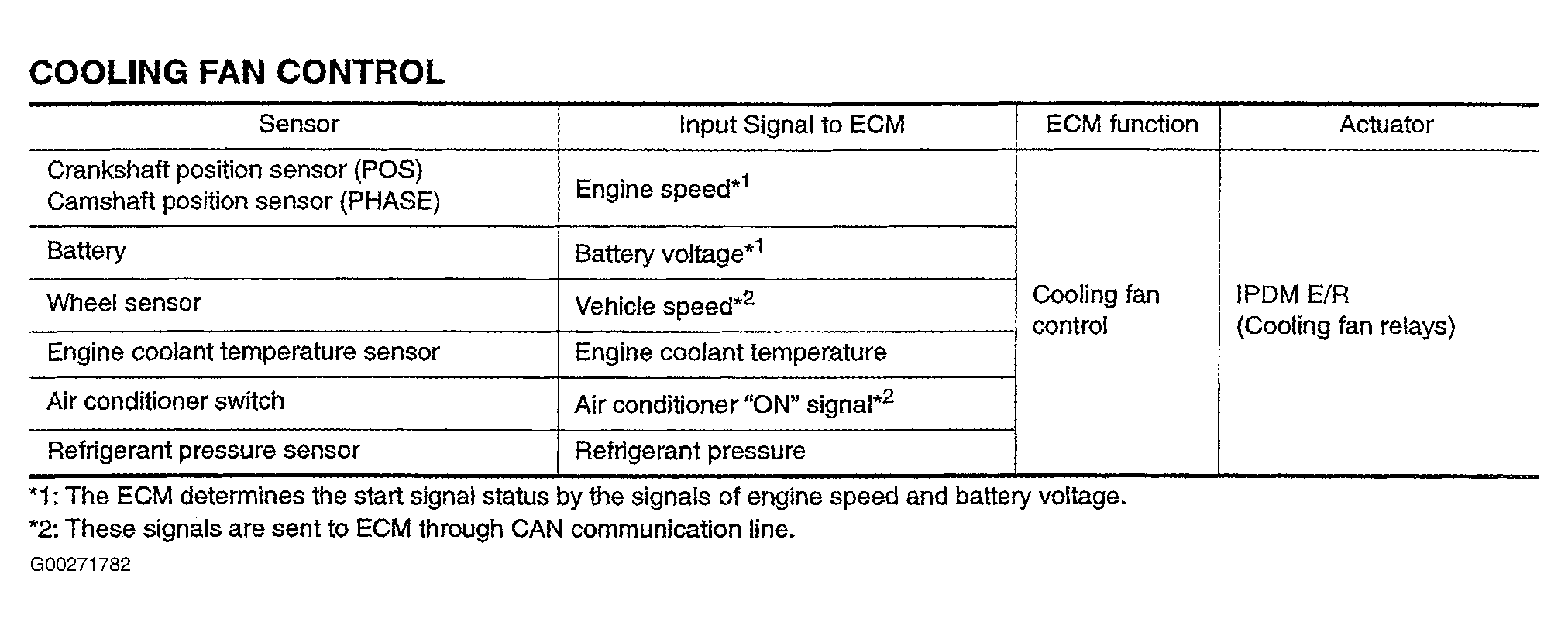

Fig 1: Identifying Cooling Fan Control Components & Function

Courtesy of NISSAN MOTOR CO., U.S.A.

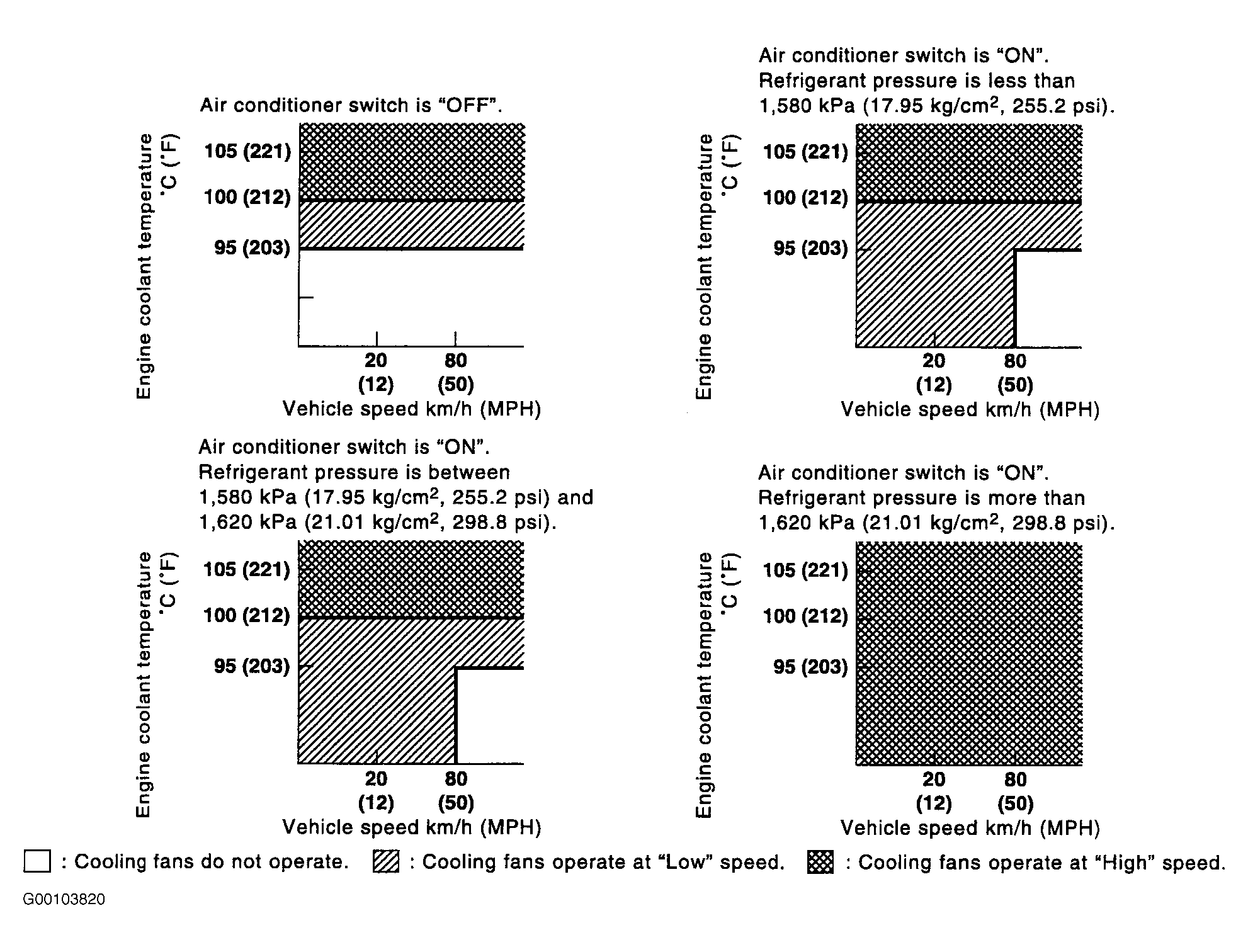

Fig 2: Identifying Cooling Fan Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
