Section 1 (Electric Cooling Fans - 3.5L)
>>
Wiring Diagrams
Wiring Diagrams
WARNING:
This page is about a different variant/trim than selected.
See
Fig 1
&
Fig 2
.

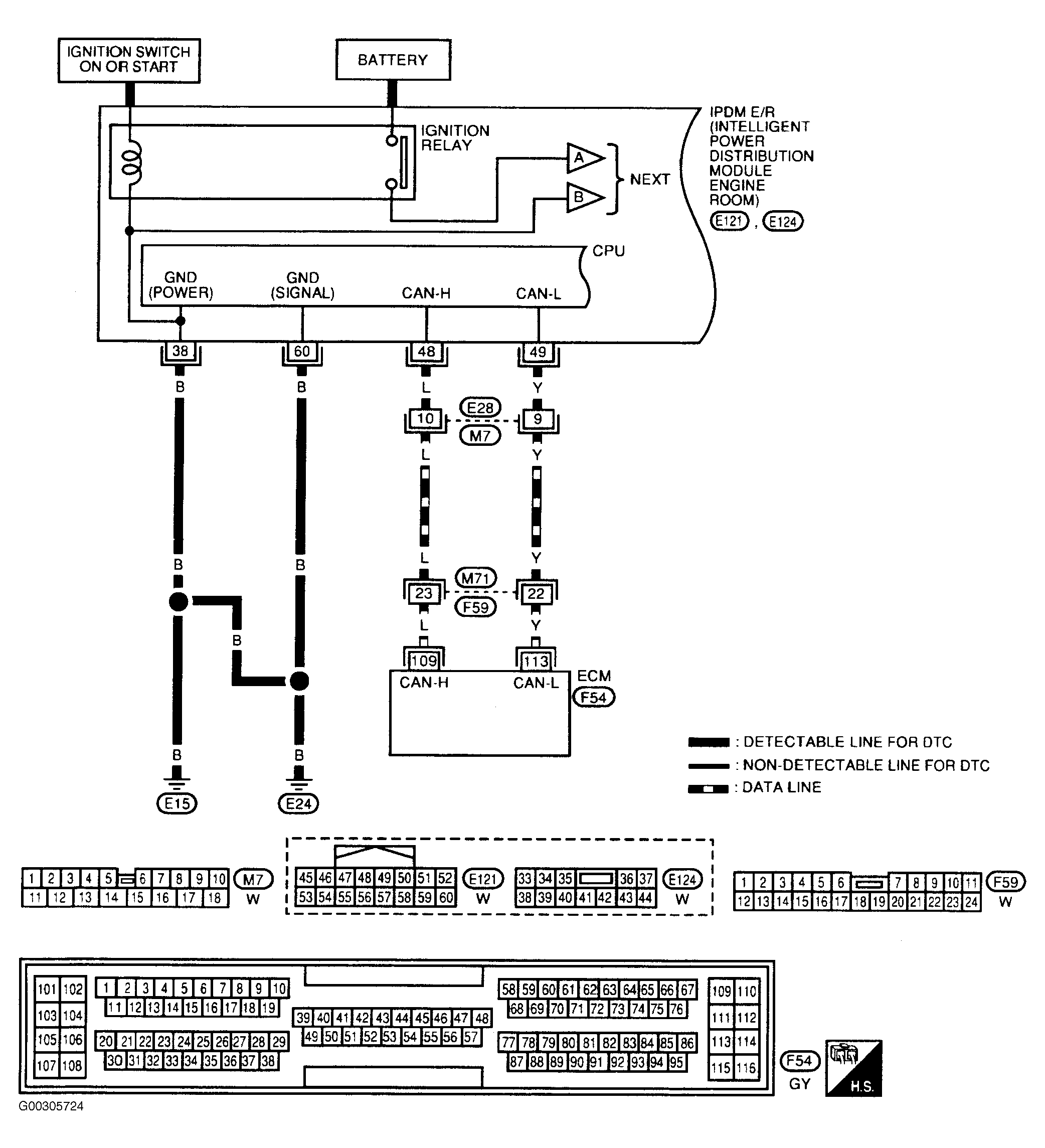

Fig 1: Electric Cooling Fan Circuit Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

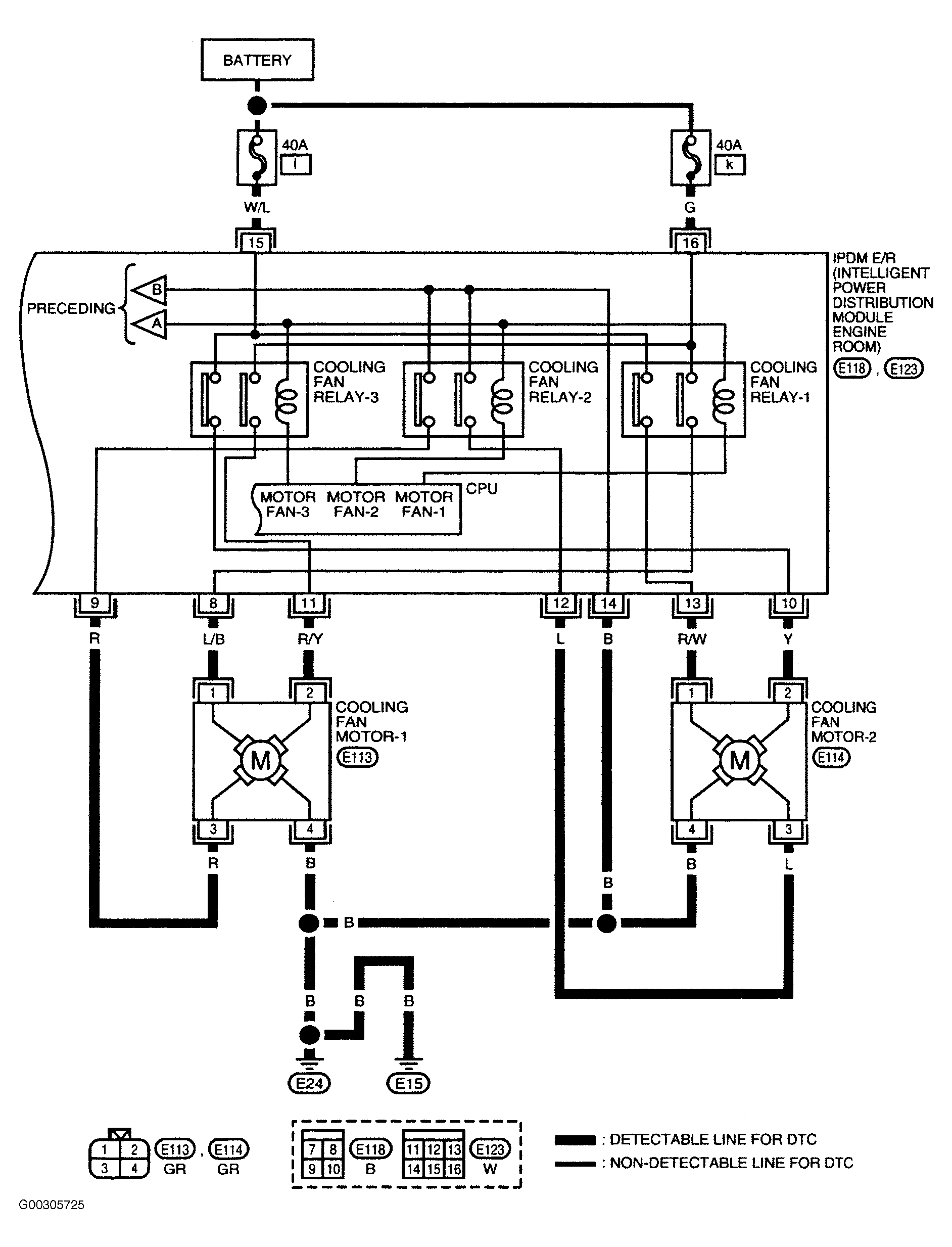

Fig 2: Electric Cooling Fan Circuit Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
