Inspection Flow

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

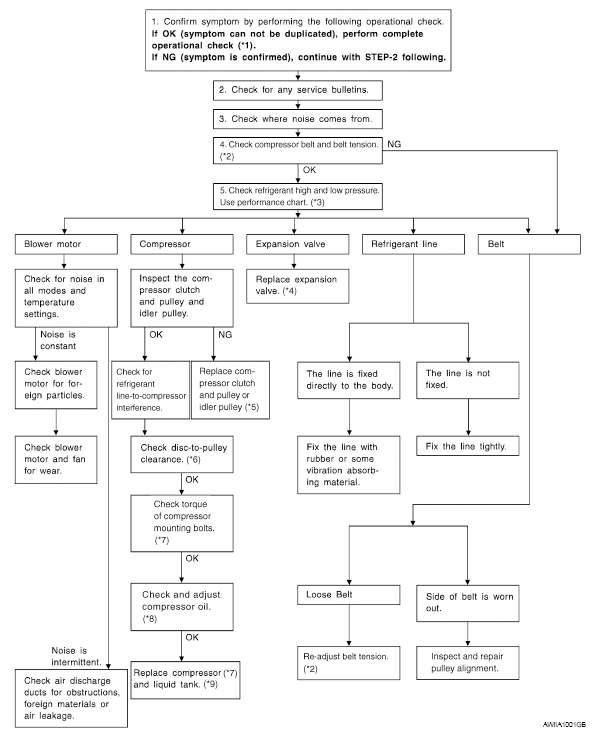

Fig 1: Inspection Flow Chart

G05876164

Courtesy of NISSAN MOTOR CO., U.S.A.

INSPECTION FLOW CHART REFERENCES

*1. Operational Check

*2. CHECKING DRIVE BELTS

*3. Performance Chart

*4. EXPANSION VALVE: REMOVAL AND INSTALLATION FOR EXPANSION VALVE

*5. REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH

*6. REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH

*7. REMOVAL AND INSTALLATION FOR COMPRESSOR

*8. MAINTENANCE OF OIL QUANTITY

*9. CONDENSER: REMOVAL AND INSTALLATION FOR CONDENSER
