Checking Drive Belts

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

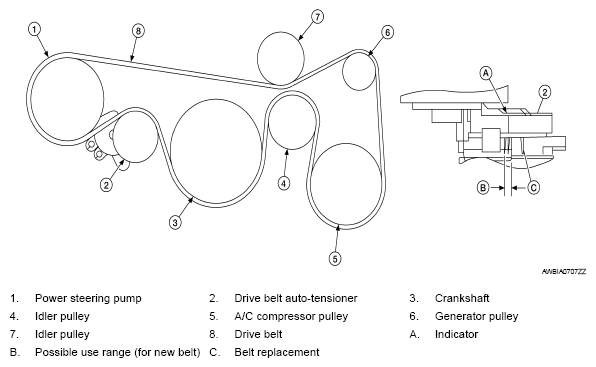

Fig 1: Drive Belt Routing Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Inspect and check the drive belts with the engine off.

Inspect belt for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one.
Rotate the crankshaft pulley two times then check the belt tension using Tool.
Tool Number: - (BT-3373-F)

NOTE:

Inspect drive belt tension when engine is cold.
