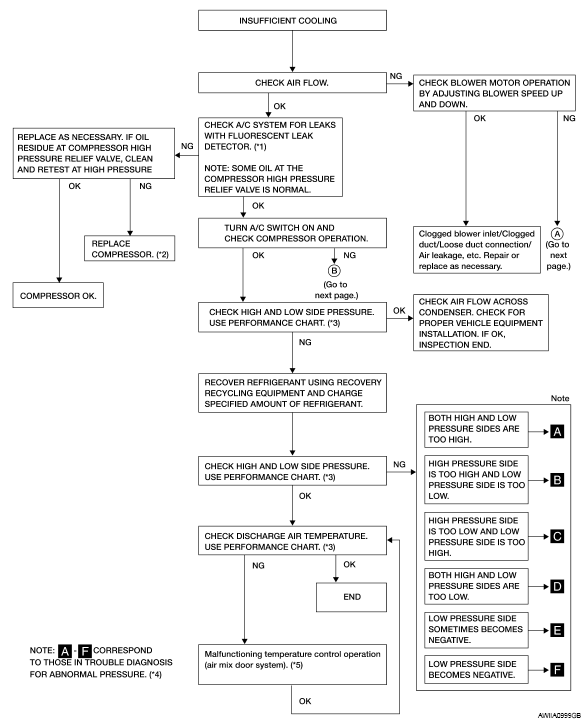

Diagnostic Work Flow
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC WORK FLOW REFERENCES (1 OF 2)
| *1. INSPECTION |
| *2. REMOVAL AND INSTALLATION FOR COMPRESSOR |
| *3. Performance Chart |
| *4. WITH MONOCHROME DISPLAY: TROUBLE DIAGNOSES FOR ABNORMAL PRESSURE |
| *5. Diagnosis Procedure |

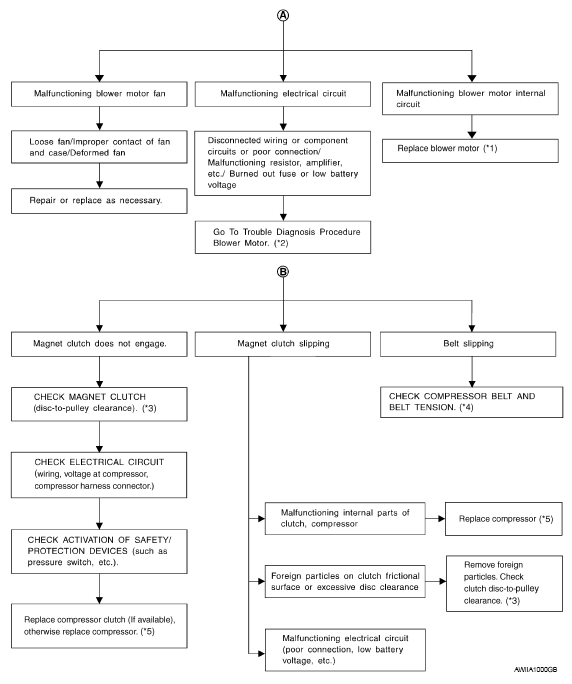

DIAGNOSTIC WORK FLOW REFERENCES (2 OF 2)
| *1. BLOWER MOTOR: REMOVAL AND INSTALLATION |
| *2. Diagnosis Procedure |
| *3. REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH |
| *4. CHECKING DRIVE BELTS |
| *5. REMOVAL AND INSTALLATION FOR COMPRESSOR |
