Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal. Refer to "EXPLODED VIEW ".
  2. Move selector lever to "N" position.
  3. Slide knob cover (3) downward.
    CAUTION: Be careful not to damage knob cover.
  4. Pull lock pin (2) out of selector lever knob (1).
  5. Remove selector lever knob and knob cover.
  6. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
    Fig 1: Identifying Knob Cover, Lock Pin And Selector Lever Knob
    G05875857Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Move selector lever to "P" position.
  8. Remove control cable (1) from control device assembly. Refer to "EXPLODED VIEW ".
  9. Remove control device assembly (2).

    →: Nut

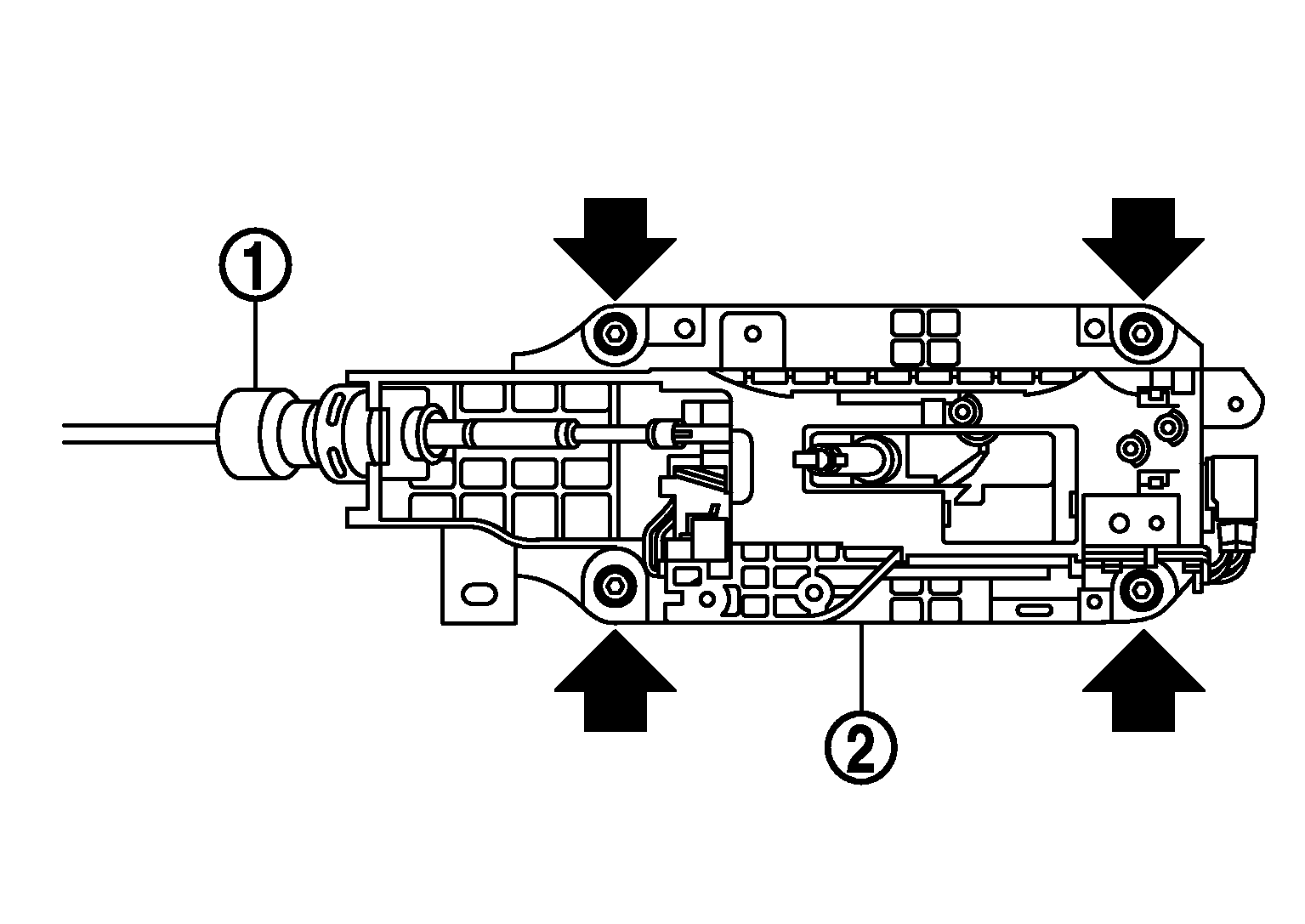

    Fig 2: Identifying Control Cable And Control Device Assembly
    G05875858Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Disconnect control device connector (A) using a suitable tool.
  11. Remove shift lock unit from control device assembly.

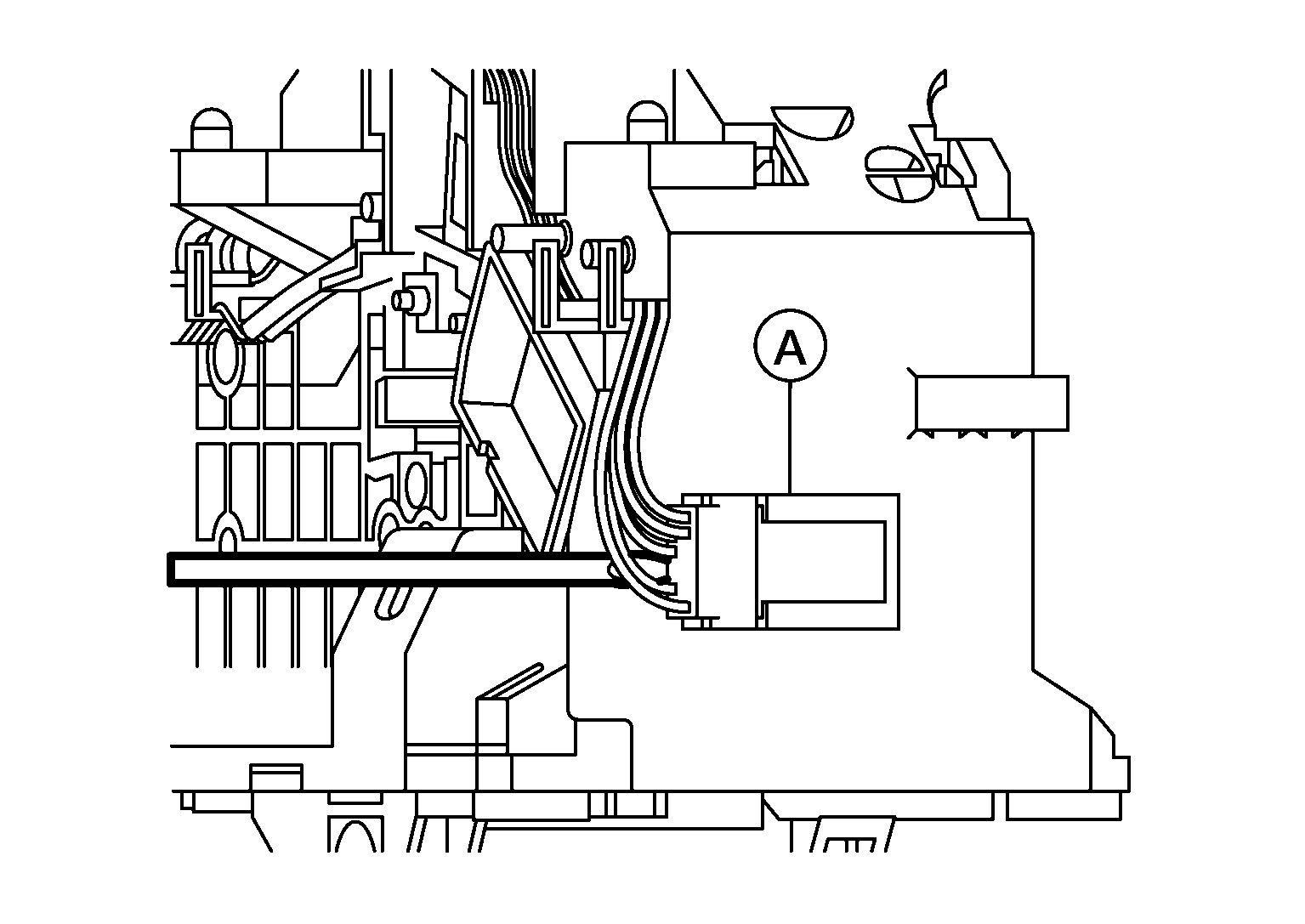

    Fig 3: Identifying Control Device Connector
    G05875859Courtesy of NISSAN MOTOR CO., U.S.A.
