Section 990 (Power Supply, Ground & Circuit Elements)
>>
On-Vehicle Repair
>>
Battery
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

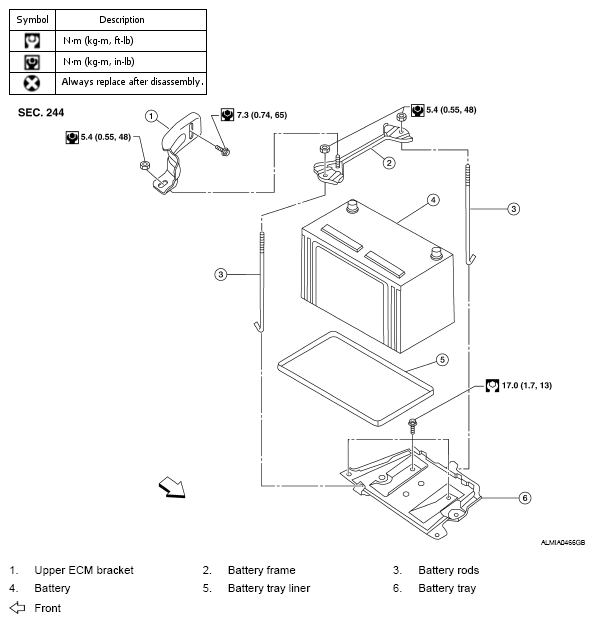

Fig 1: Exploded View Of Battery With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
