Headlamps Do Not Turn OFF

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-OFF linked with operation of lighting switch.

When lighting switch is OFF: HEAD LAMP SW 1 OFF

position: HEAD LAMP SW 2 OFF

OK or NG

1. OK: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".
2. NG: GO TO 2.

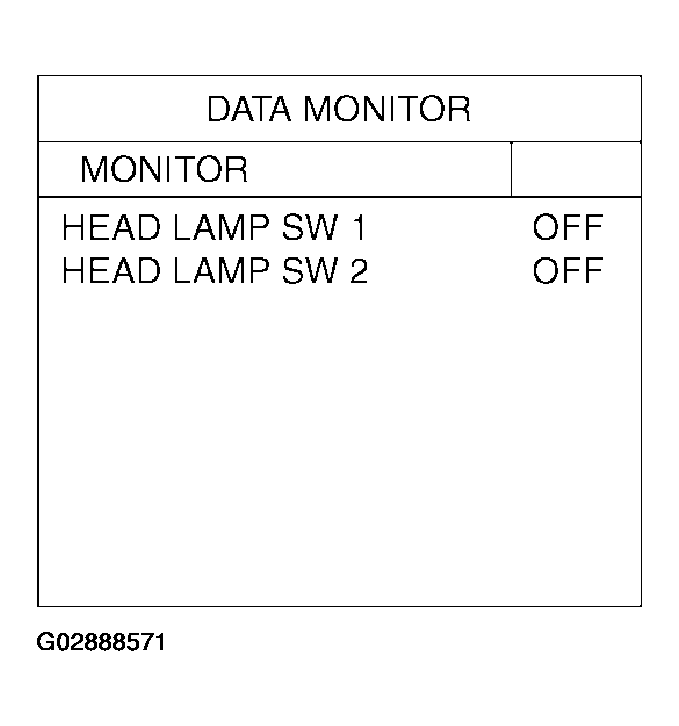

   Fig 1: Scan Tool Display "Data Monitor"

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS ".

OK or NG

1. OK: GO TO 3.
2. NG: Replace switch. Refer to "REMOVAL & INSTALLATION ".

Select "BCM" by CONSULT-II and perform self-diagnosis for BCM.

Display of self-diagnosis results

1. NO DTC: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".
2. CAN COMM CIRCUIT: Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) ".

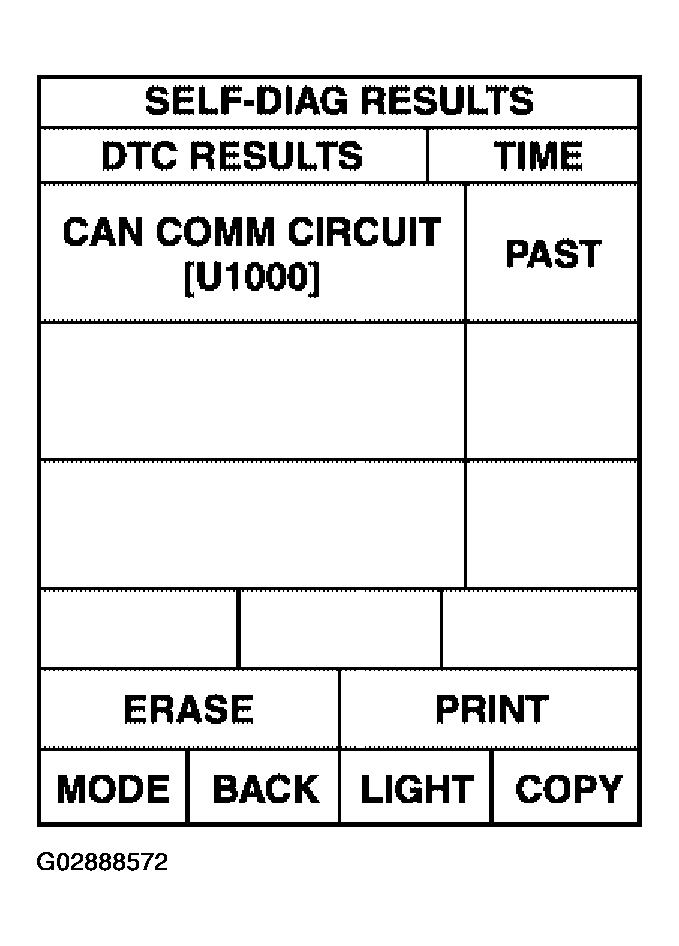

   Fig 2: Scan Tool Display "Self-Diag Results"

   Courtesy of NISSAN MOTOR CO., U.S.A.
