Removal & Installation

  1. Remove the steering column cover. Refer to "STEERING COLUMN ".
  2. Pinch tabs and slide out lighting and turn signal switch (combination switch). Installation is in the reverse order of removal.

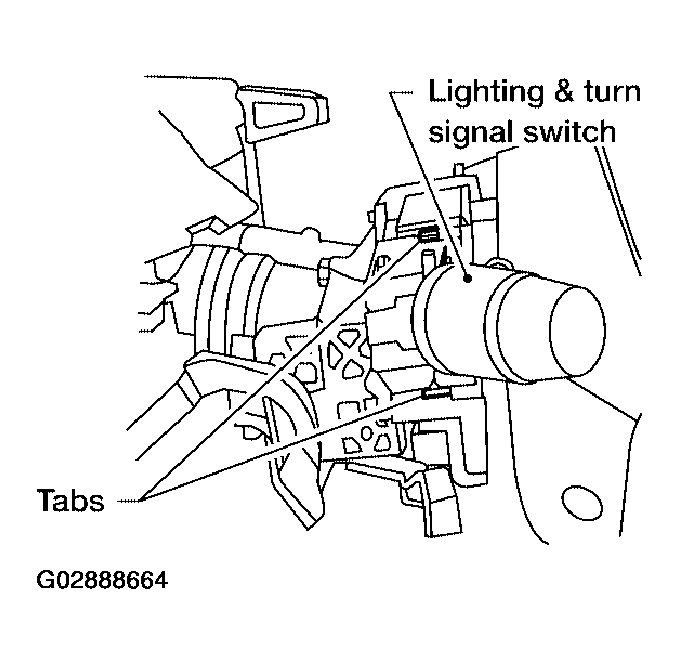

    Fig 1: Pinch Tabs, Slide Out Lighting & Turn Signal Switch
    G02888664Courtesy of NISSAN MOTOR CO., U.S.A.
