- 2WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove propeller shaft from vehicle. Refer to "COMPONENTS ".
  2. Support A/T assembly with a jack.
  3. Remove rear engine mounting member. Tighten rear engine mounting member to the specified torque. Refer to "REAR ENGINE MOUNTING ".
    Fig 1: Removing Rear Engine Mounting Member
    G02033142Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove rear extension assembly.
    1. Remove parking gear and needle bearing.
      CAUTION: Insert your hand between rear extension and transmission case. Detach rear extension assembly while holding parking gear and needle bearing by hand.
  5. Replace parking components if necessary.
  6. Reinstall any part removed.
    • Always use new sealing parts.

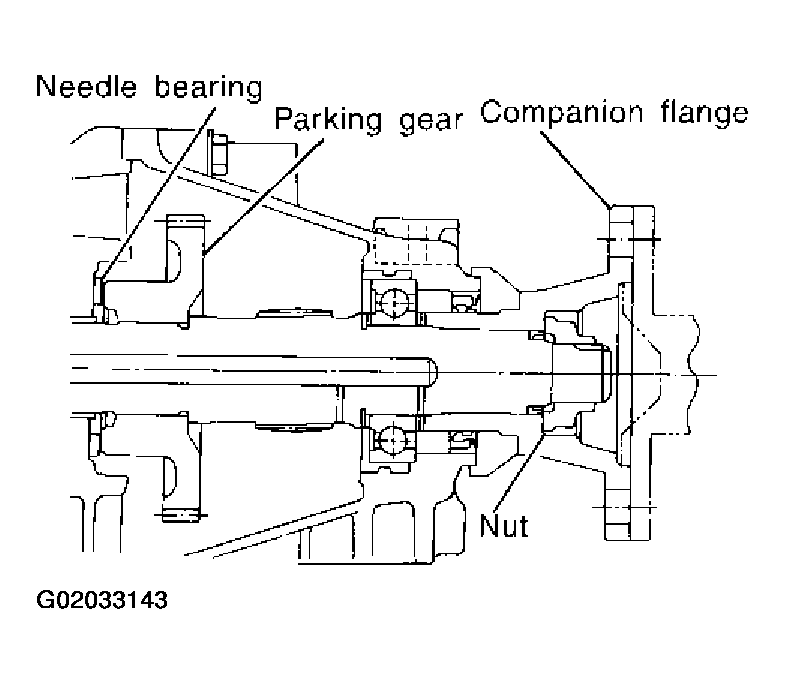

      Fig 2: Identifying Parking Gear, Needle Bearing And Companion Flange
      G02033143Courtesy of NISSAN MOTOR CO., U.S.A.
