Park/Neutral Position Switch

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 1 and 2 and between terminals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through each position.

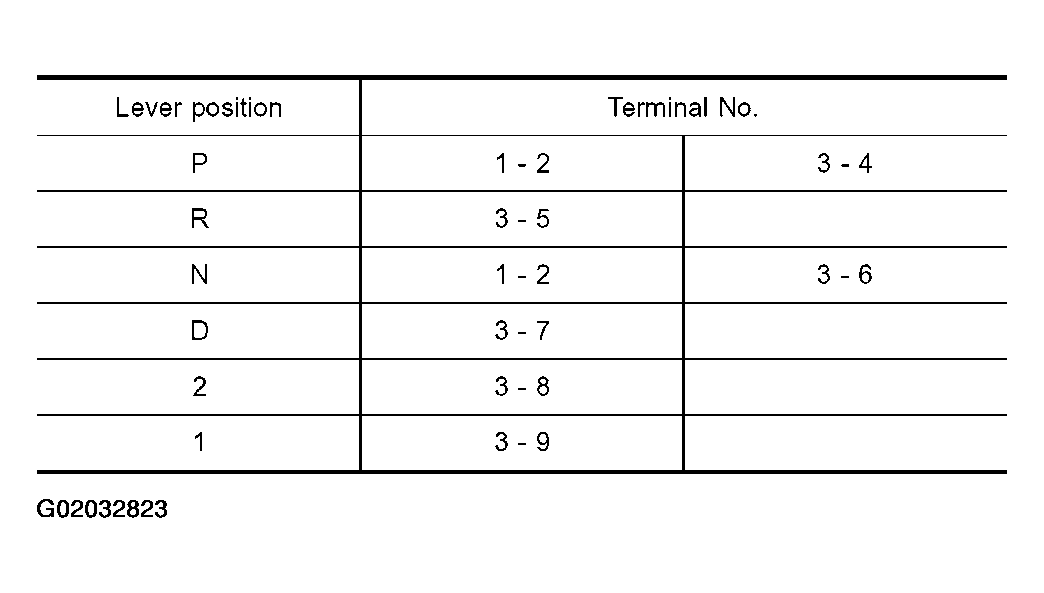

Fig 1: PNP Switch Inspection Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

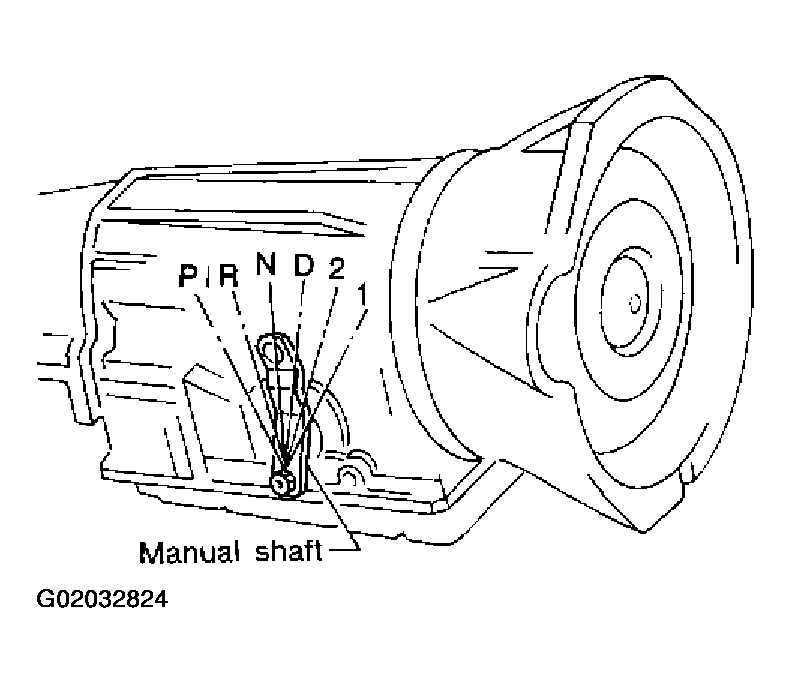

Fig 2: Identifying Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

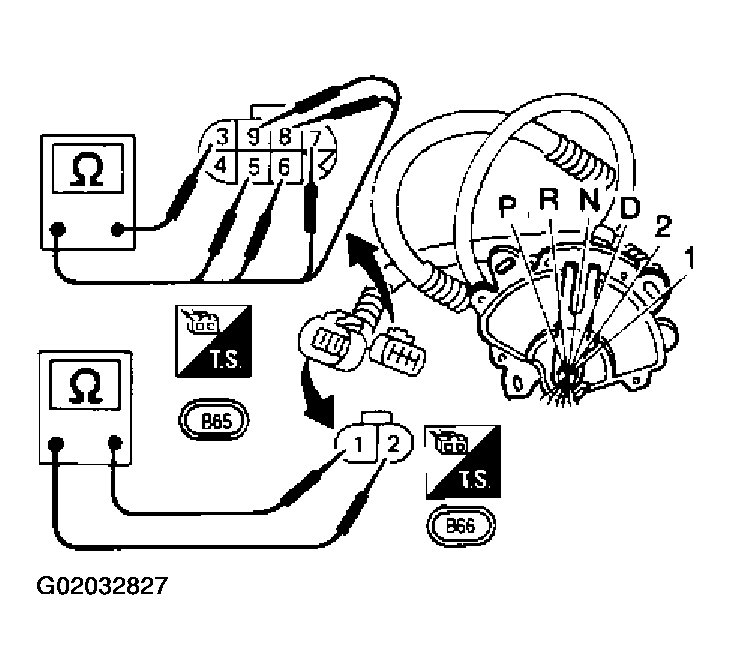

Fig 3: Identifying PNP Switch And Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, check again with manual control linkage disconnected from manual shaft of A/T assembly. Refer to step 1.
If OK on step 2, adjust MANUAL CONTROL LINKAGE ADJUSTMENT .

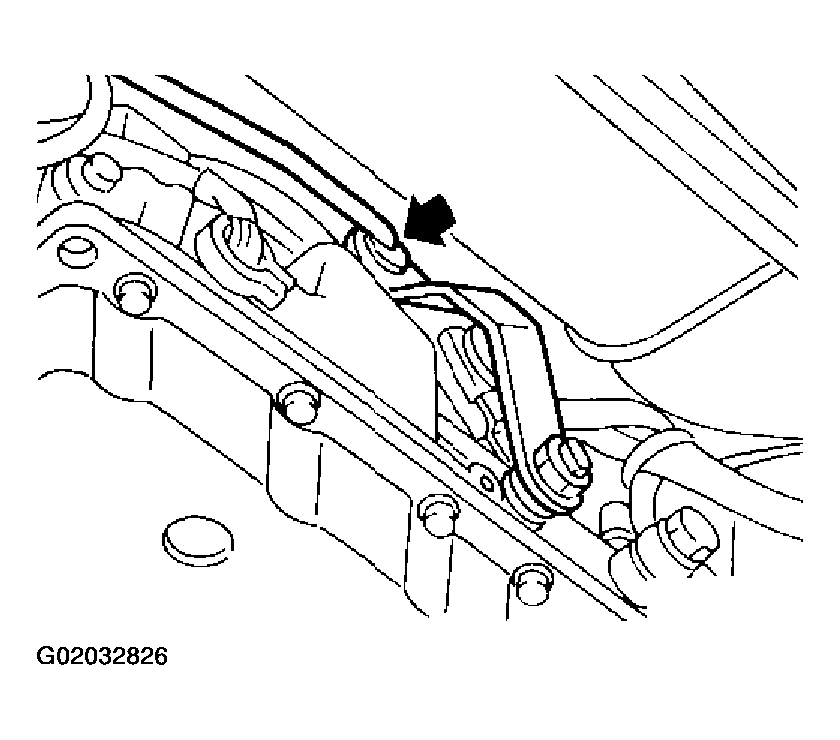

Fig 4: Locating Control Linkage
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG on step 2, remove PNP switch from A/T and check continuity of PNP switch terminals. Refer to step 1.
If OK on step 4, adjust PNP switch. Refer to - 2WD MODEL - .
If NG on step 4, replace PNP switch.

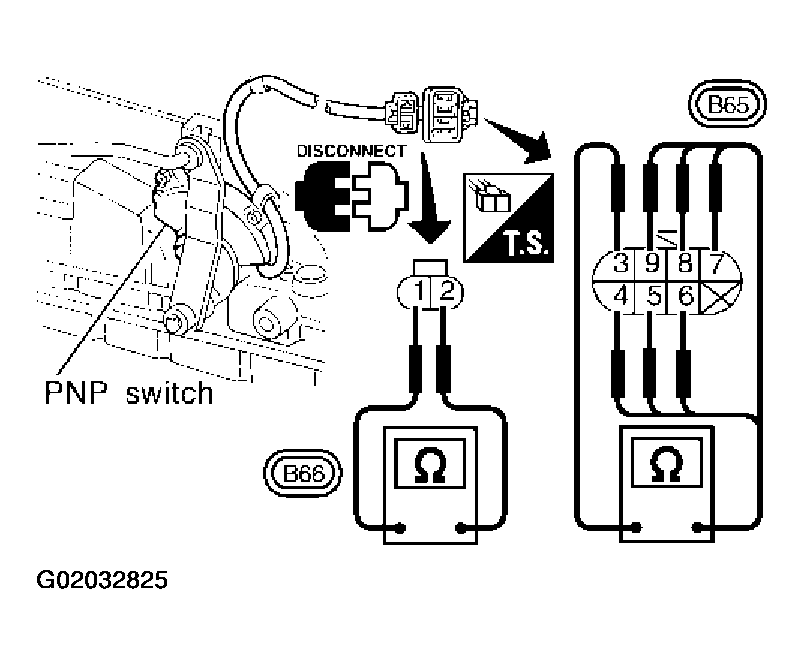

Fig 5: Checking Continuity Of PNP Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
