CHECK VEHICLE SECURITY HEADLAMP ALARM OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "THEFT WAR ALM" with CONSULT-II.
2. Select "HEADLAMP" and touch "ON".

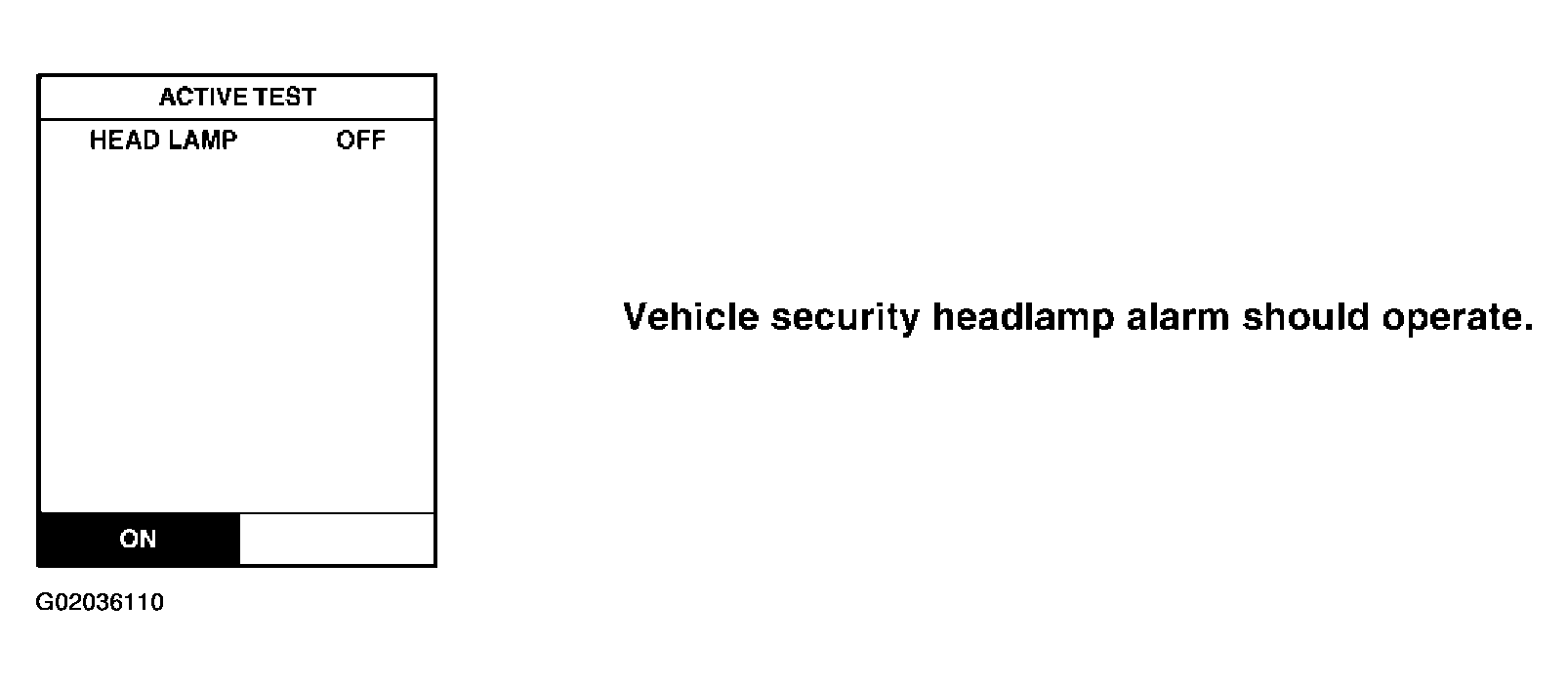

  Fig 1: Checking Vehicle Security Headlamp Alarm Operation - With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Disconnect smart entrance control unit connector.
2. Apply ground to smart entrance control unit harness connector M121, M123 terminals 21 (PU/R) and 59 (PU/W).

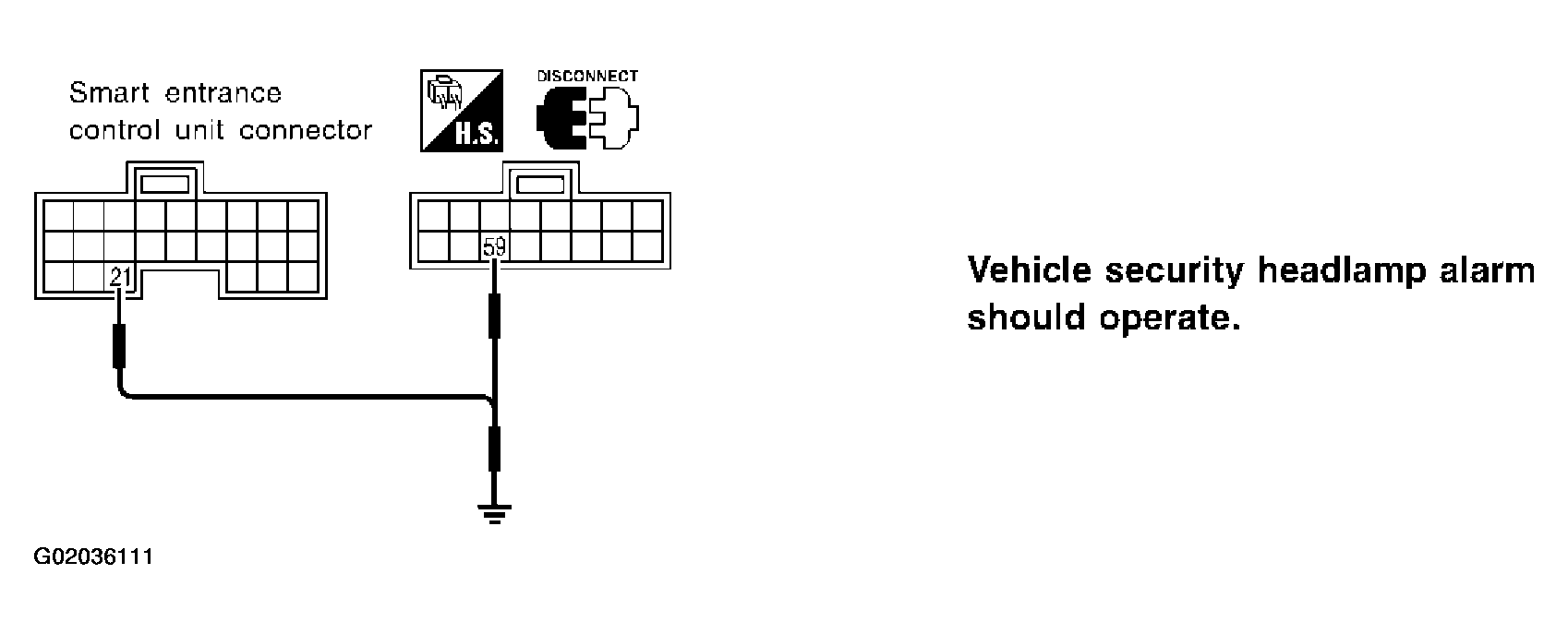

  Fig 2: Checking Vehicle Security Headlamp Alarm Operation - Without CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to wiring diagram in WIRING DIAGRAM - VEHSEC .

OK or NG
1. OK: Headlamp is OK.
2. NG: GO TO 2 .
CHECK HEADLAMP OPERATION
Does headlamp come on when turning lighting switch "ON"?
1. Yes: Check harness for open or short between headlamp relay and smart entrance control unit.
2. No: Check headlamp system. Refer to HEADLAMP (FOR USA) or HEADLAMP (FOR CANADA) DAYTIME LIGHT SYSTEM .
