Wiring Diagram - VEHSEC

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

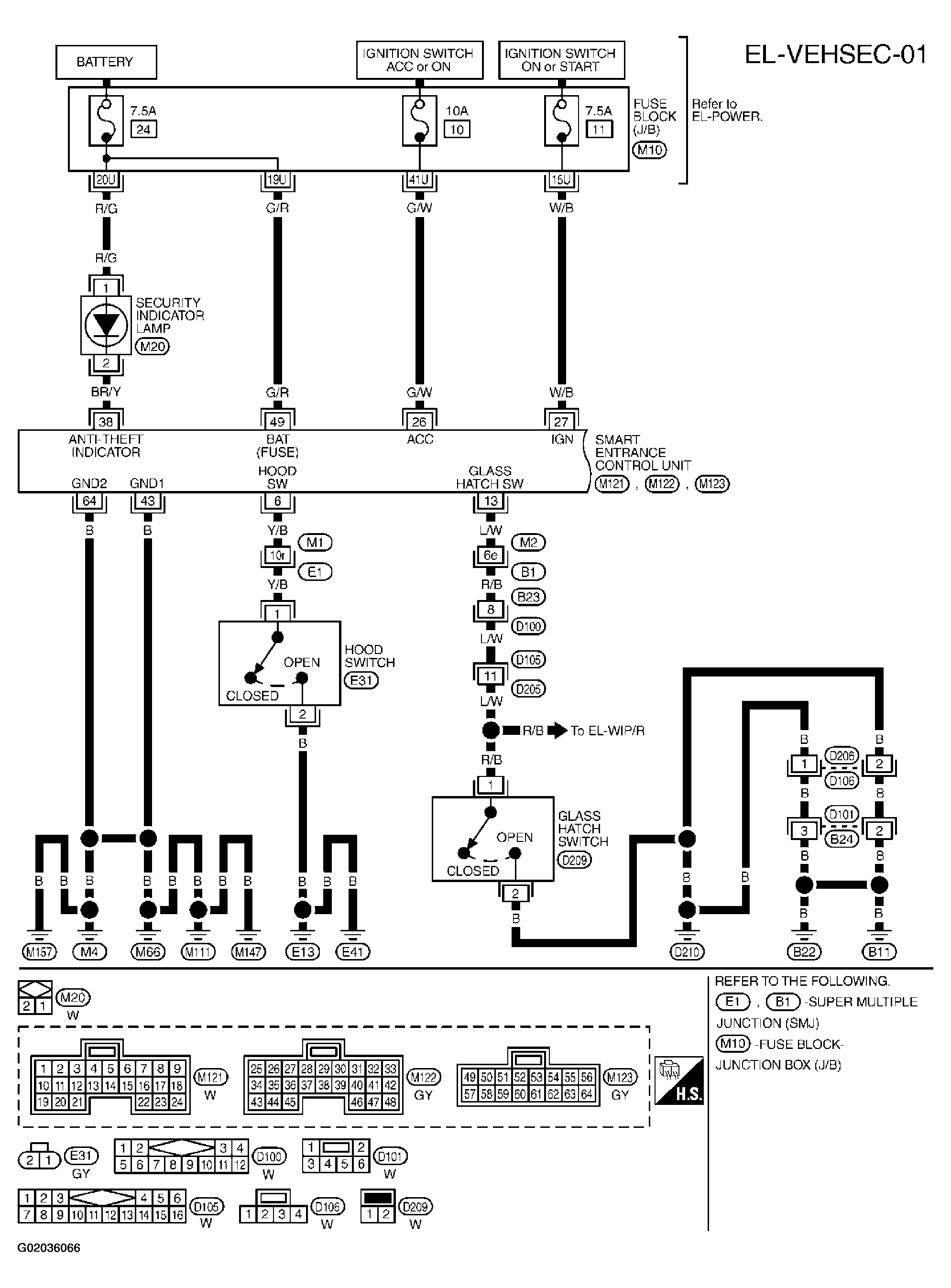

Fig 1: Wiring Diagram - VEHSEC - 01

Courtesy of NISSAN MOTOR CO., U.S.A.

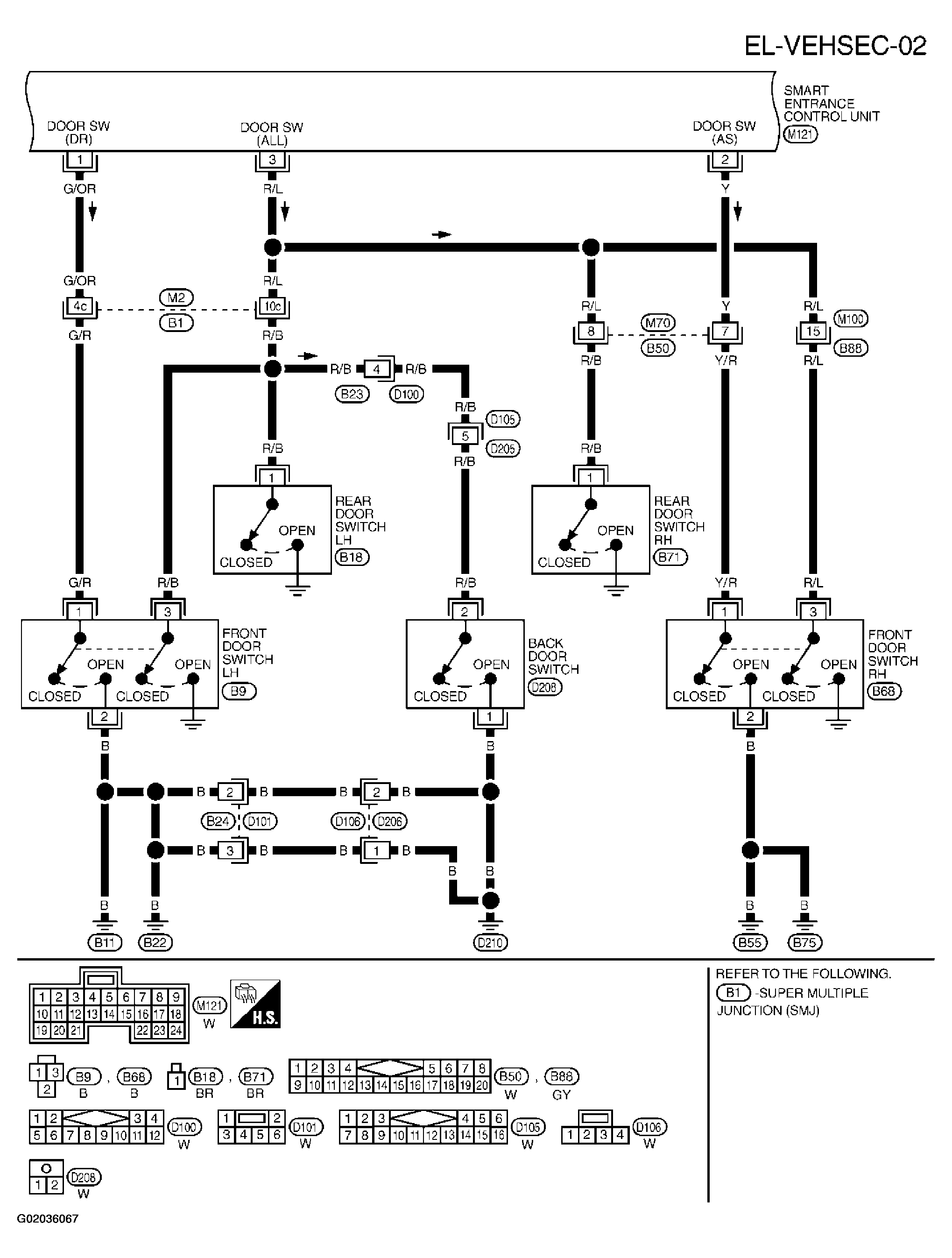

Fig 2: Wiring Diagram - VEHSEC - 02

Courtesy of NISSAN MOTOR CO., U.S.A.

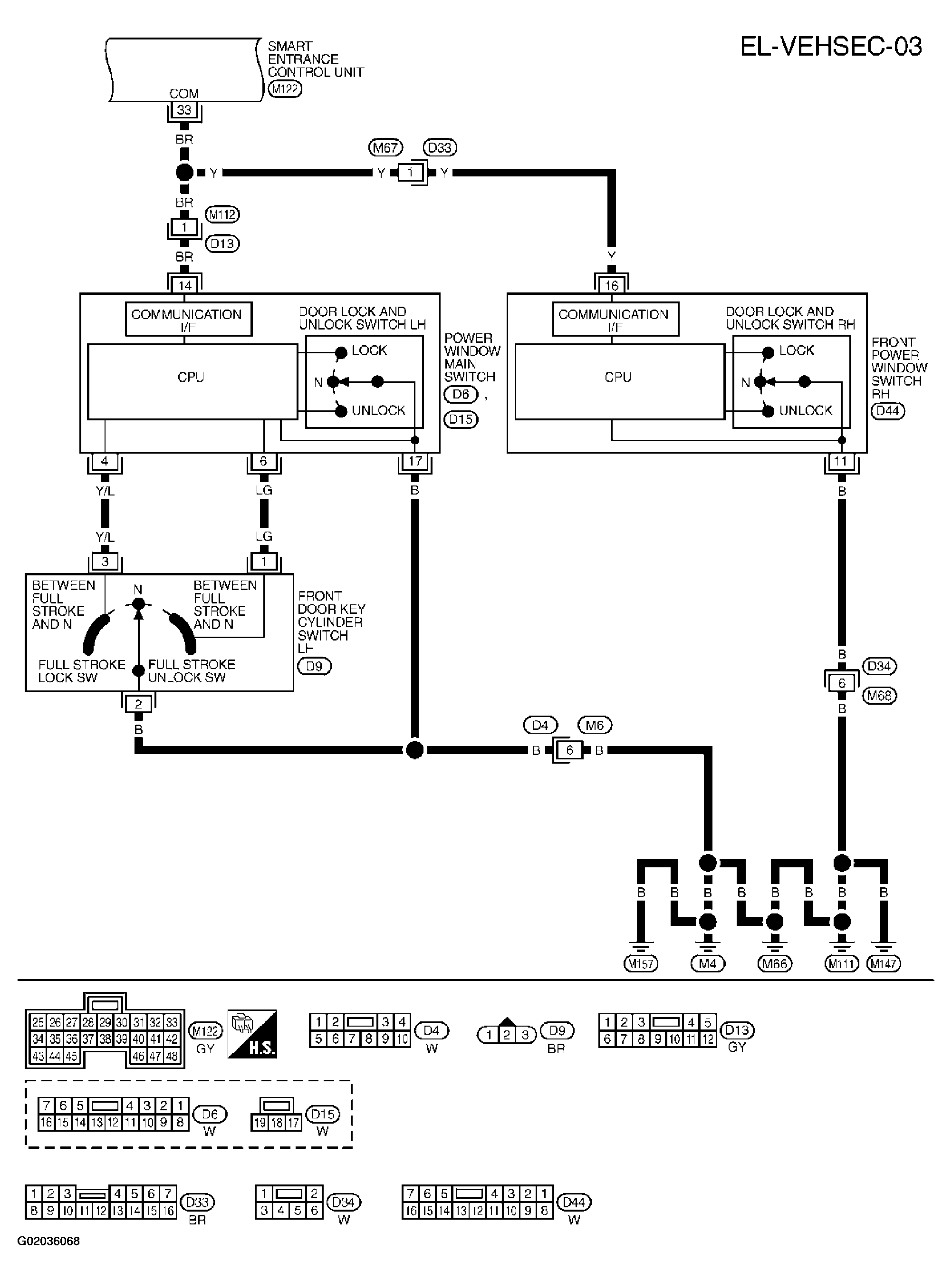

Fig 3: Wiring Diagram - VEHSEC - 03

Courtesy of NISSAN MOTOR CO., U.S.A.

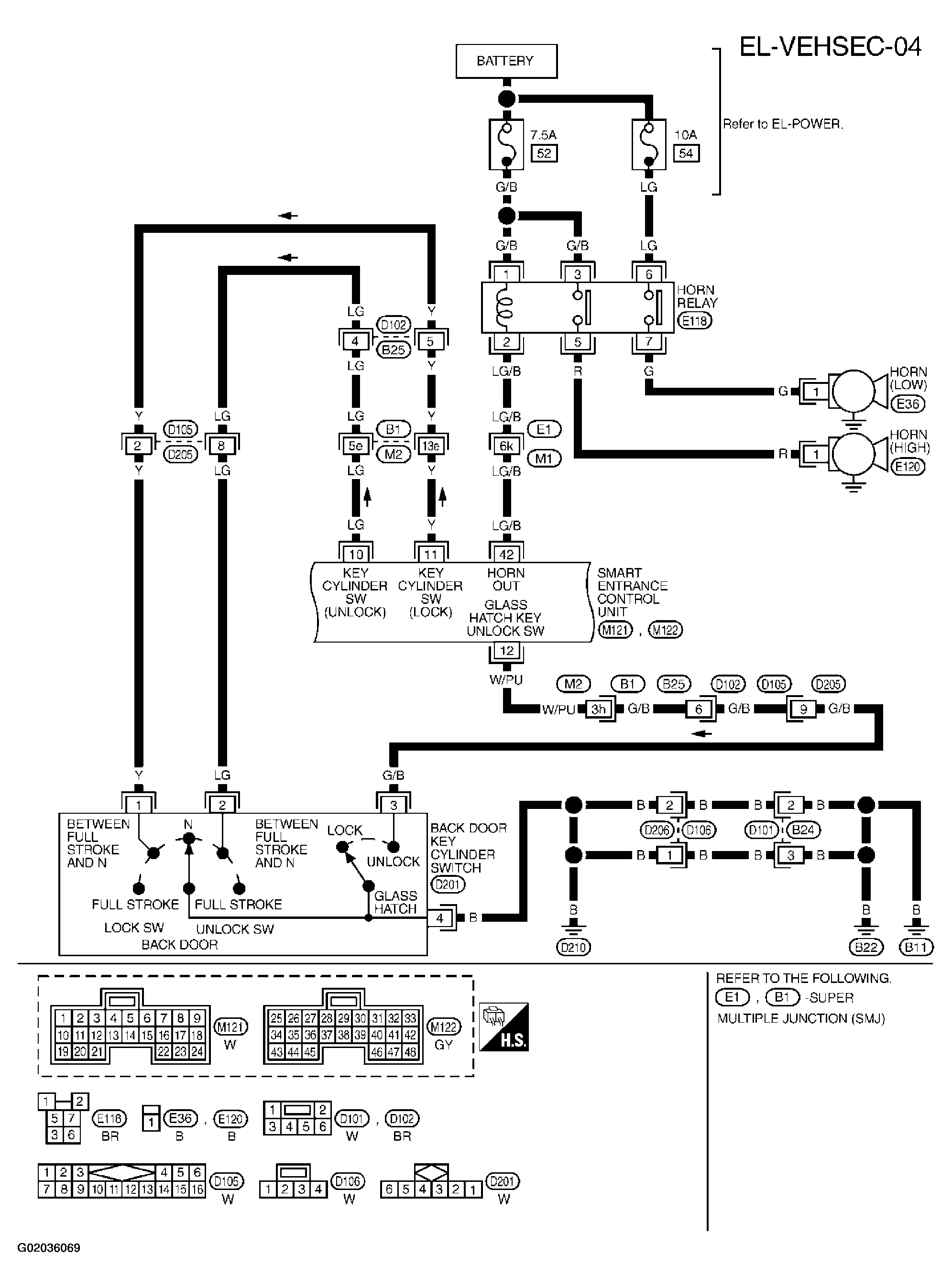

Fig 4: Wiring Diagram - VEHSEC - 04

Courtesy of NISSAN MOTOR CO., U.S.A.

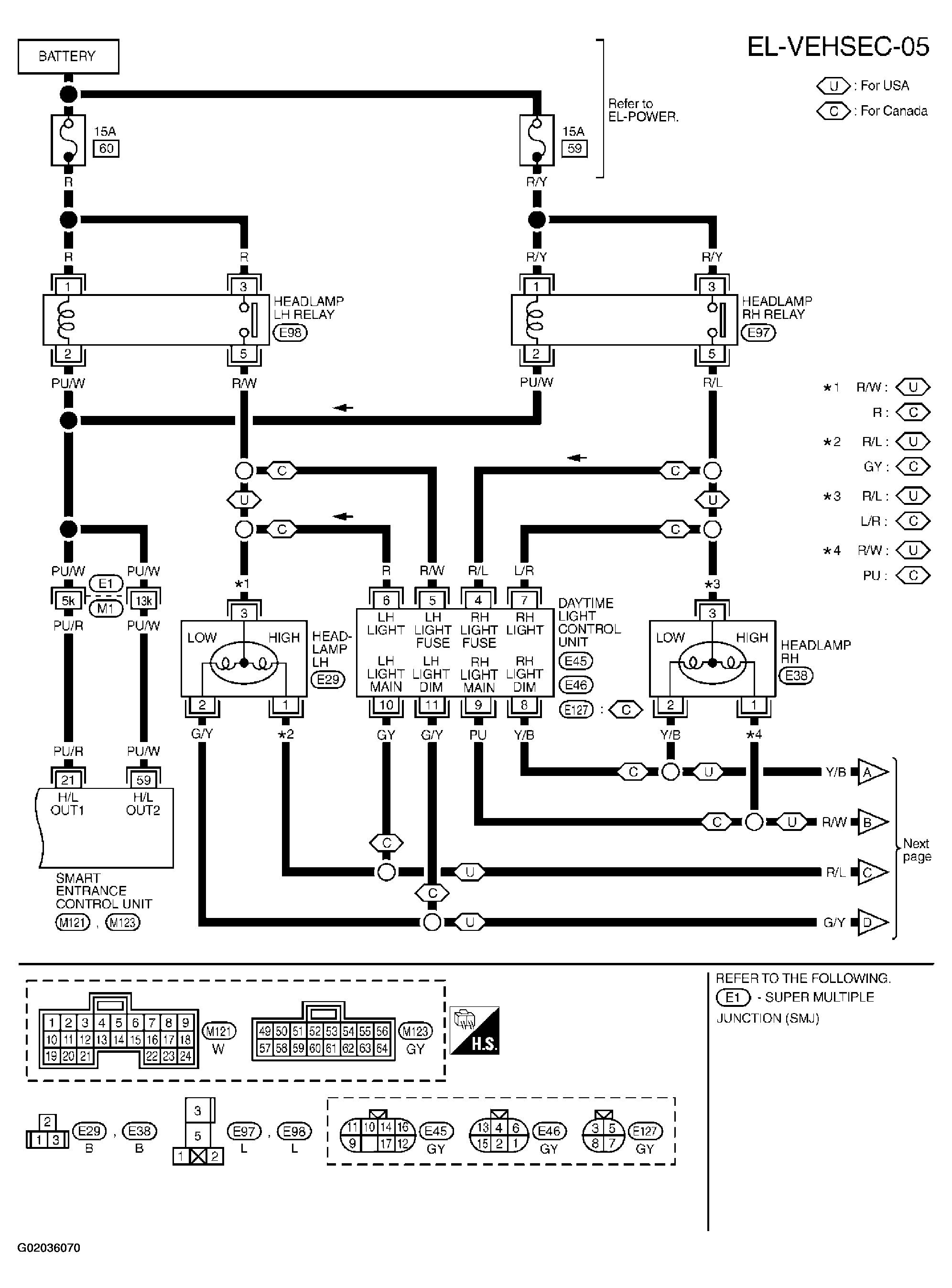

Fig 5: Wiring Diagram - VEHSEC - 05

Courtesy of NISSAN MOTOR CO., U.S.A.

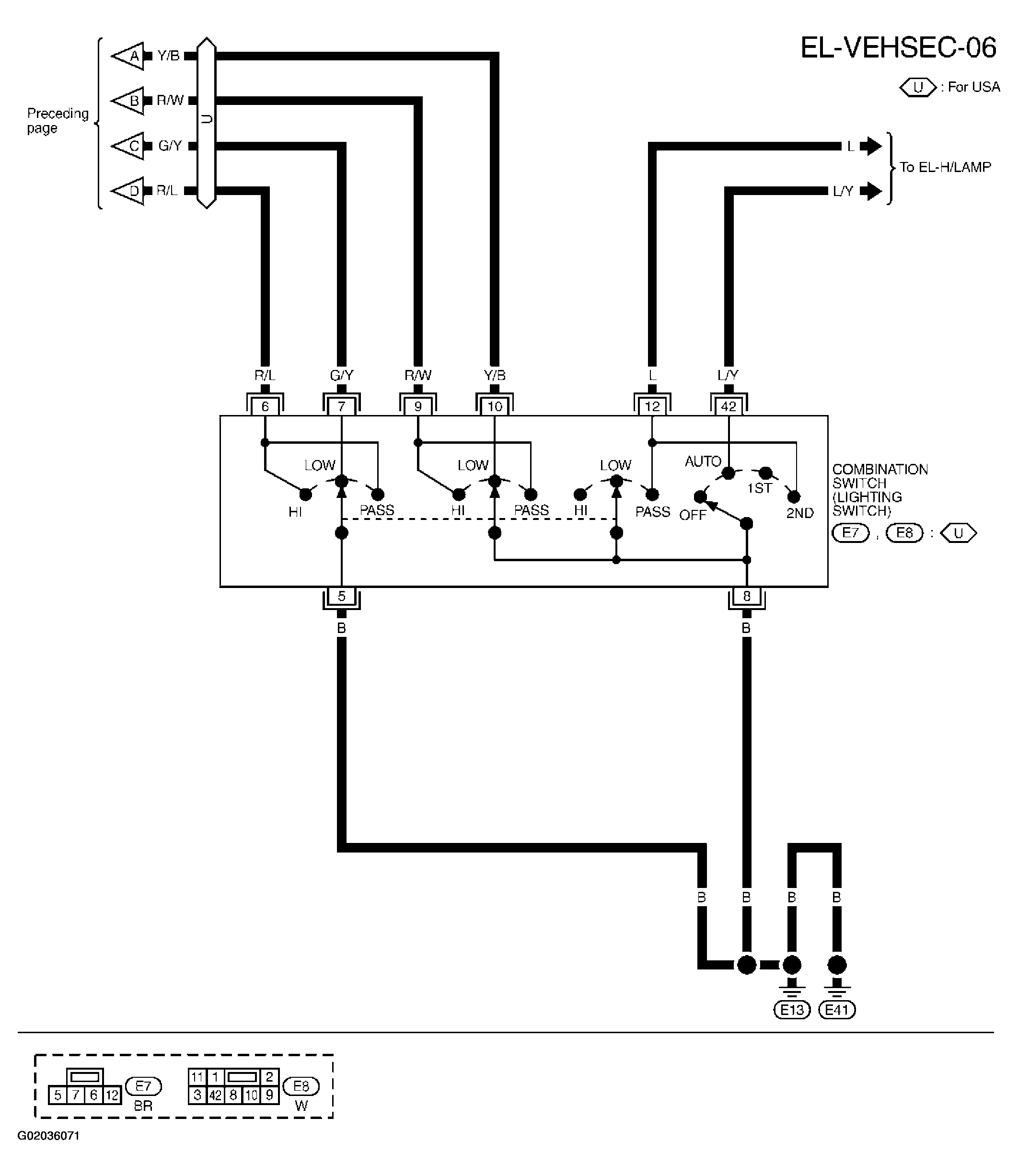

Fig 6: Wiring Diagram - VEHSEC - 06

Courtesy of NISSAN MOTOR CO., U.S.A.
