Security Indicator Lamp Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INDICATOR LAMP OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "THEFT WAR ALM" with CONSULT-II.
2. Select "THEFT IND" and touch "ON".

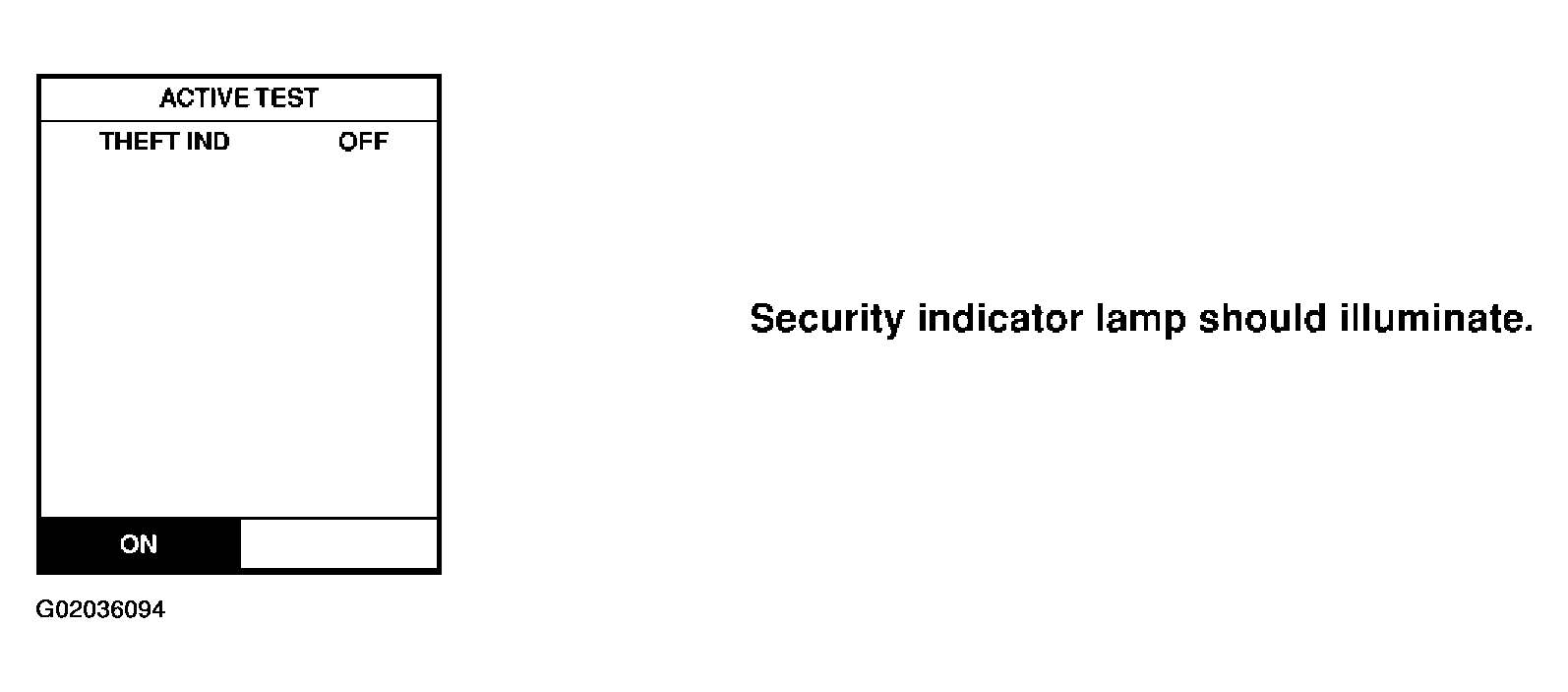

  Fig 1: Checking Indicator Lamp Operation - With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Disconnect smart entrance control unit harness connector.
2. Check voltage between smart entrance control unit harness connector M122 terminal 38 (BR/Y) and ground.

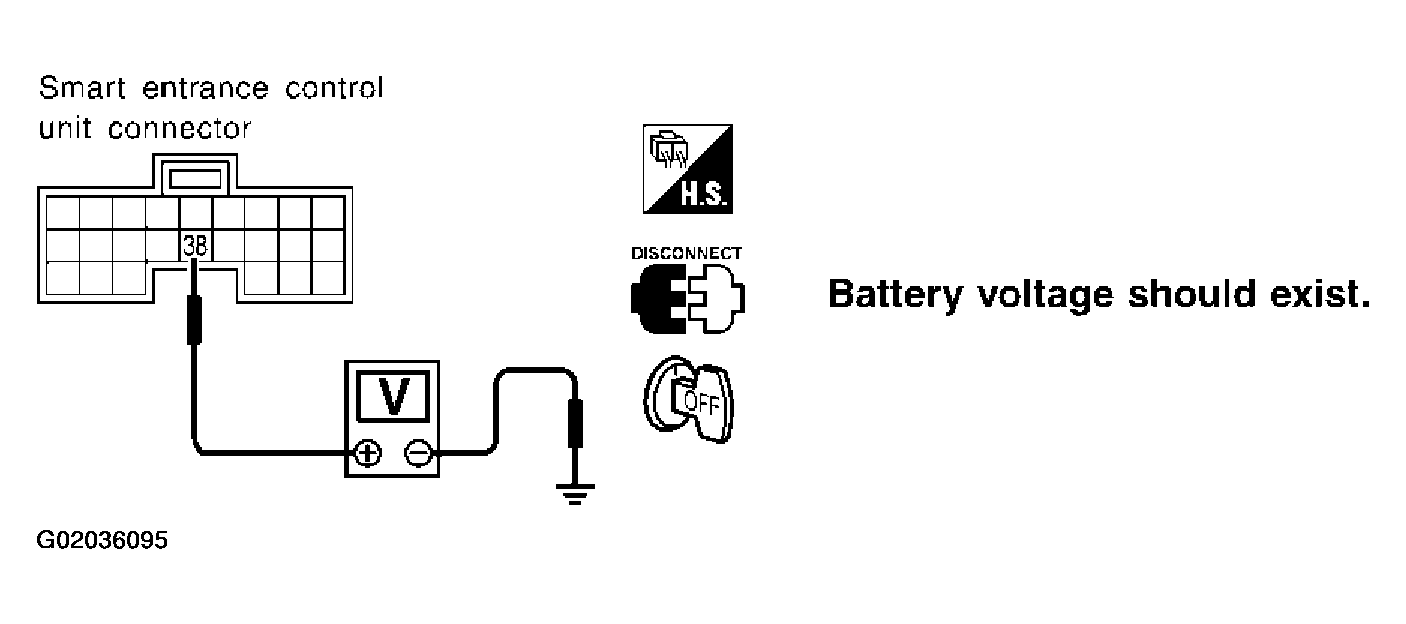

  Fig 2: Checking Indicator Lamp Operation - Without CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to wiring diagram in WIRING DIAGRAM - VEHSEC .

OK or NG
1. OK: Security indicator lamp is OK.
2. NG: GO TO 2 .
CHECK SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Apply 12V direct current to security indicator lamp harness connector M20 terminals 1 and 2.

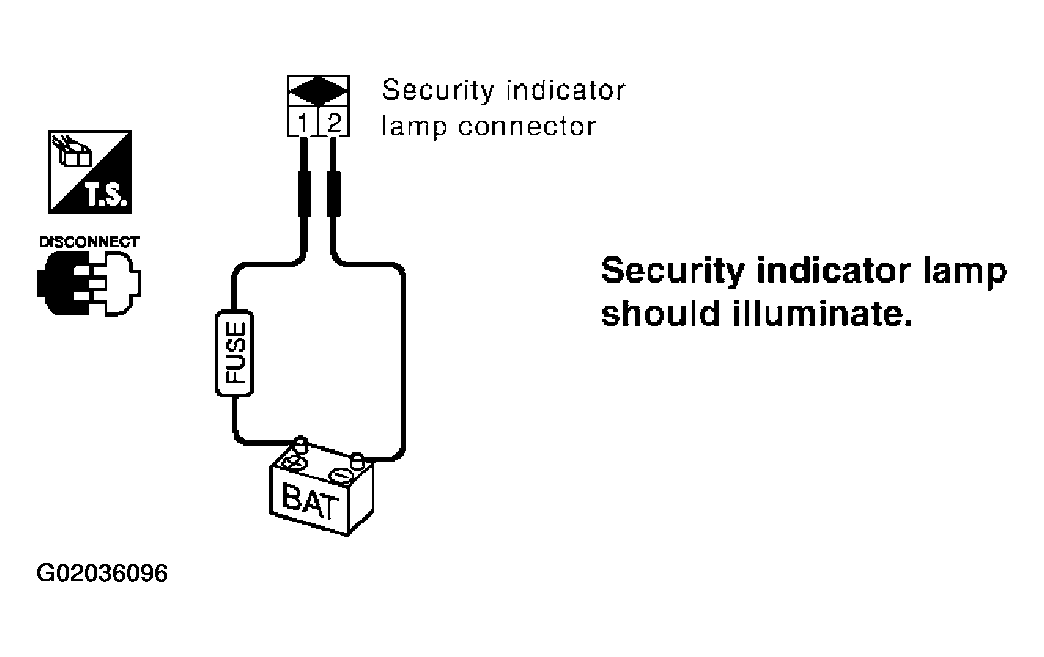

  Fig 3: Checking Security Indicator Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3 .
2. NG: Replace security indicator lamp.
CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp harness connector M20 terminal 1 (R/G) and ground.

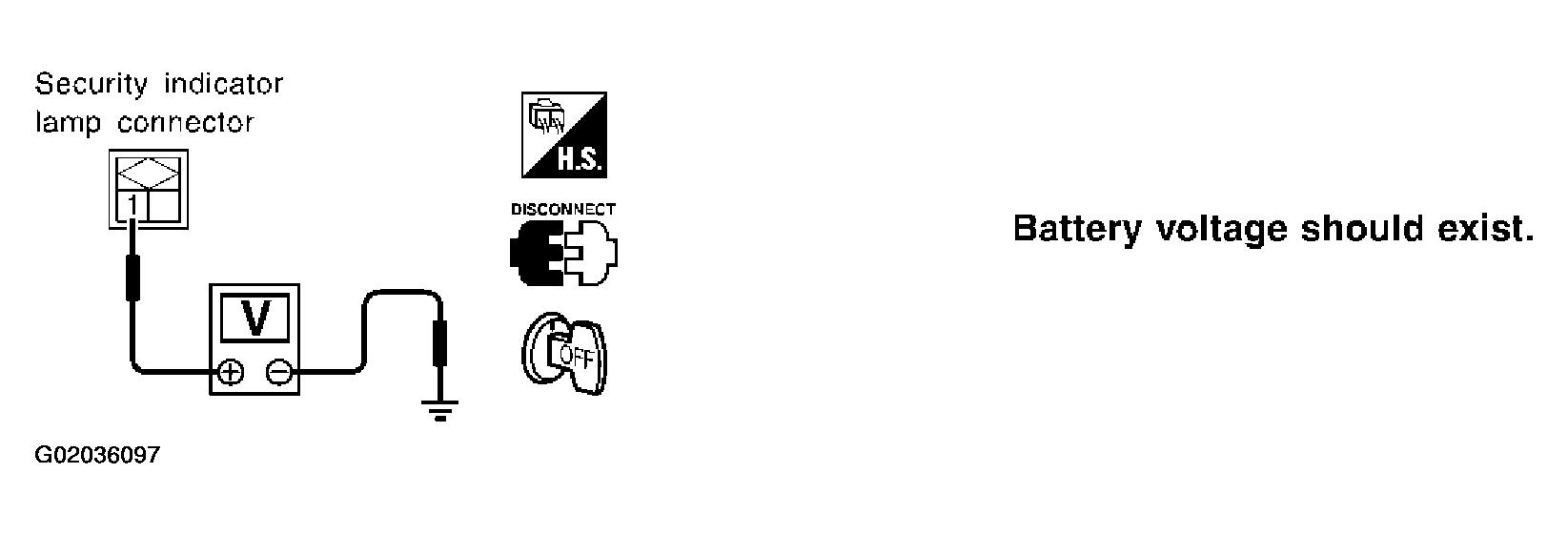

  Fig 4: Checking Power Supply Circuit For Security Indicator Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check harness for open or short between security indicator lamp and smart entrance control unit.
2. NG: Check the following.
  - 7.5A fuse [No. 24, located in fuse block (J/B)]
  - Harness for open or short between security indicator lamp and fuse
