Glass Hatch Switch Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GLASS HATCH SWITCH INPUT SIGNAL
Check voltage between smart entrance control unit harness connector M121 terminal 13 (L/W) and ground.

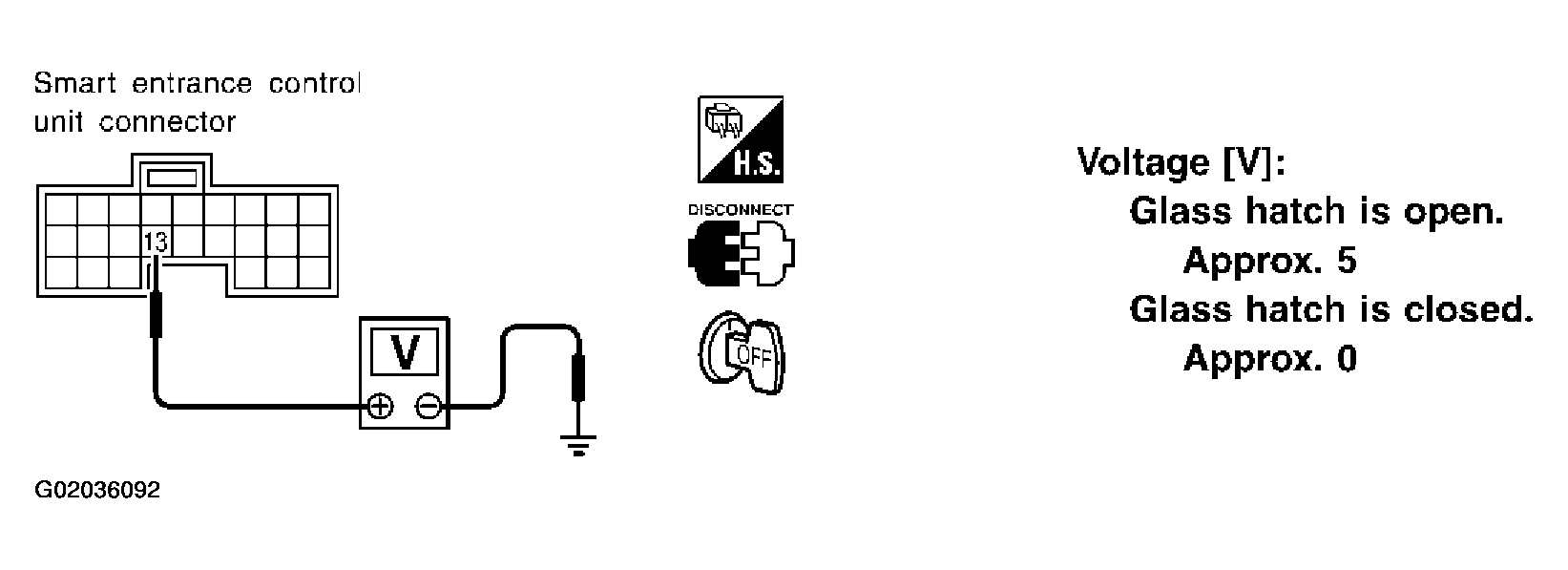

Fig 1: Checking Glass Hatch Switch Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - VEHSEC .

OK or NG
1. OK: Glass hatch switch is OK.
2. NG: GO TO 2 .
CHECK GLASS HATCH SWITCH
1. Disconnect glass hatch switch connector.
2. Check continuity between glass hatch switch terminals 1 and 2.

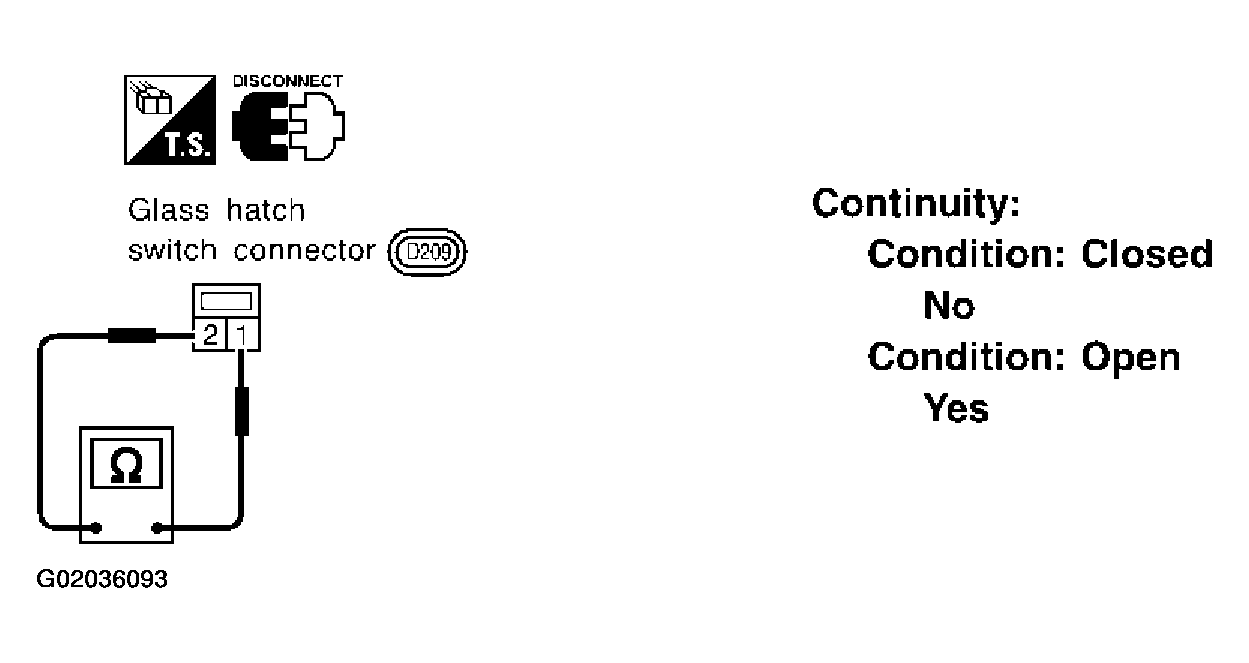

  Fig 2: Checking Glass Hatch Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check the following.
  - Glass hatch switch ground circuit
  - Harness for open or short between smart entrance control unit and glass hatch switch
2. NG: Replace glass hatch switch.
