Rear Oil Seal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear propeller shaft. Refer to "REAR PROPELLER SHAFT ".
  2. Remove rear oil seal.
  3. Install rear oil seal.
    • Before installing, apply multi-purpose grease to seal lip.
  4. Install rear propeller shaft.

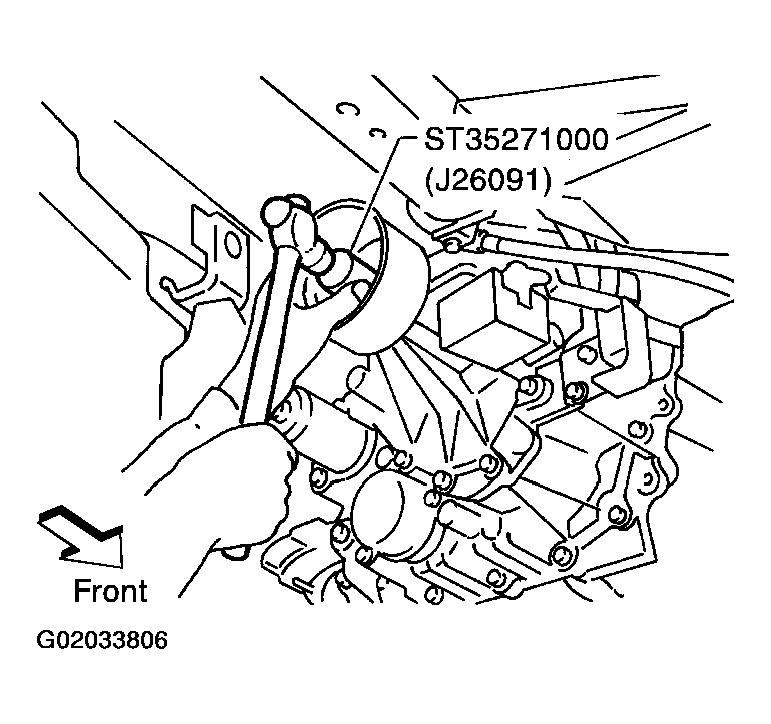

    Fig 1: Removing And Installing Rear Oil Seal
    G02033806Courtesy of NISSAN MOTOR CO., U.S.A.
