Rear Propeller Shaft

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

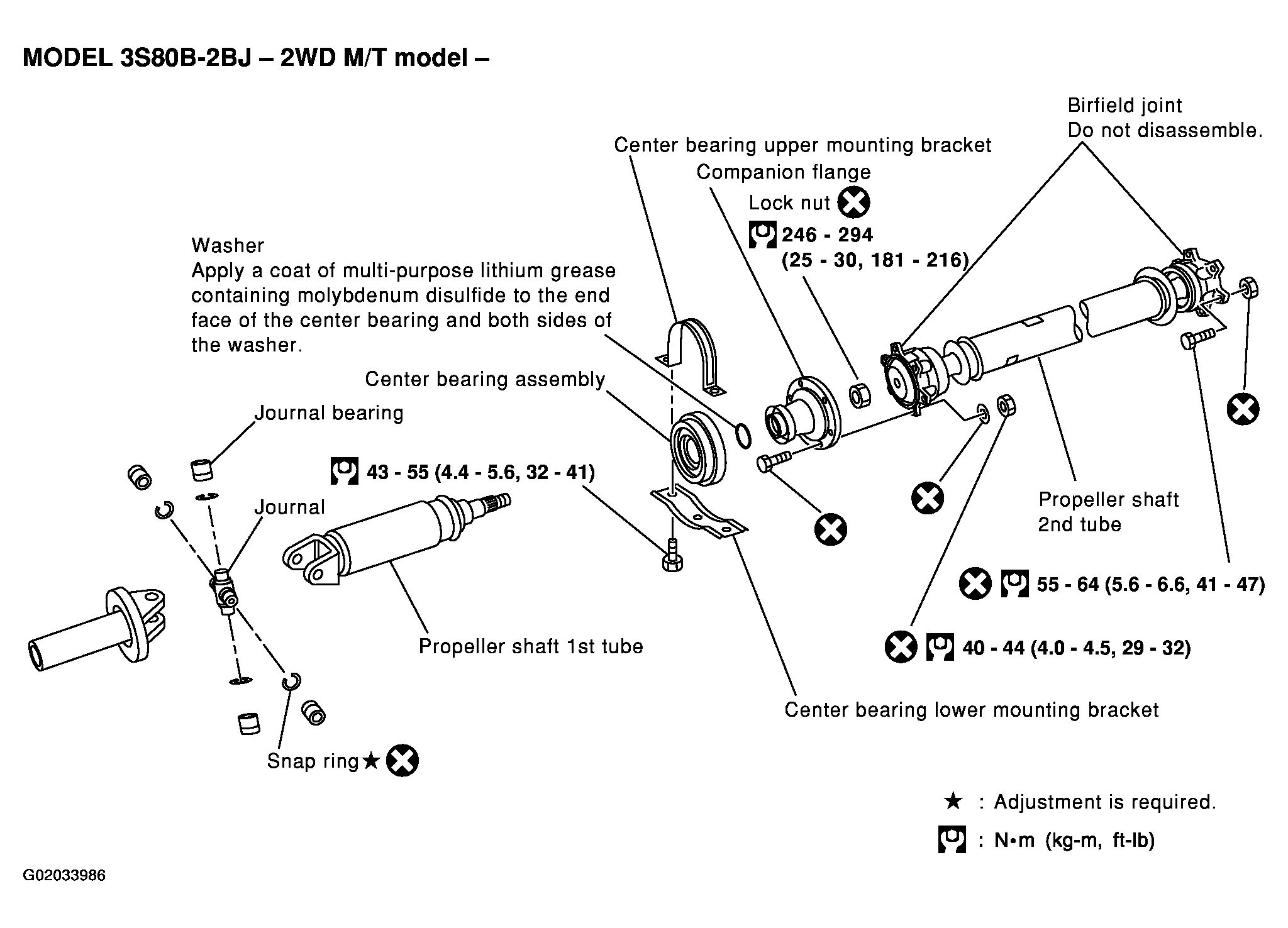

Fig 1: Exploded View Of Rear Propeller Shaft (2WD M/T MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.

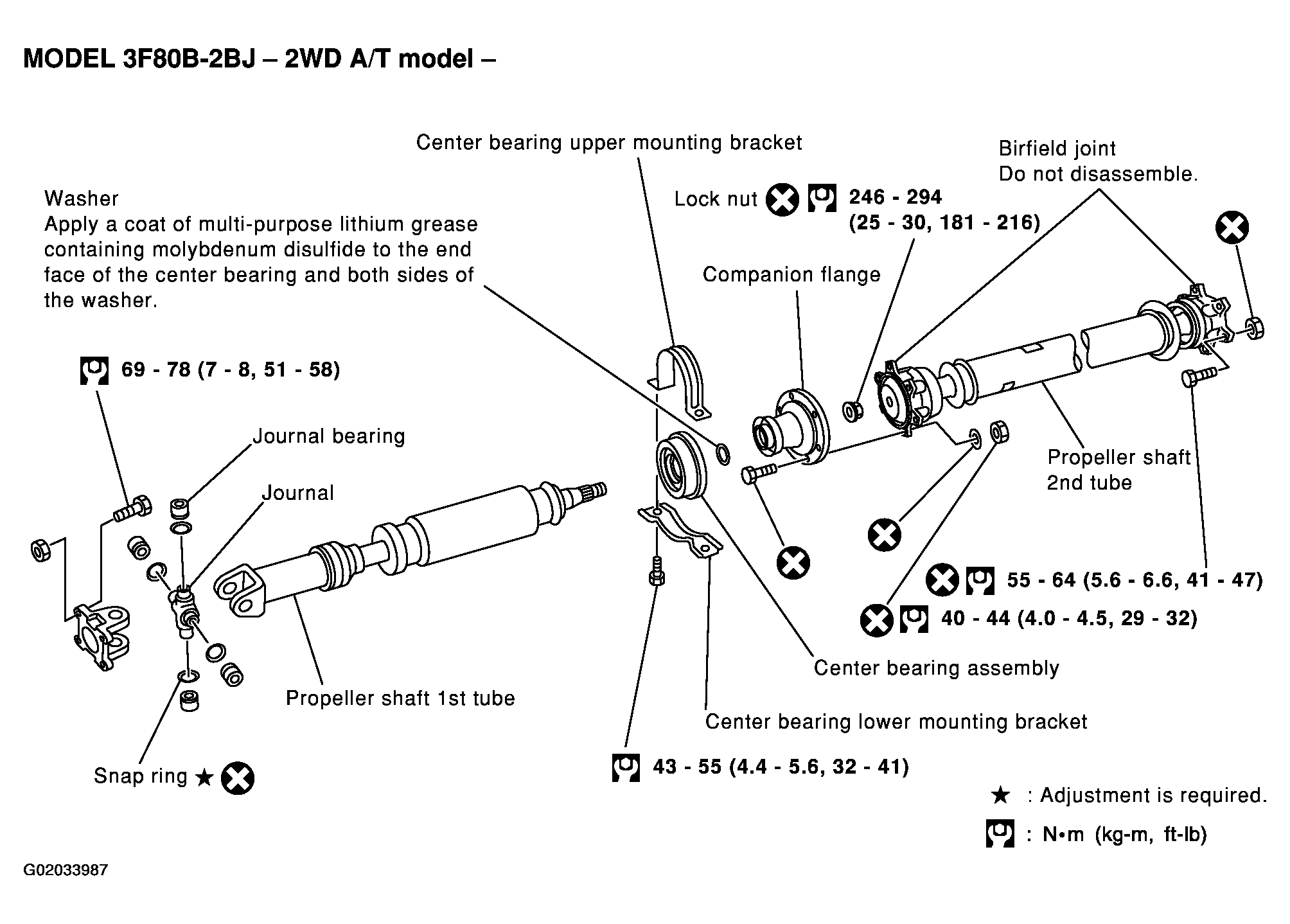

Fig 2: Exploded View Of Rear Propeller Shaft (2WD A/T MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.

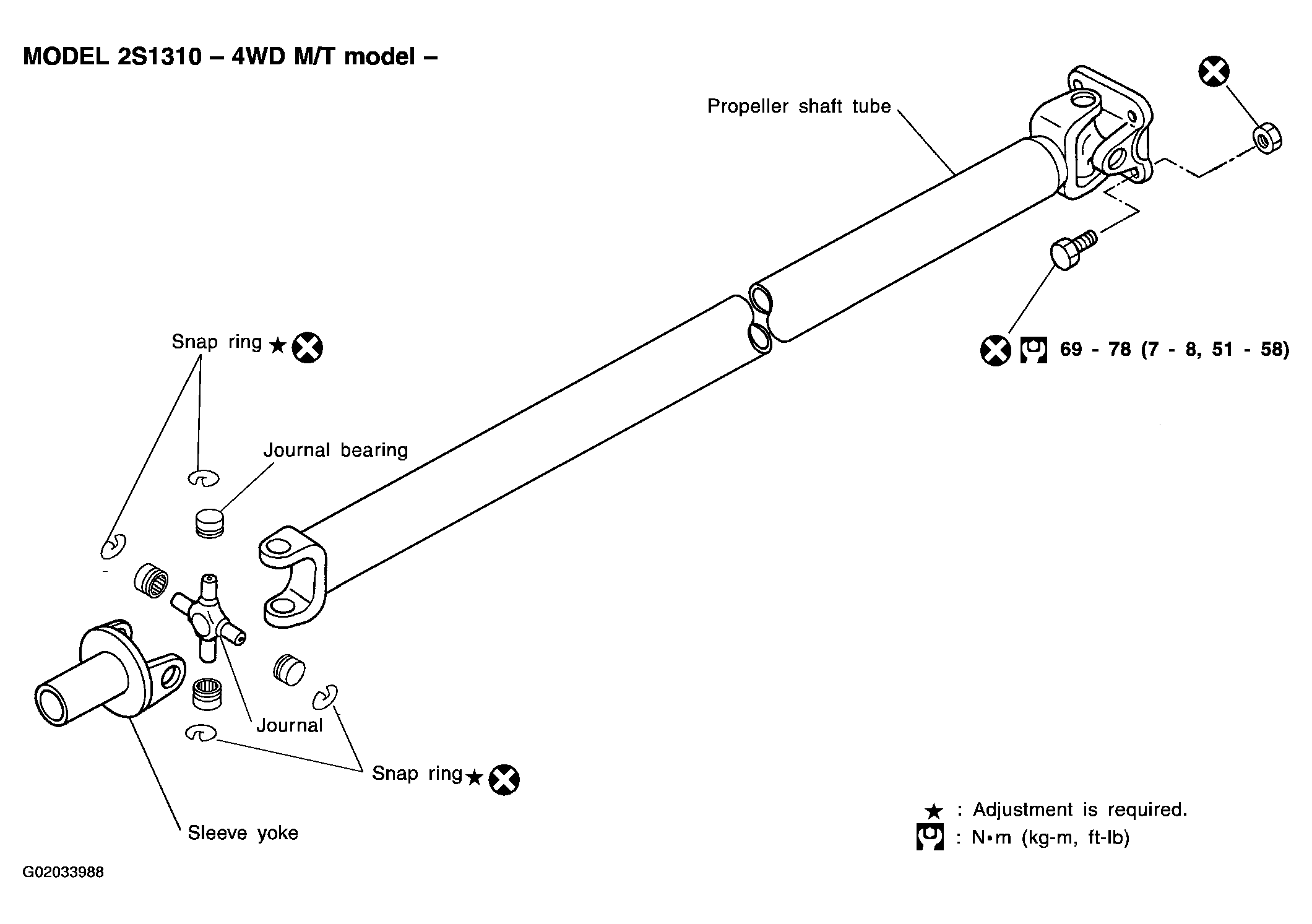

Fig 3: Exploded View Of Rear Propeller Shaft (4WD M/T MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View Of Rear Propeller Shaft (4WD M/T MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.
