Side Ventilator Grille LH

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid A. Refer to "CLUSTER LID A ".
  2. Remove side ventilator grille LH.

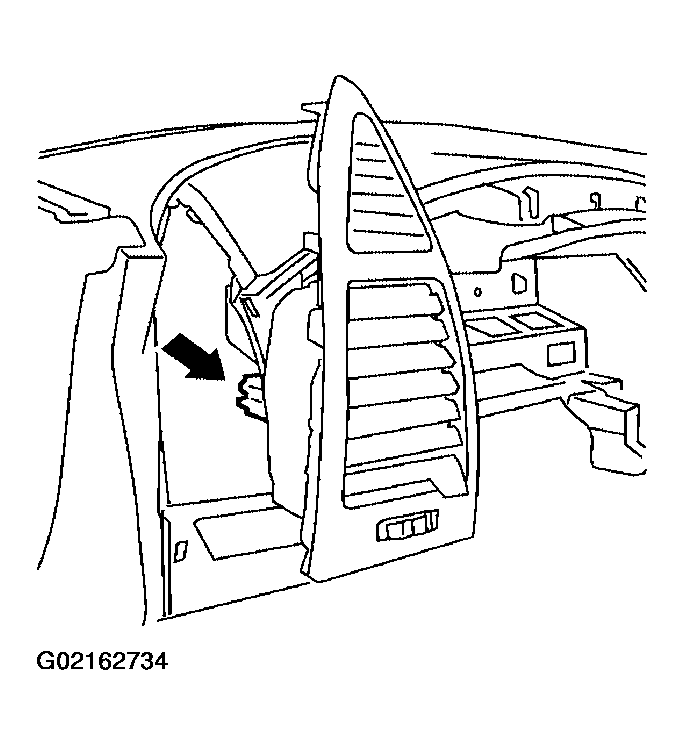

    Fig 1: Removing Side Ventilator Grille LH
    G02162734Courtesy of NISSAN MOTOR CO., U.S.A.
