Cluster Lid A

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver lower instrument panel. Refer to , "DRIVER LOWER INSTRUMENT PANEL ".
  2. Pull toward rear of vehicle to release clips.
    • Disconnect indicator lamp sockets.

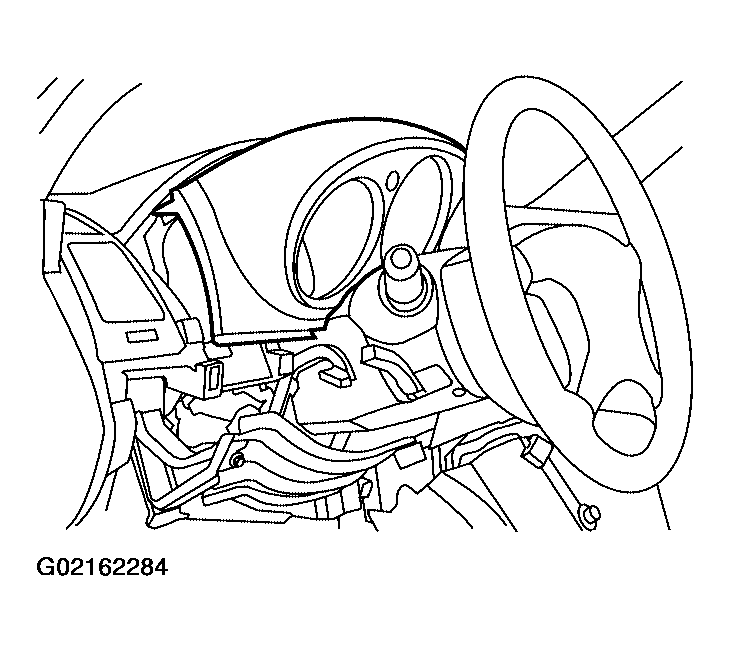

    Fig 1: Removing Cluster Lid A
    G02162284Courtesy of NISSAN MOTOR CO., U.S.A.
