Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver lower instrument panel assembly. Refer to "DRIVER LOWER INSTRUMENT PANEL "
  2. Disconnect the mode door motor connector.
  3. Remove the mode door motor screws and then remove mode door motor.

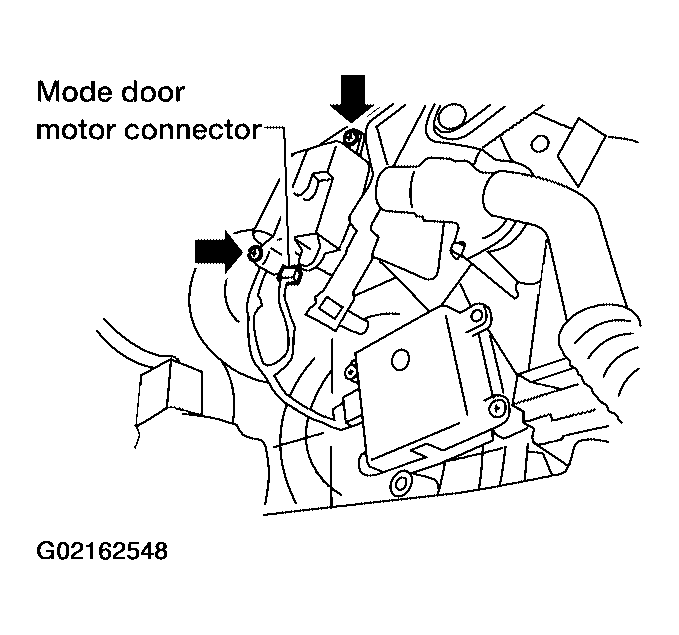

    Fig 1: Locating Mode Door Motor Screws
    G02162548Courtesy of NISSAN MOTOR CO., U.S.A.
