Driver Lower Instrument Panel

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to , "CLUSTER LID C ".
Remove fuse box cover.

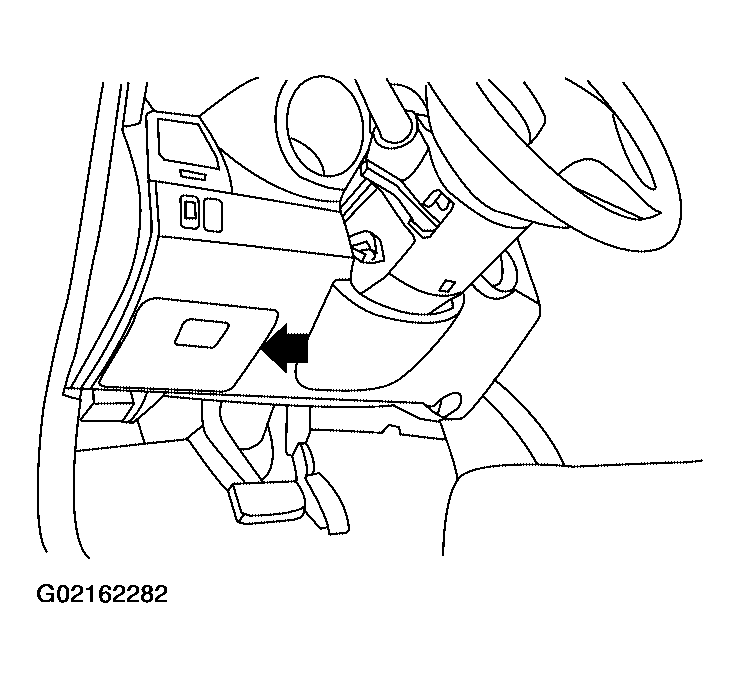

Fig 1: Identifying Fuse Box Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws using power tool, and lower instrument cover.
- Pull to disconnect clips.

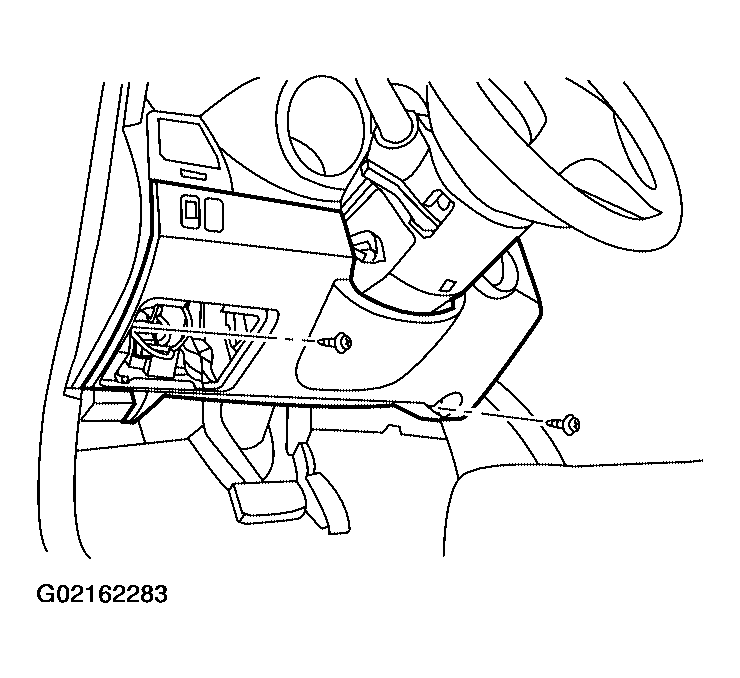

Fig 2: Removing Lower Instrument Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
