Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower driver instrument panel assembly. Refer to "DRIVER LOWER INSTRUMENT PANEL "
  2. Remove the in-vehicle sensor screw and then remove it.

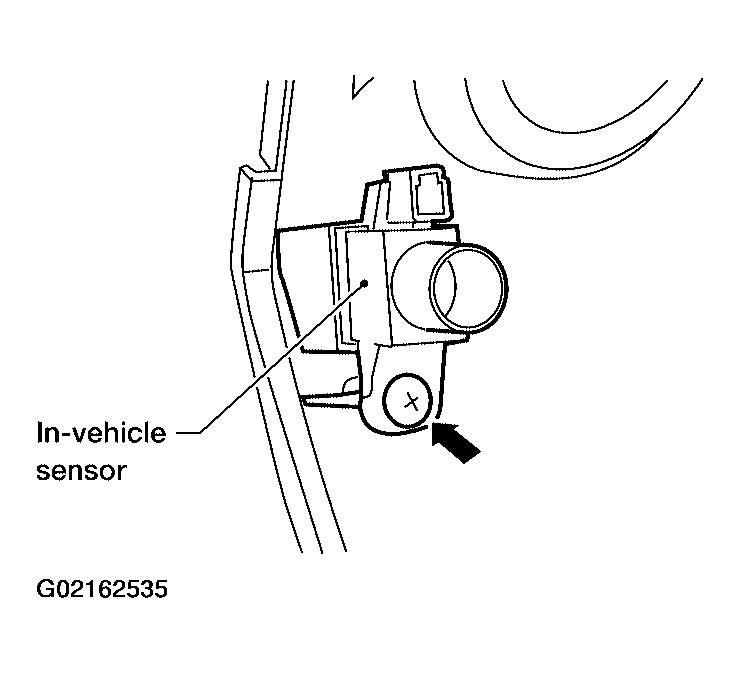

    Fig 1: Identifying In-Vehicle Sensor
    G02162535Courtesy of NISSAN MOTOR CO., U.S.A.
