Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid D. Refer to "CLUSTER LID D "
Remove the audio unit. Refer to "AUDIO UNIT "
Remove the A/C auto amp. screws and then remove it from the instrument panel.
Disconnect the connectors.

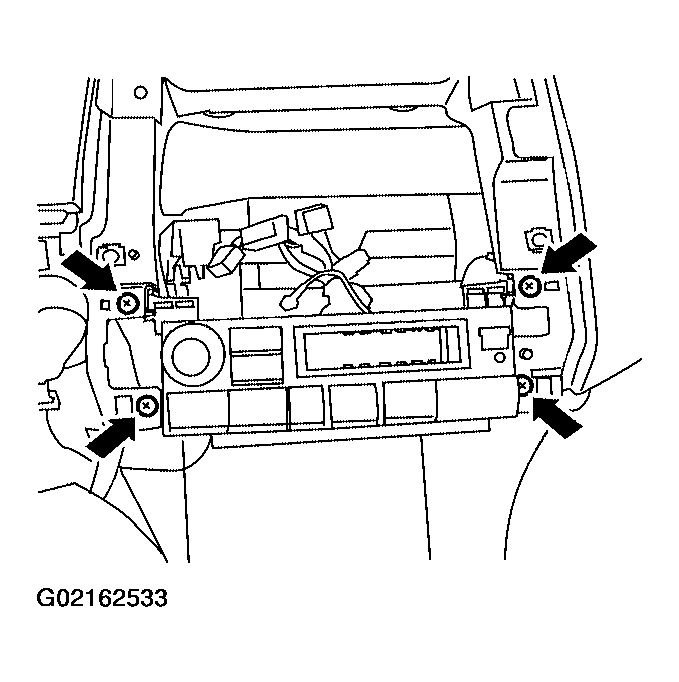

Fig 1: Locating A/C Auto Amp. Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
