Cluster Lid D

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to , "CLUSTER LID C ".
Remove cluster lid D.
- Remove screw using power-tool.
- Pull lid toward rear of vehicle to release clips.

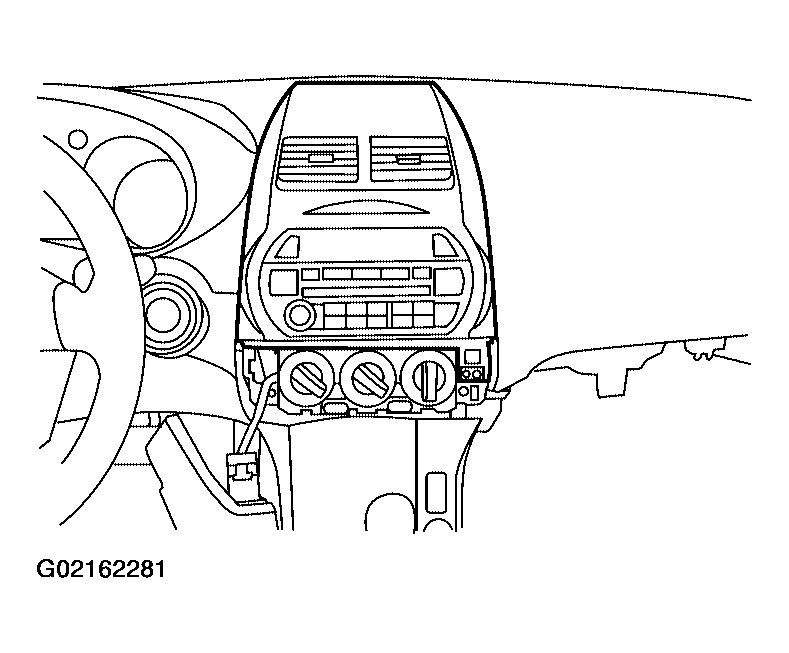

Fig 1: Identifying Cluster Lid D
Courtesy of NISSAN MOTOR CO., U.S.A.
