Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver lower instrument panel assembly. Refer to "DRIVER LOWER INSTRUMENT PANEL "
  2. Disconnect the air mix door motor connector.
  3. Remove the air mix door motor screws and then remove air mix door motor.

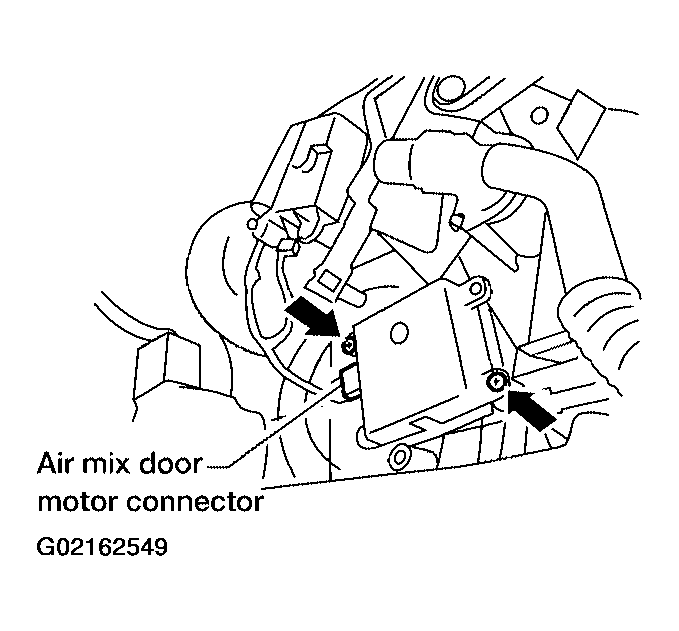

    Fig 1: Locating Air Mix Door Motor Screws
    G02162549Courtesy of NISSAN MOTOR CO., U.S.A.
