Combination Meter

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid A. Refer to , "CLUSTER LID A ".
  2. Remove screws using power tool.
    • Pull cluster lid A from opening.
    • Disconnect electrical connectors.
    • Remove combination meter.

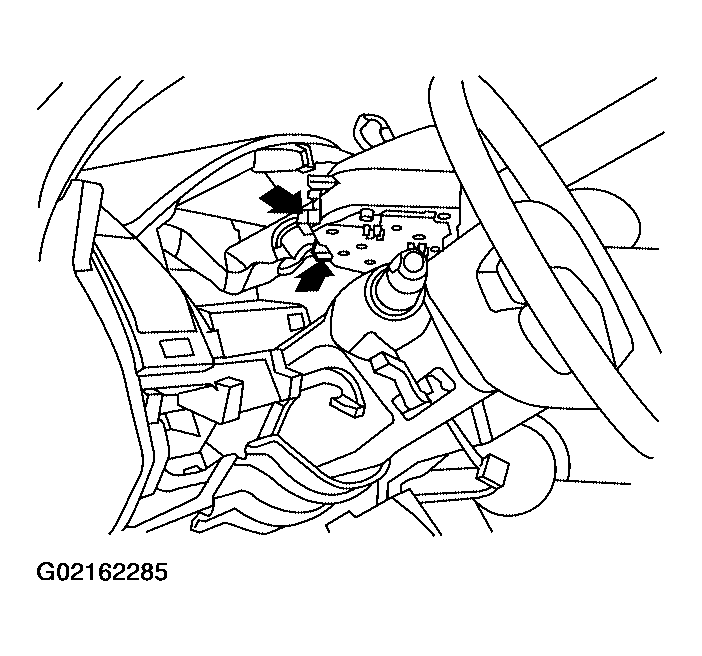

    Fig 1: Disconnecting Electrical Connectors
    G02162285Courtesy of NISSAN MOTOR CO., U.S.A.
