Wiring Diagram - AT - MAIN

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams referring to PG-POWER, see POWER DISTRIBUTION . For complete wiring diagrams, see SYSTEM WIRING DIAGRAMS .

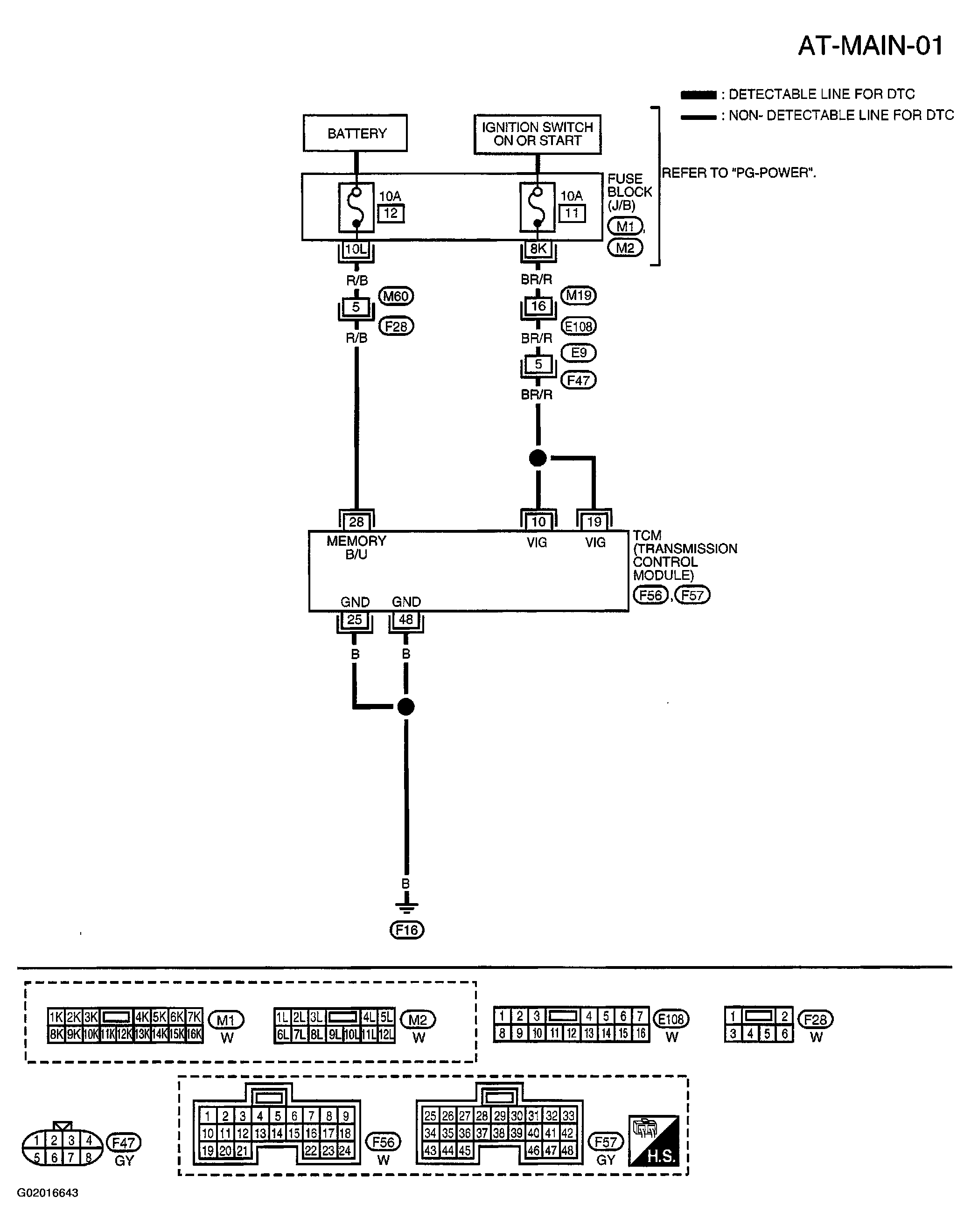

Fig 1: Automatic Transaxle Main Circuit And Identifying Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

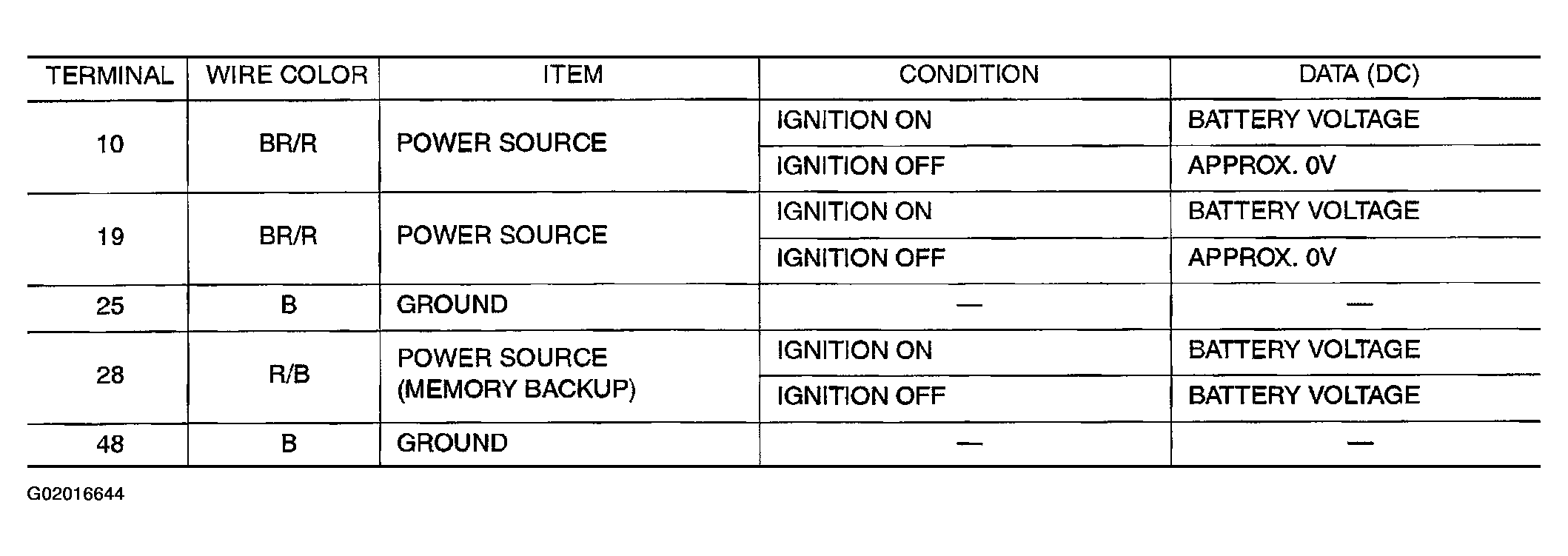

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)

Fig 2: Transmission Control Module Terminals Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
