Without Consult-II

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions: Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).
  3. Perform self-diagnosis. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

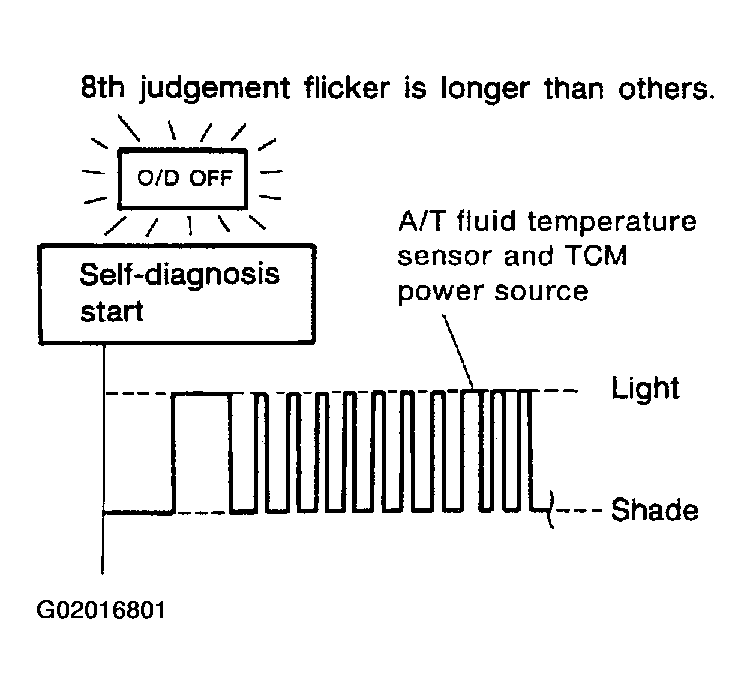

    Fig 1: DTC Confirmation Procedure Without CONSULT -II
    G02016801Courtesy of NISSAN MOTOR CO., U.S.A.
