Section 773 (Clutch System QG18DE): Piping: Installation
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

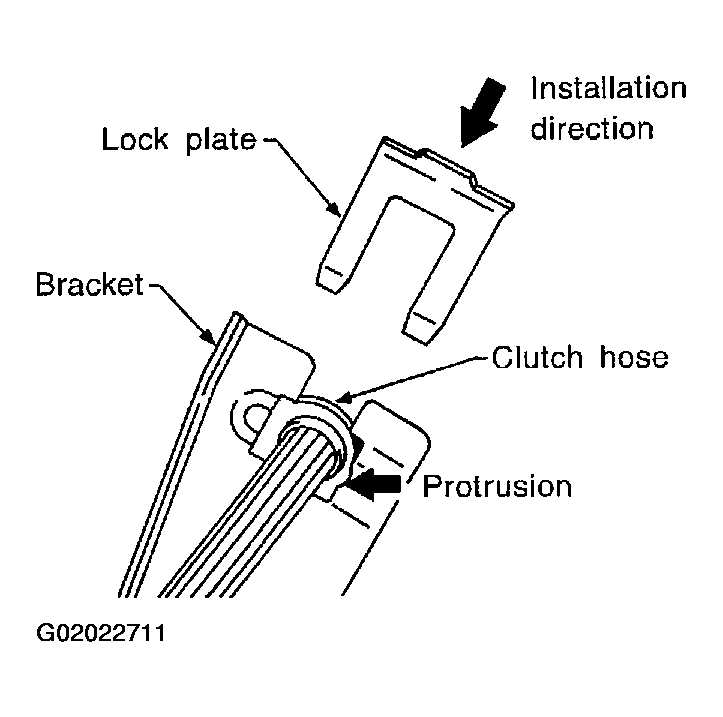

- When installing clutch hose to bracket, face lock plate in the correct direction as shown in Fig 1 to secure clutch hose.
- Tighten flare nut to the specified torque, using a flare nut wrench.
- : 15 - 18 N.m (1.5 - 1.8 kg.m, 11 - 13 ft-lb)
- Install clutch hose to operating cylinder, and tighten mounting bolt to the specified torque.
- : 17 - 19 N.m (1.7 - 2.0 kg.m, 13 - 14 ft-lb)
- Bleed air from the clutch piping. Refer to BLEEDING PROCEDURE .
- Install air cleaner and air duct.
CAUTION:
Install clutch hose without twisting or bending it.
CAUTION:
Be careful not to damage flare nut and clutch tube.
