Bleeding Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Bleed air from clutch operating cylinder according to the following procedure.
    NOTE: Carefully monitor fluid level at master cylinder during bleeding operation.
      CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.

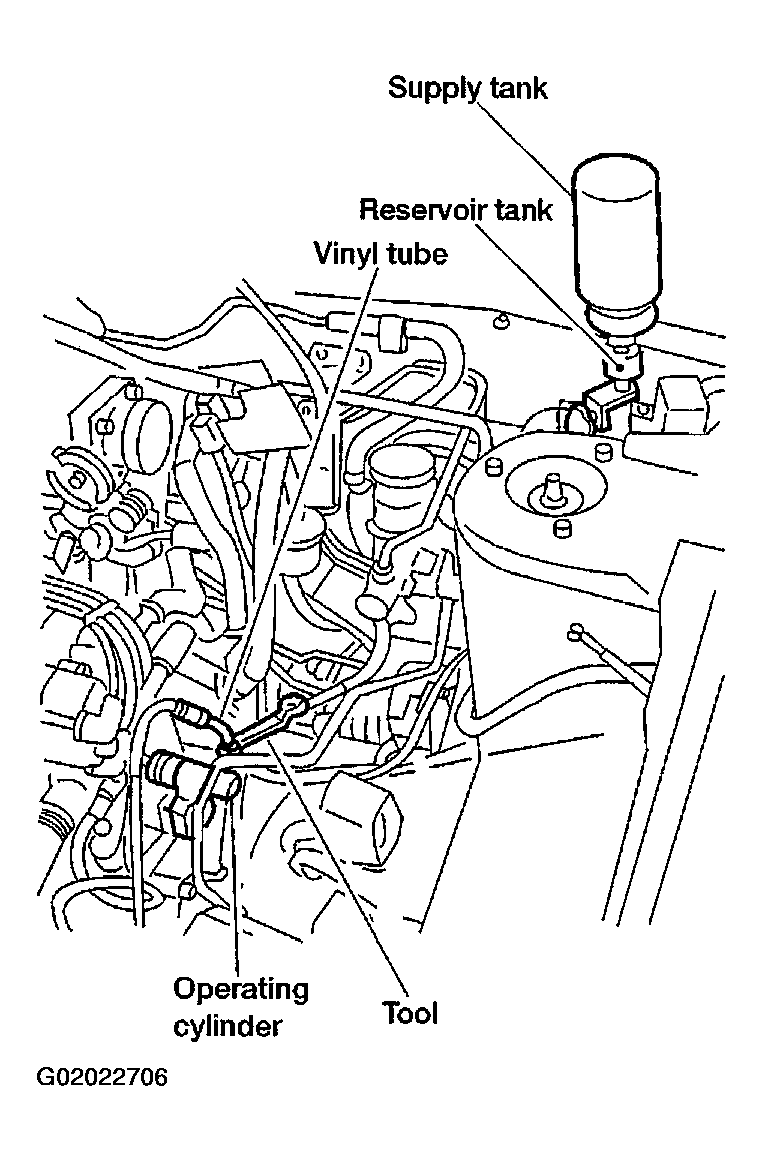

      Fig 1: Locating Components Used During Bleeding Procedure
      G02022706Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Top off reservoir with recommended brake fluid.
    2. Connect a transparent vinyl tube to air bleeder valve.
    3. Slowly depress the clutch pedal to its full stroke and release it completely. Repeat this operation several times at 2 to 3 seconds intervals.
    4. Open the air bleeder with the clutch pedal fully depressed.
    5. Close the air bleeder.
    6. Release the clutch pedal and wait at least 5 seconds.
    7. Repeat steps c through f above, then air bubbles will no longer appear at the damper in the brake fluid.
    8. Air bleeder valve tightening torque
      1. : 5.9 - 9.8 N-m (0.6 - 1.0 kg-m, 52 - 87 in-lb)
