Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install oil cooler (A/T model only).

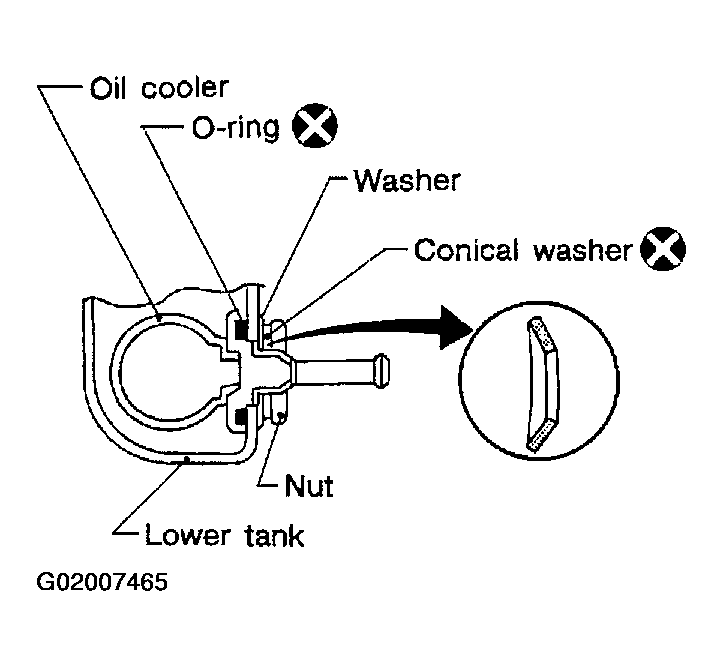

Fig 1: Installing Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.
- Pay attention to direction of conical washer.
Clean contact portion of tank.

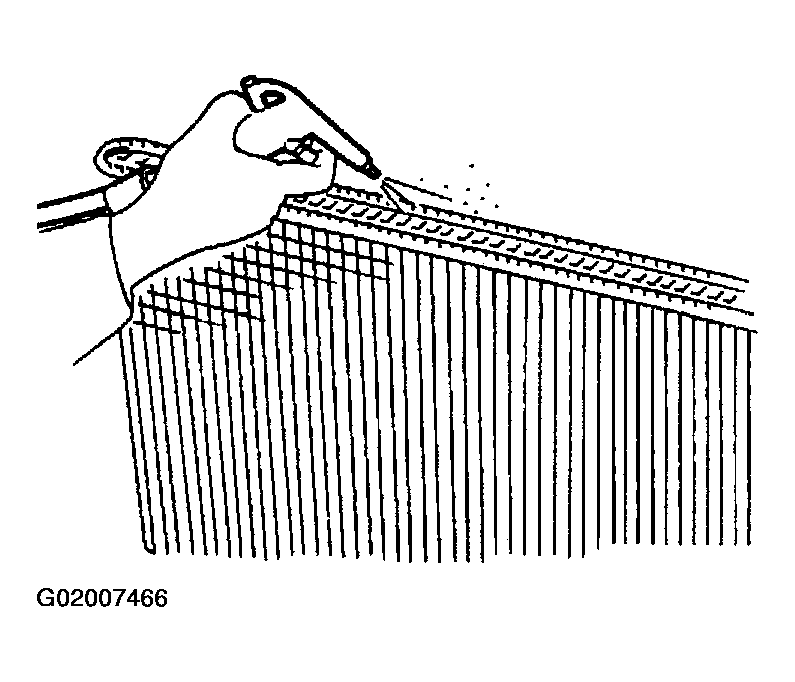

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sealing rubber.

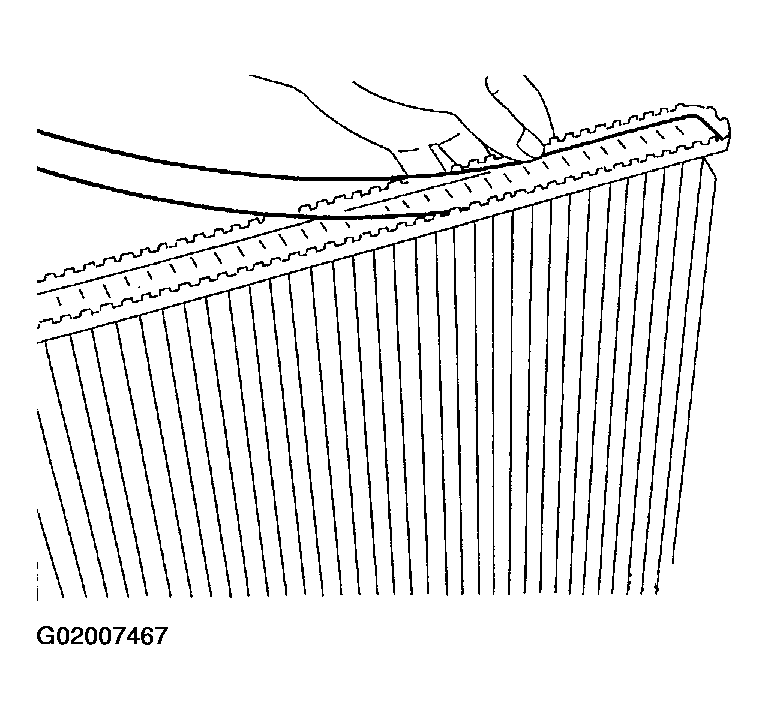

Fig 3: Installing Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.
- Push it in with fingers.
- Be careful not to twist sealing rubber.
Crimp tank in specified sequence with Tool.

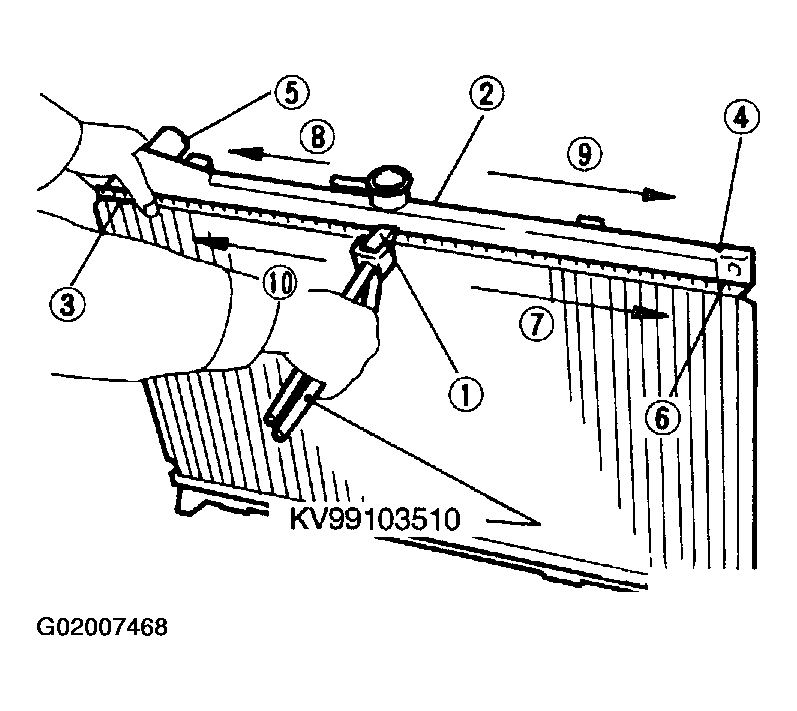

Fig 4: Crimping Sequence For Tank Edges
Courtesy of NISSAN MOTOR CO., U.S.A.

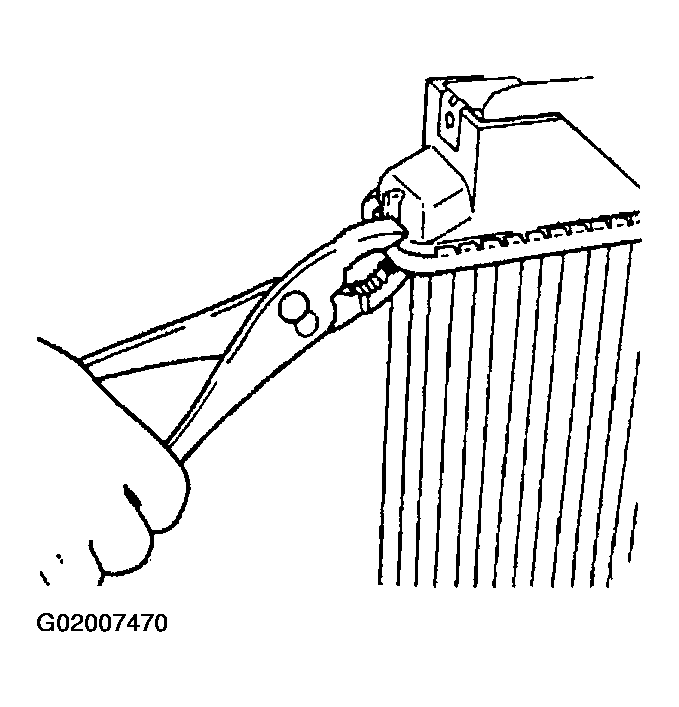

Fig 5: Crimping Tank Edges Using Radiator Pliers
Courtesy of NISSAN MOTOR CO., U.S.A.
- Use pliers in the locations where Tool cannot be used.
Make sure that the rim is completely crimped down.

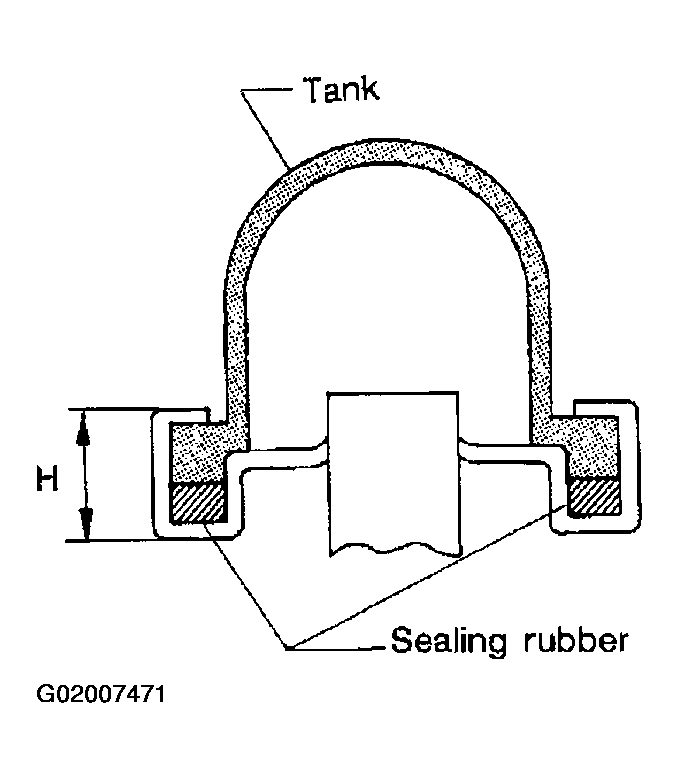

Fig 7: Confirming Correct Sealing Rubber Installation
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard height "H": 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.
- Refer to INSPECTION
