Disassembly and Assembly: Inspection

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressure with Tool.

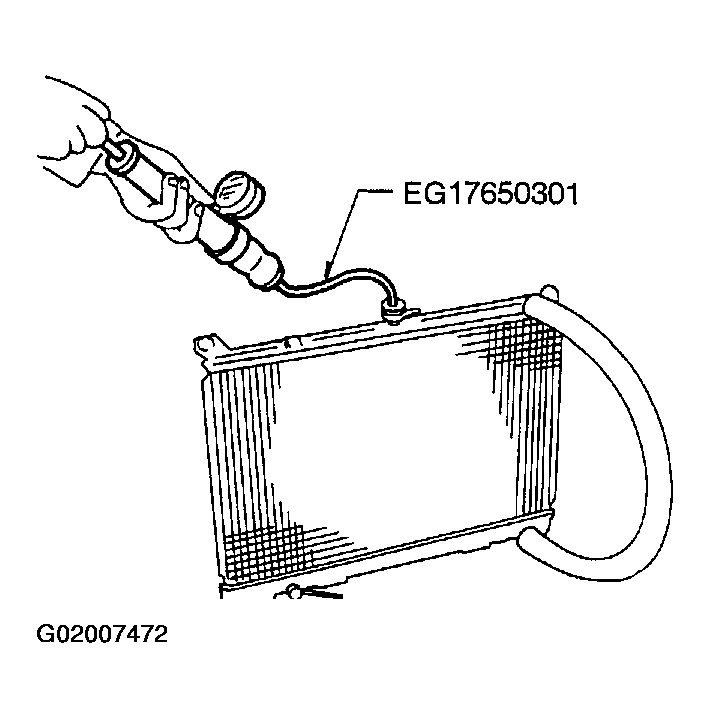

Fig 1: Pressure Testing Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified pressure value: 157 kPa (1.57 bar, 1.6 kg/cm ² , 23 psi)

WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp. Attach a hose to the oil cooler as well (A/T model only).
Check for leaks in dip tank.

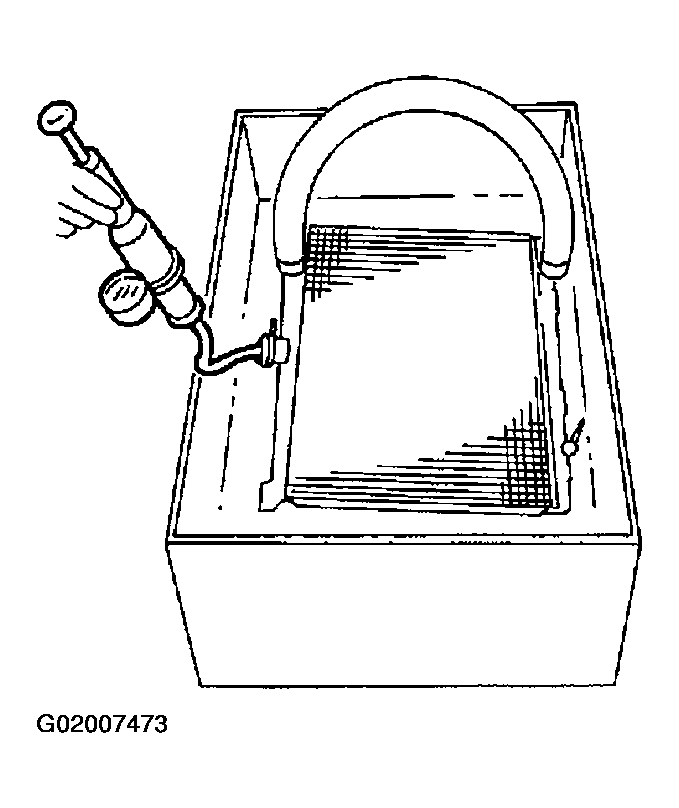

Fig 2: Checking For Leaks
Courtesy of NISSAN MOTOR CO., U.S.A.
