TCM Self-Diagnostic Procedure: Preparation

WARNING: This page is about a different car, the 2002 Infiniti QX4, 2001 Nissan Pathfinder, and 2001 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to OFF position.
  2. Connect the hand type vacuum pump to the throttle opener and apply -7.48 in. Hg vacuum. See Fig 1.
  3. Disconnect the throttle position switch harness connector.
  4. Turn ignition switch to ON position.
  5. Check continuity between closed throttle position switch harness connector terminals No. 5 and 6. See Fig 1. Continuity should exist. If continuity does not exist, check throttle opener and closed throttle position switch. Then increase vacuum until closed throttle position switch shows continuity.
  6. Go to JUDGEMENT PROCEDURE .

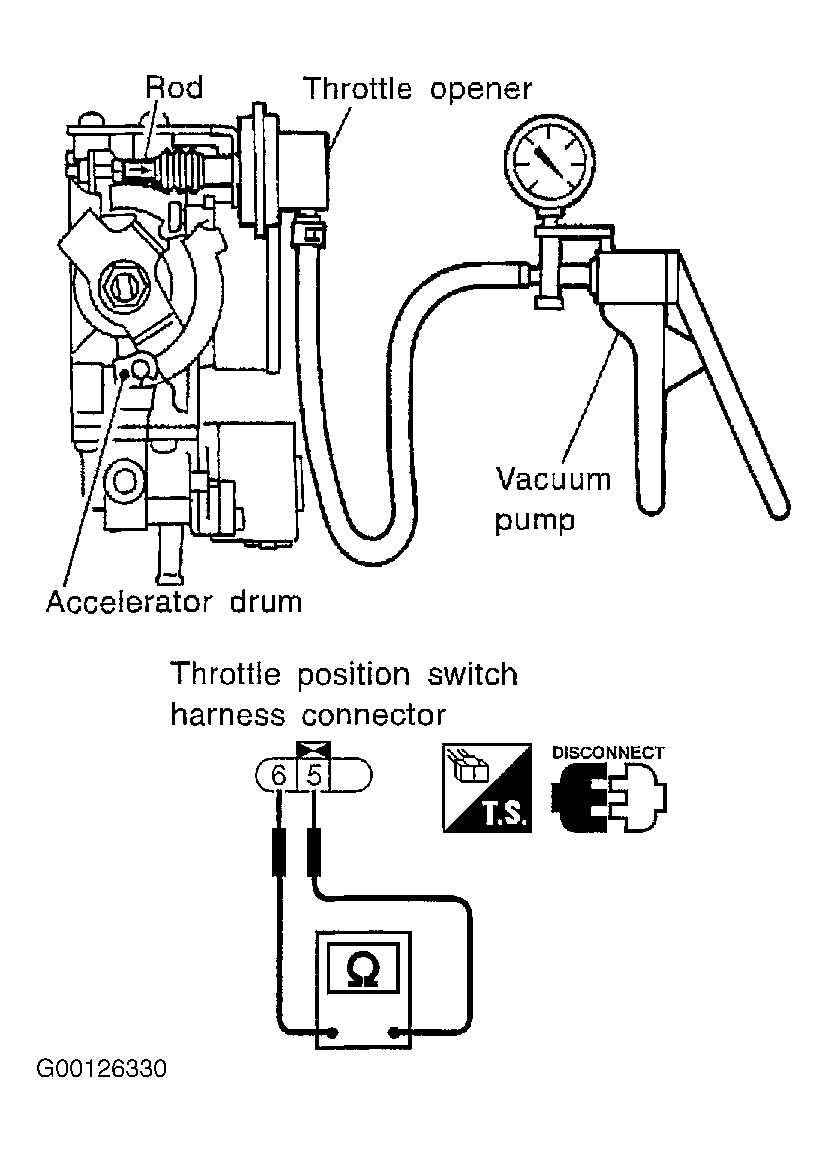

Fig 1: Checking Throttle Opener & Closed Throttle Position Switch
G00126330Courtesy of NISSAN MOTOR CO., U.S.A.
