Section 59 (Automatic Transmission Diagnosis - Re4F03 Series): Identification

WARNING: This page is about a different car, the 2002 Nissan Sentra, 2002 Infiniti G20, 2001 Nissan Sentra, and 2001 Infiniti G20. However, it is still accessible from the selected car via links, so may be relevant.

Transaxle model is identified on vehicle identification plate in driver's door frame area. Transaxle number is located on transaxle governor cap. Governor cap is still a component of this transaxle, although governor is no longer used. See Fig 1.

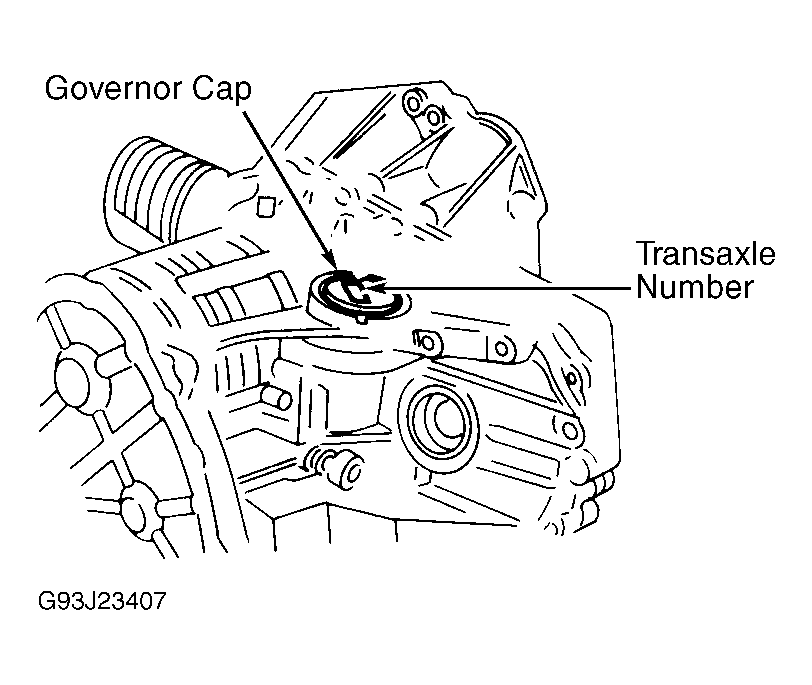

Fig 1: Locating Automatic Transaxle Model Number
G93J23407Courtesy of NISSAN MOTOR CO., U.S.A.
