Terminal Cord Assembly Sub-Harness: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Park/Neutral Position (PNP) Switch. Refer to "Park/Neutral Position (PNP) Switch Adjustment ".
  2. Remove the side cover. Refer to "Transaxle Side Cover ".
  3. Disconnect the terminal cord assembly sub-harness and separate the sub-harness from the brackets.
  4. Disconnect the terminal cord assembly sub-harness connectors from the valve body assembly and remove the harness.

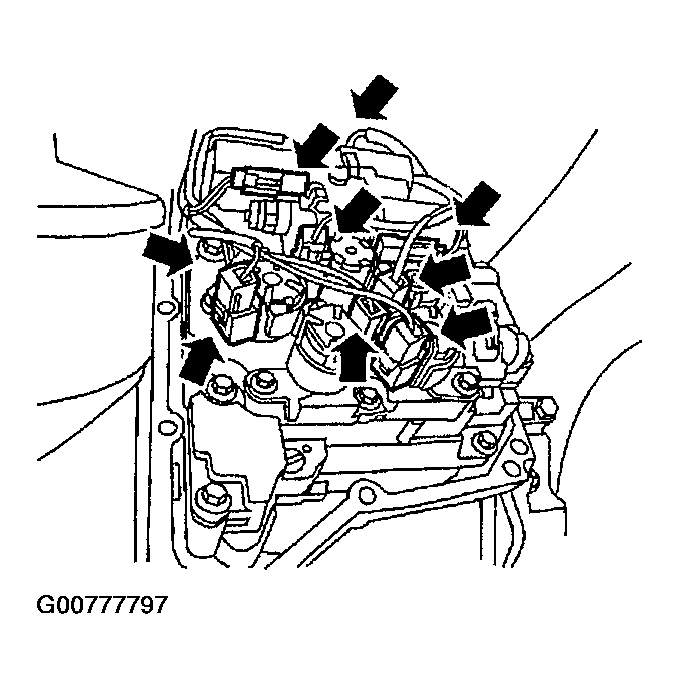

Fig 1: Identifying Terminal Cord Assembly Sub-Harness Connectors
G00777797Courtesy of NISSAN MOTOR CO., U.S.A.
